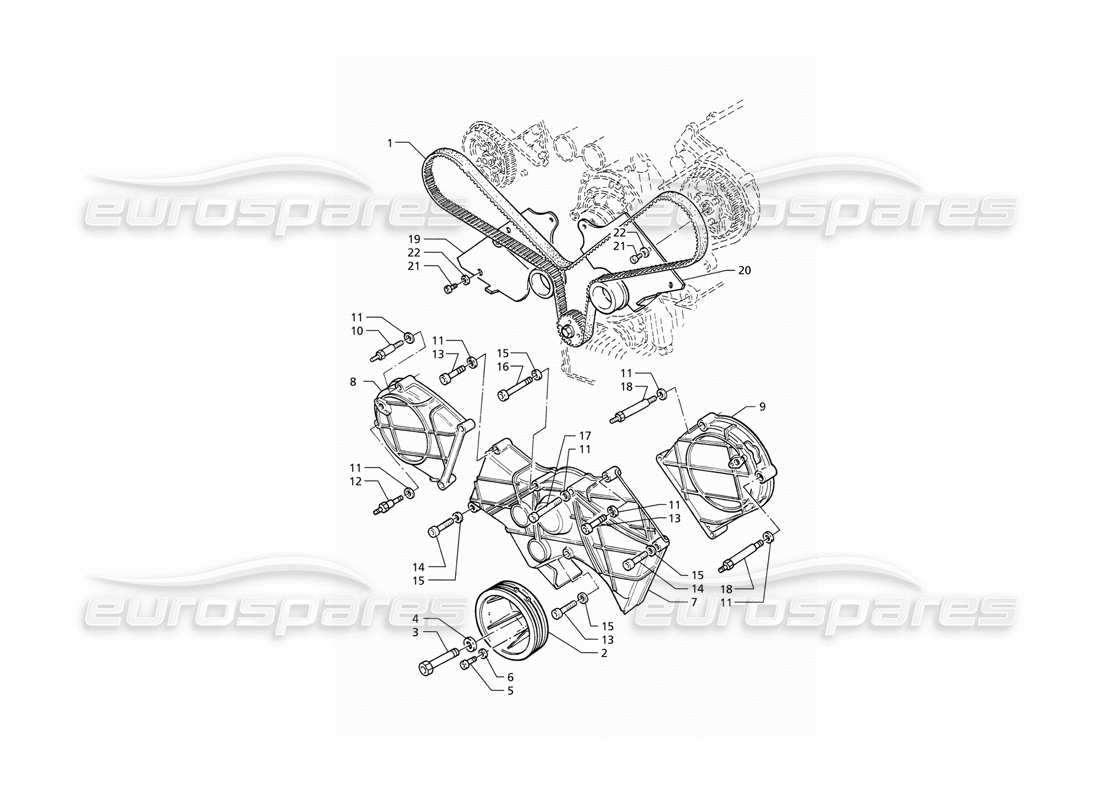

Maserati QTP V6 (1996) Timing Control and Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 97776

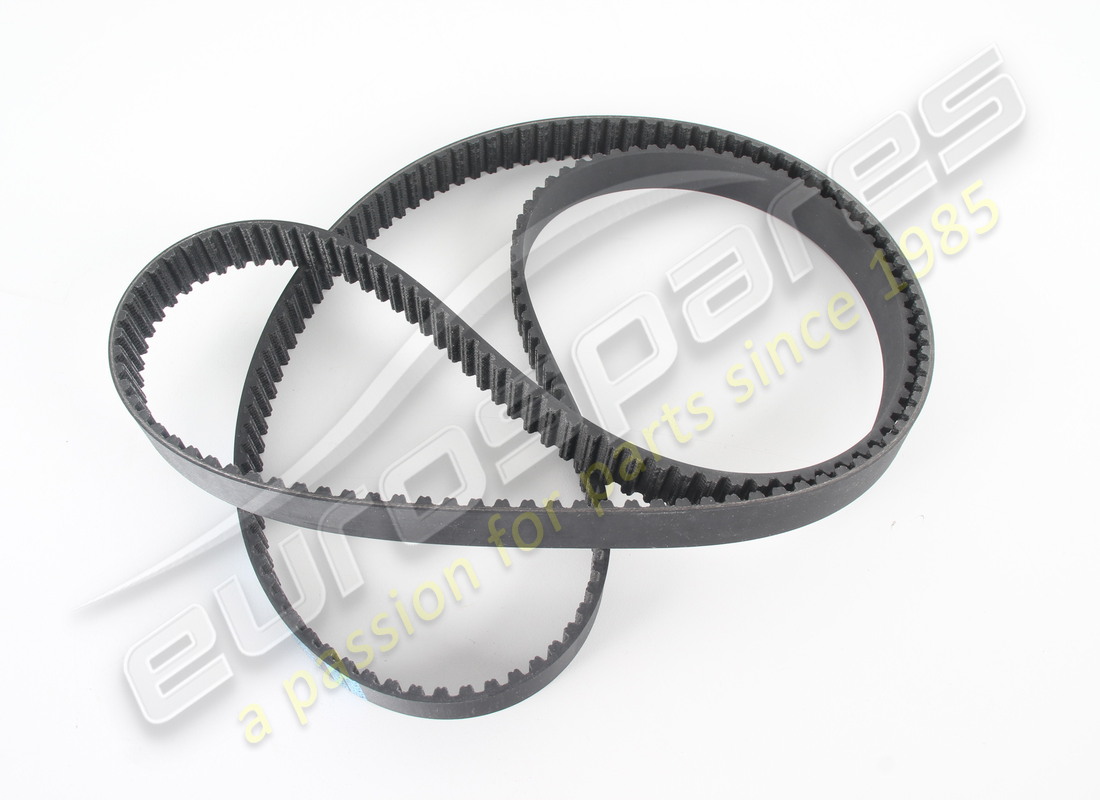

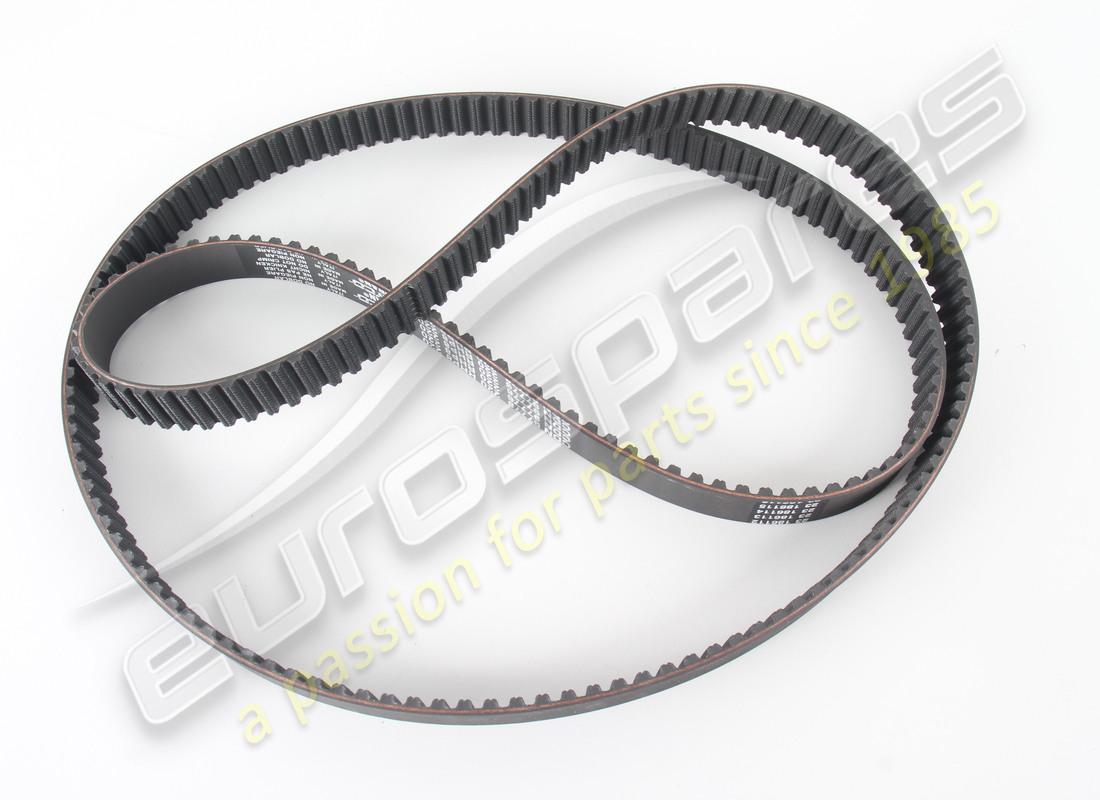

                                            TIMING BELT
                                            (valid for 2.0 & 2.8 engine)
                                            from £29.95
                                            from £29.95
                                            This part replaces part number 311053349
                                            # 002
                                            MPN: 571023801
                                            CENTRE PULLEY
                                            from £1,264.16
                                            from £1,264.16
                                            # 004
                                            MPN: 311020308

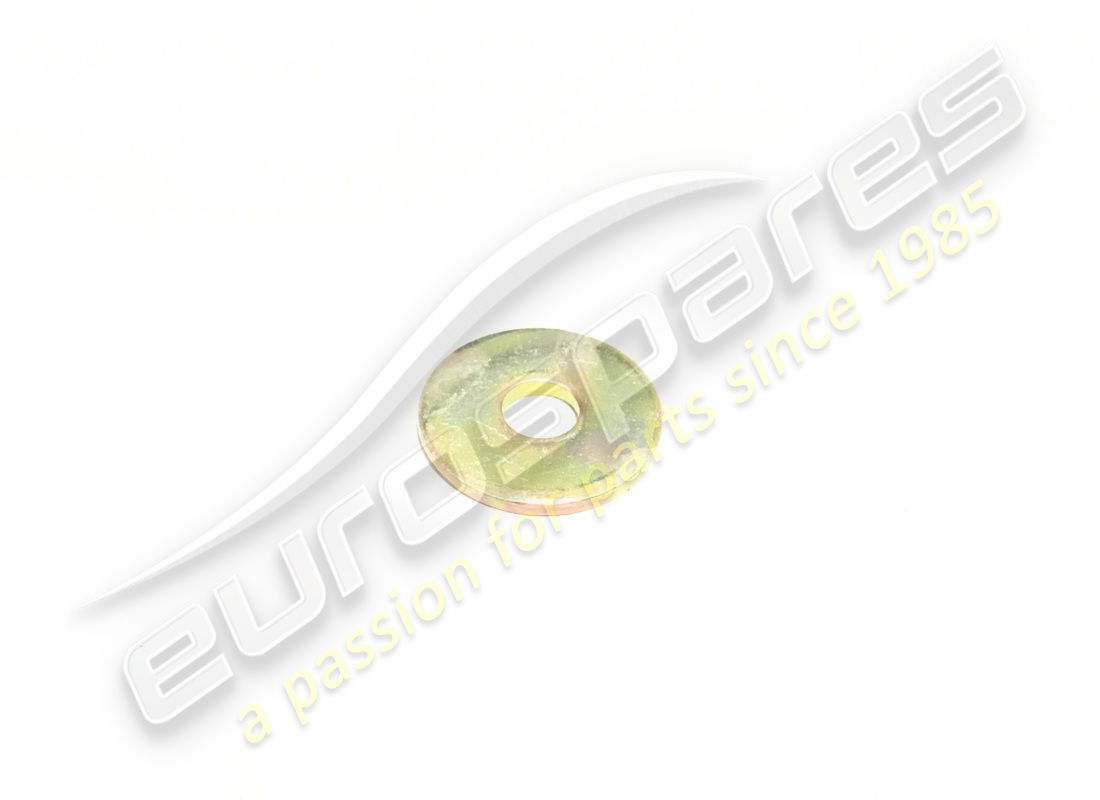

                                            WASHER
                                            from £13.13
                                            from £13.13
                                            # 006
                                            MPN: 312220411
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            # 007
                                            MPN: 571038700
                                            BELT CENTRE COVER
                                            from £332.64
                                            from £332.64
                                            # 008
                                            MPN: 571002600

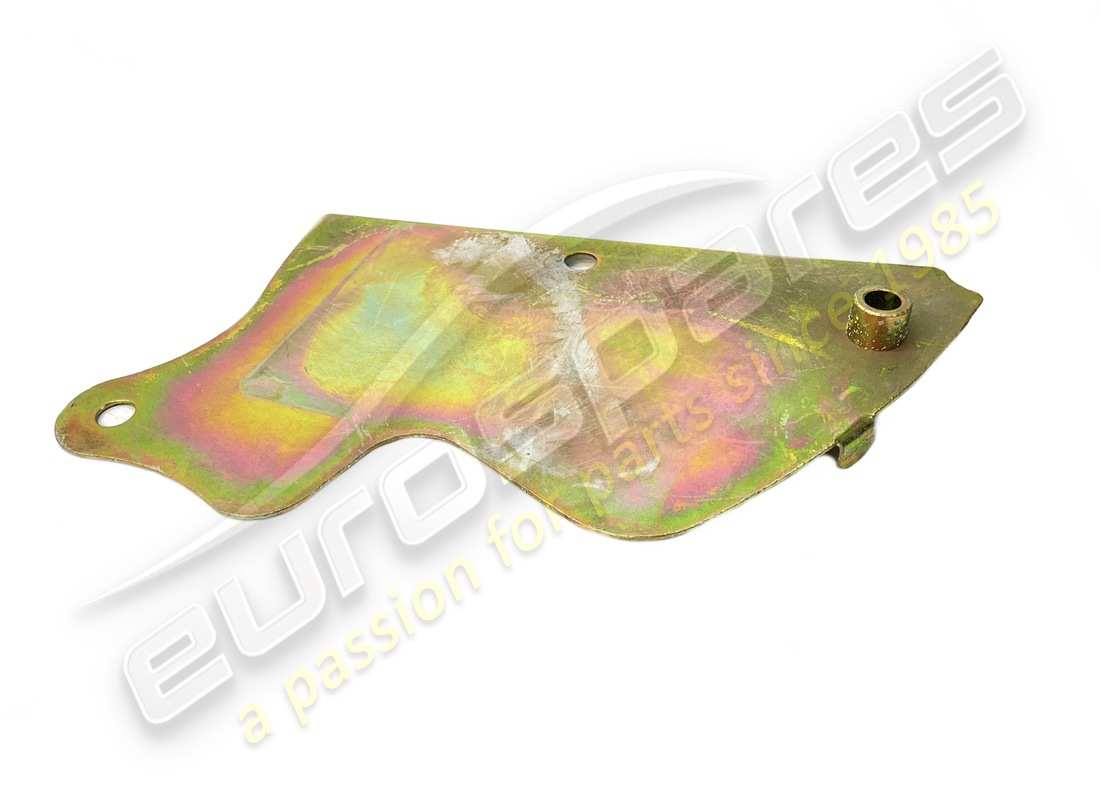

                                            BELT LH COVER
                                            from £18.83
                                            from £18.83
                                            # 009
                                            MPN: 571007300
                                            BELT RH COVER
                                            from £34.49
                                            from £34.49
                                            # 010
                                            MPN: 573003300
                                            SCREW
                                            from £35.85
                                            from £35.85
                                            # 011
                                            MPN: 95564
                                            WASHER
                                            from £1.31
                                            from £1.31
                                            # 012
                                            MPN: 571003300
                                            SCREW
                                            from £4.64
                                            from £4.64
                                            # 013
                                            MPN: 95988
                                            ALLEN SCREW L=40 MM
                                            # 016
                                            MPN: 14304821
                                            ALLEN SCREW L=55 MM
                                            from £0.53
                                            from £0.53
                                            # 017
                                            MPN: 312220323
                                            ALLEN SCREW L=60 MM
                                            # 018
                                            MPN: 571003200
                                            SCREW
                                            from £6.41
                                            from £6.41
                                            # 019
                                            MPN: 571036000
                                            RH PANEL
                                            from £8.20
                                            from £8.20
                                            # 020
                                            MPN: 571035900
                                            LH PANEL
                                            from £9.66
                                            from £9.66
                                            # 021
                                            MPN: 108006014
                                            ALLEN SCREW L=14 MM
                                            # 022
                                            MPN: 311620303
                                            WASHER
                                            from £1.08
                                            from £1.08
                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
