009.1 - Engine Oil Cooling

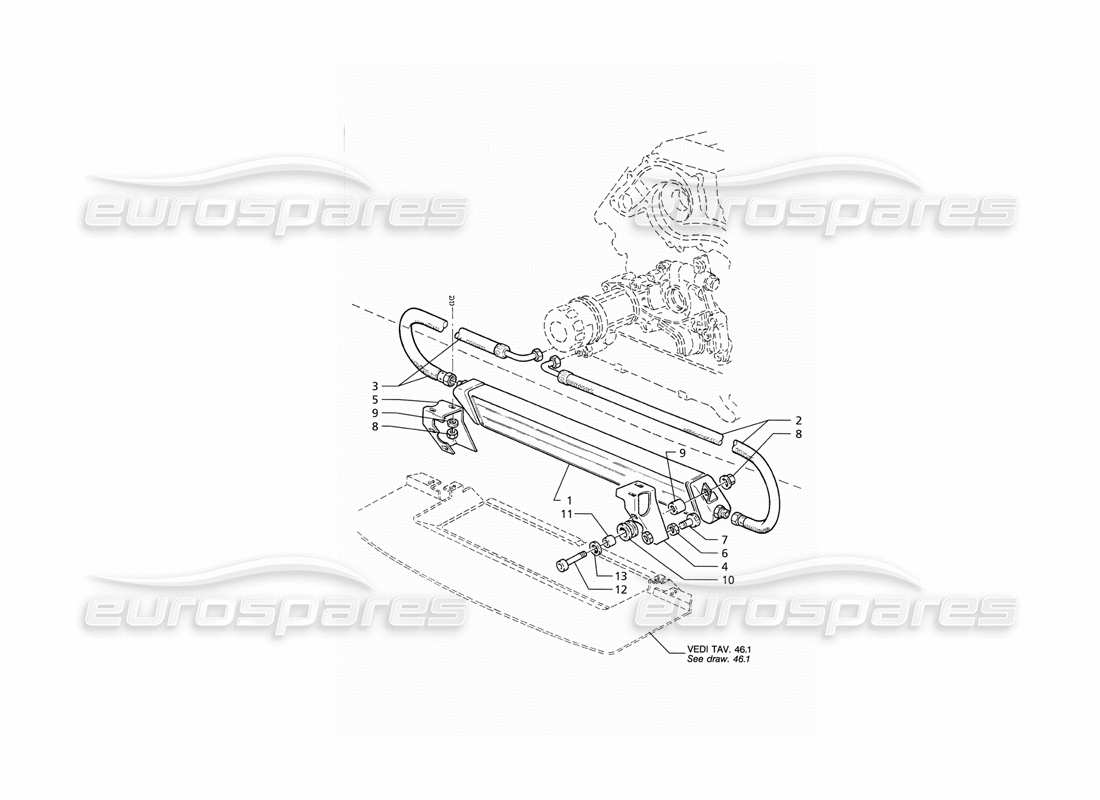

Maserati QTP V6 (1996) Engine Oil Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 362802108
                                RADIATOR
                                from £346.24
                                from £346.24
                                # 002
                                MPN: 362802104
                                DELIVERY TUBE
                                from £134.27
                                from £134.27
                                # 003
                                MPN: 362802105
                                RETURN TUBE
                                from £76.86
                                from £76.86
                                # 004
                                MPN: 362802107
                                LH BRACKET
                                from £141.47
                                from £141.47
                                This part replaces part number 362802301
                                # 005
                                MPN: 362802302
                                RH BRACKET
                                from £18.08
                                from £18.08
                                # 007
                                MPN: 364700180
                                VIBRATION BUFFER
                                from £2.83
                                from £2.83

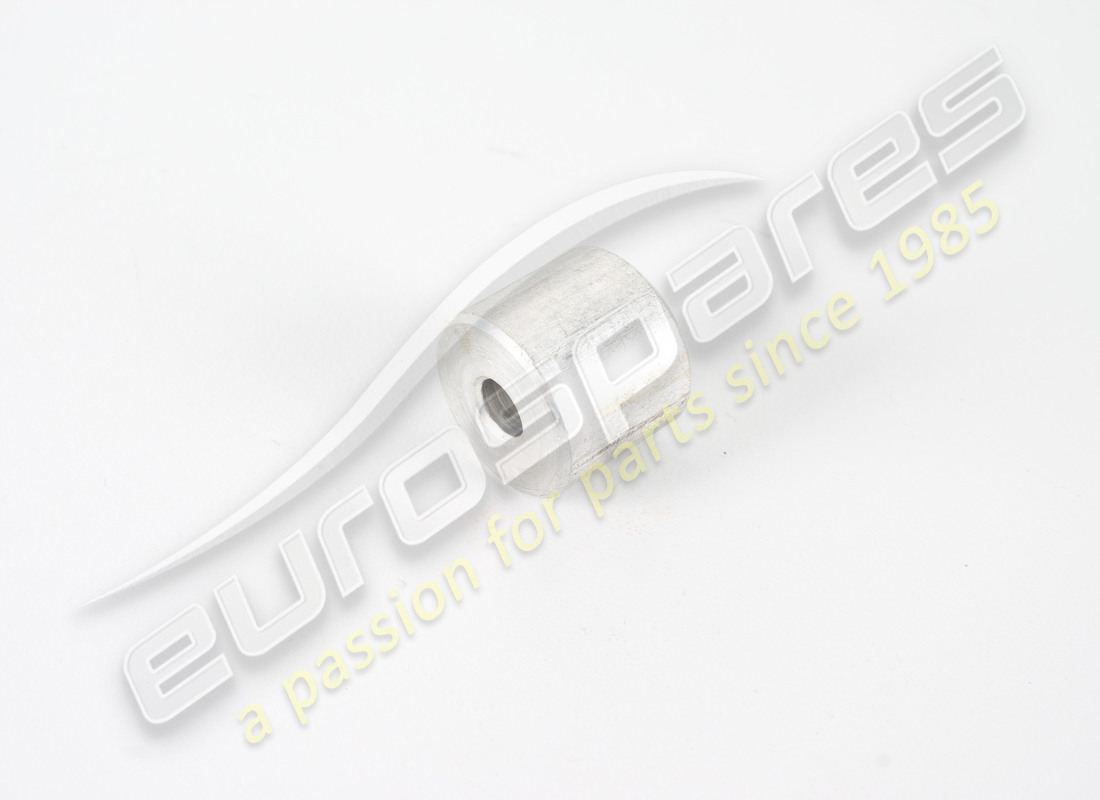

                                # 009
                                MPN: 98074
                                SPACER
                                from £2.63
                                from £2.63
                                # 010
                                MPN: 315520375
                                WIRE INLET
                                Supersession
                                Supersession
                                # 011
                                MPN: 397850624
                                BUSH
                                from £2.39
                                from £2.39
