maserati qtp v6 (1996) vacuum system (lhd) parts diagram

011GS - Vacuum System (LHD)

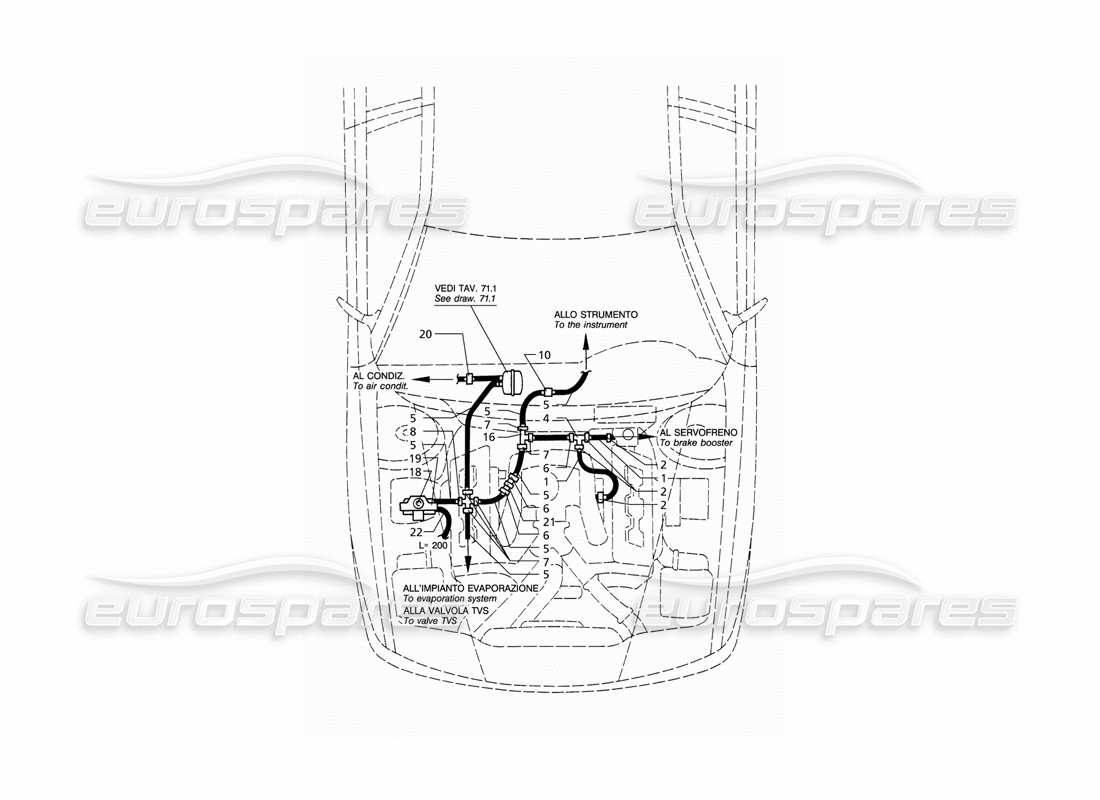

Maserati QTP V6 (1996) Vacuum System (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 95742
                          SLEEVE
                          - Section in metres - order minimum amount of 10 m or multiples
                          from £10.43
                          from £10.43
                          This part replaces part number 312048302 - and 5 more. Click to view details
                          # 002
                          MPN: 312020404
                          CLAMP
                          from £4.17
                          from £4.17
                          # 004
                          MPN: 312020337
                          THREE WAY UNION
                          from £18.25
                          from £18.25
                          # 005
                          MPN: 300100803
                          SLEEVE
                          - Section in metres - order minimum amount of 10 m or multiples
                          from £54.96
                          from £54.96
                          This part replaces part number 318720329
                          # 006
                          MPN: 312050310
                          CLAMP
                          from £1.08
                          from £1.08
                          # 008
                          MPN: 312030422
                          FOUR WAY UNION
                          from £0.99
                          from £0.99
                          # 010
                          MPN: 313620303
                          UNION
                          from £0.78
                          from £0.78
                          # 016
                          MPN: 312020336
                          THREE WAY UNION
                          from £0.85
                          from £0.85
                          # 018
                          MPN: 325520345
                          GROMMET
                          from £1.08
                          from £1.08
                          # 019
                          MPN: 325520172
                          VACUUM PUMP
                          from £99.75
                          from £99.75
                          # 020
                          MPN: 165010100
                          WIRE INLET
                          from £0.99
                          from £0.99
                          # 021
                          MPN: 315520169
                          CHECK VALVE
                          from £6.98
                          from £6.98
                          # 022
                          MPN: 325520348
                          SLEEVE L = 200 MM
                          from £0.56
                          from £0.56
