012.1GD - Engine Cooling and Cabin Heating System (RHD)

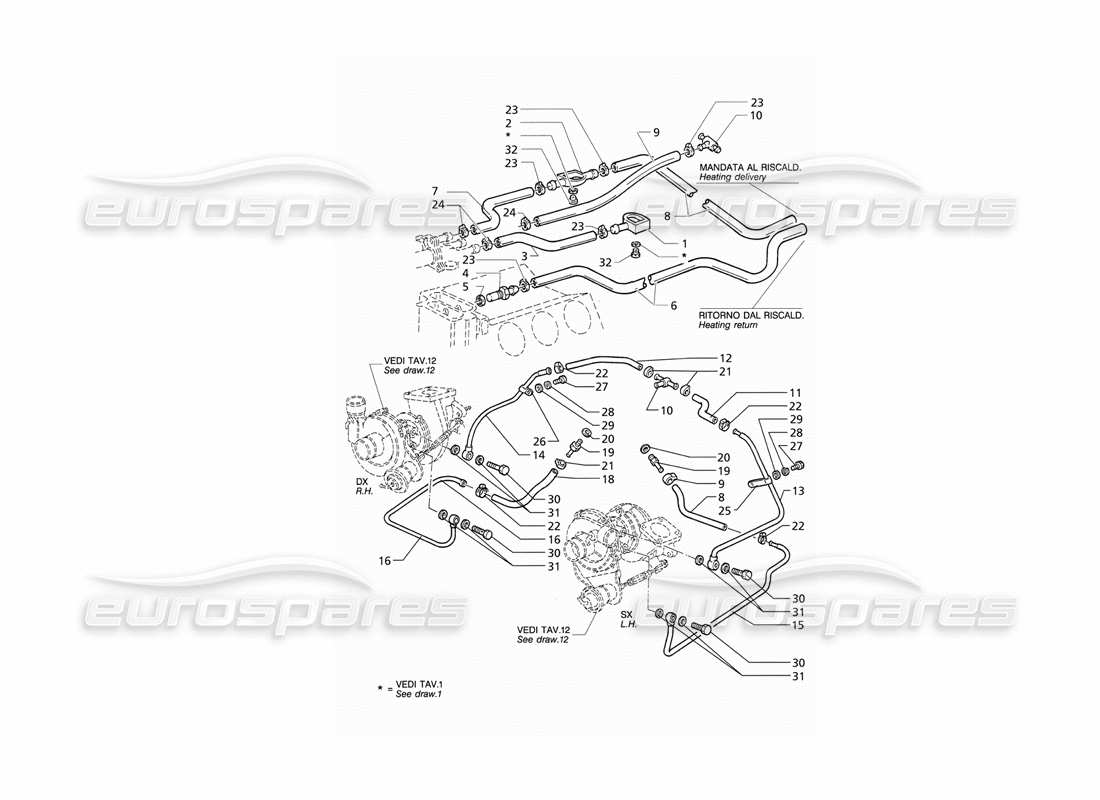

Maserati QTP V6 (1996) Engine Cooling and Cabin Heating System (RHD) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 470009900
UNION
from £9.74
from £9.74
# 002
MPN: 310620360
UNION
# 003
MPN: 315520352
SLEEVE
from £33.75
from £33.75
# 004
MPN: 571018400
UNION ON BLOCK
from £6.82
from £6.82
# 005
MPN: 55138
GASKET
Supersession
Supersession
# 006
MPN: 577042500
RETURN SLEEVE
from £9.74
from £9.74
# 007
MPN: 312020517
DELIVERY SLEEVE
Supersession
Supersession
# 008
MPN: 580042200
DELIVERY SLEEVE
from £62.46
from £62.46
This part replaces part number 312020464
# 009
MPN: 477369660
RETURN FROM TURBO MANIFOLD
from £26.71
from £26.71
# 010
MPN: 312020407
THREE WAY UNION
from £66.44
from £66.44
# 011
MPN: 470369200
LH RETURN SLEEVE
from £19.76
from £19.76
This part replaces part number 312020423 - and 1 more. Click to view details
# 012
MPN: 312020422
RH RETURN SLEEVE
# 013
MPN: 342000122
LH RETURN TUBE
# 014
MPN: 342000124
RH RETURN TUBE
# 015
MPN: 312020137
LH DELIVERY TUBE
# 016
MPN: 312020138
RH DELIVERY TUBE
Supersession
Supersession
# 017
MPN: 452369701
LH DELIVERY SLEEVE
from £13.14
from £13.14
# 018
MPN: 452369601
RH DELIVERY SLEEVE
from £35.94
from £35.94
# 019
MPN: 312020428
UNION
# 020
MPN: 319220424
GASKET
from £1.05
from £1.05
# 021
MPN: 312020404
CLAMP D. 14 22
from £4.21
from £4.21
# 022
MPN: 312020443
CLAMP D. 18
# 023
MPN: 312020410
CLAMP D. 17 25
from £1.95
from £1.95
# 024
MPN: 312420317
CLAMP D. 22 30
from £1.56
from £1.56
# 025
MPN: 312020432
LH SHAPED CLAMP
from £1.95
from £1.95
# 026
MPN: 312020433
RH SHAPED CLAMP
from £1.75
from £1.75
# 027
MPN: 108006012
SCREW
from £0.54
from £0.54
# 028
MPN: 138410060
RETAINING WASHER
# 029
MPN: 312220411
FLAT WASHER
from £0.47
from £0.47
# 030
MPN: 312020429
UNION SCREW
# 031
MPN: 312020430
GASKET
(minimum order quantity = 10)
from £0.74
from £0.74
# 032
MPN: 108006030
SCREW
