maserati qtp v6 (1996) oil vapour recovery parts diagram

014.1 - Oil Vapour Recovery

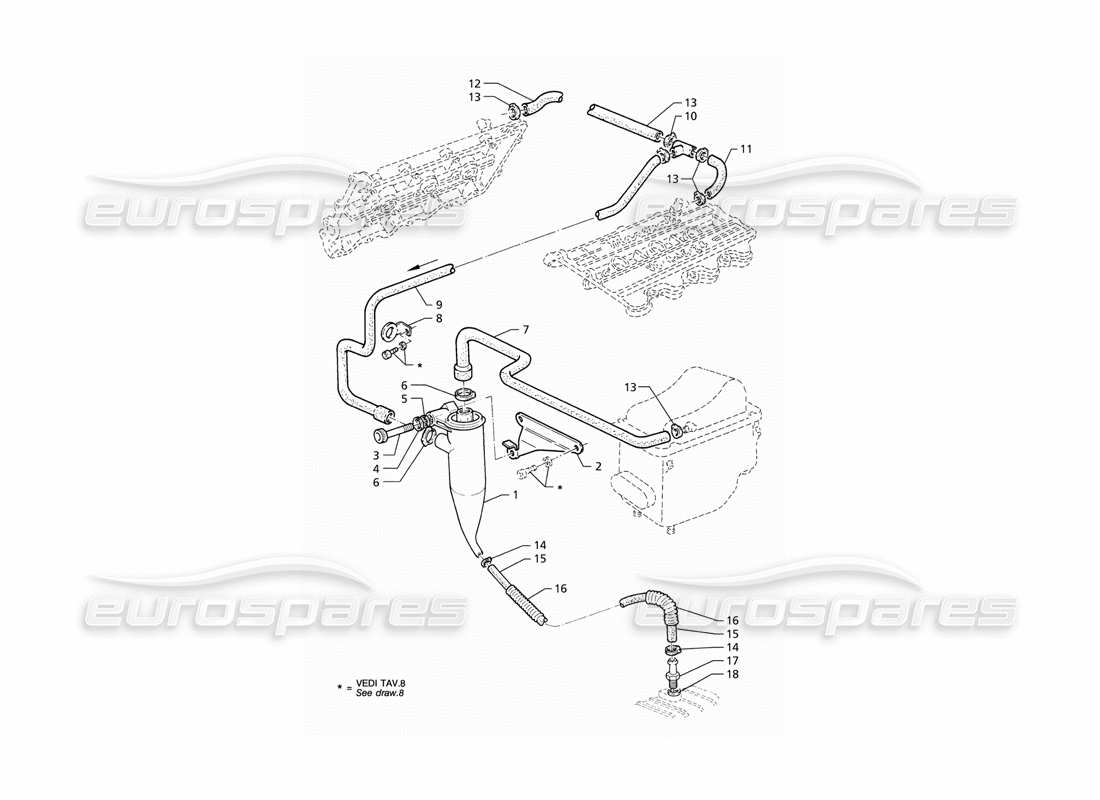

Maserati QTP V6 (1996) Oil Vapour Recovery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 372431100
                                  oil separator
                                  from £24.73
                                  from £24.73

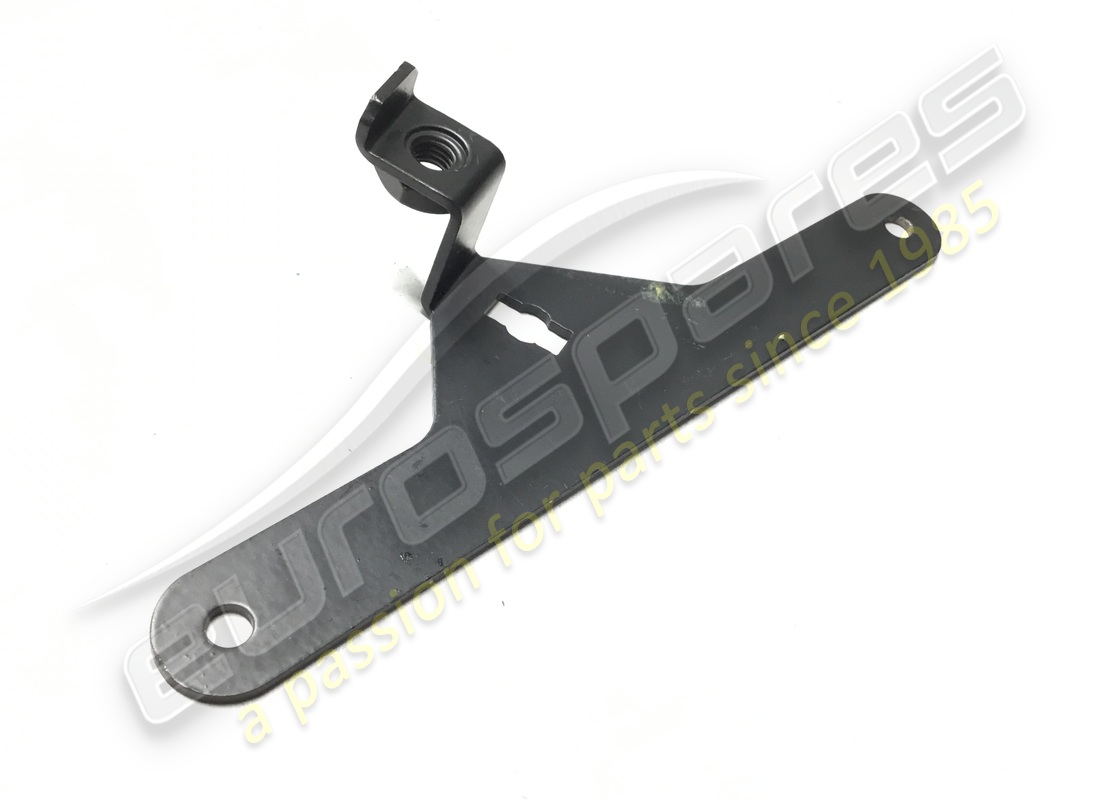

                                  # 002
                                  MPN: 372401300
                                  SUPPORT
                                  from £7.06
                                  from £7.06
                                  # 003
                                  MPN: 95679
                                  ALLEN SCREW
                                  # 005
                                  MPN: 87234
                                  FLAT WASHER
                                  Supersession
                                  Supersession
                                  # 006
                                  MPN: 186402028
                                  CLAMP Ø 18 28
                                  from £1.55
                                  from £1.55
                                  # 007
                                  MPN: 372431307
                                  FILTER SEPARATOR CONN. TUBE
                                  from £9.58
                                  from £9.58
                                  # 008
                                  MPN: 573009400
                                  TUBE RETAINING CLAMP
                                  from £8.63
                                  from £8.63
                                  # 009
                                  MPN: 573042301
                                  BREATHER TUBE
                                  from £10.36
                                  from £10.36
                                  # 010
                                  MPN: 97594
                                  THREE WAY UNION
                                  from £2.31
                                  from £2.31
                                  # 011
                                  MPN: 573003500
                                  LH SLEEVE
                                  from £11.42
                                  from £11.42
                                  # 012
                                  MPN: 573003400
                                  RH SLEEVE
                                  from £10.63
                                  from £10.63
                                  # 013
                                  MPN: 312030442
                                  CLIC CLAMP
                                  Supersession
                                  Supersession
                                  # 014
                                  MPN: 186402024
                                  CLAMP Ø 14 24
                                  Supersession
                                  Supersession
                                  # 015
                                  MPN: 318732327
                                  SLEEVE
                                  - Section in metres order minimum amount of 1 m
                                  # 016
                                  MPN: 318720333
                                  CORRUGATED TUBE
                                  - Section in metres order minimum amount of 1 m
                                  from £5.10
                                  from £5.10
                                  # 017
                                  MPN: 97980
                                  UNION ON BLOCK
                                  Supersession
                                  Supersession
                                  # 018
                                  MPN: 47207
                                  GASKET
                                  Supersession
                                  Supersession
