015.1 - Heat Exchanger Pipes RH Side

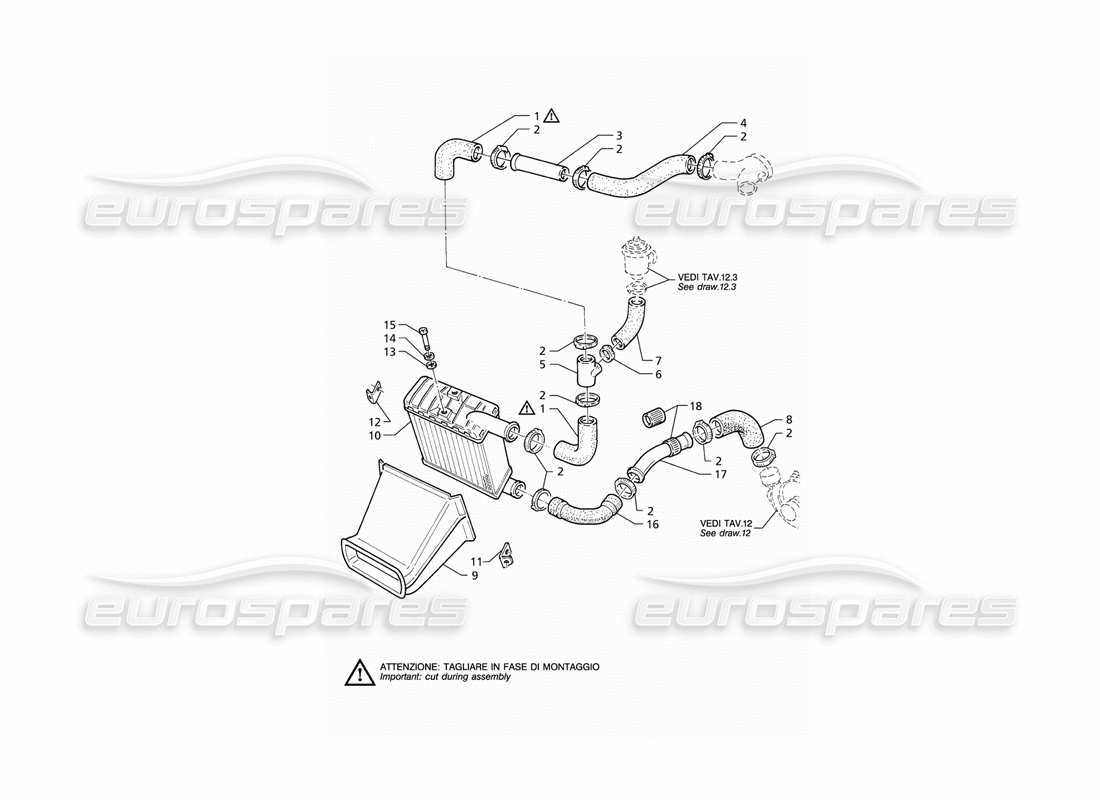

Maserati QTP V6 (1996) Heat Exchanger Pipes R.H. Side Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 573361600
                                    SLEEVE
                                    - Single piece to be cut during assembly
                                    from £60.92
                                    from £60.92
                                    INTERCOOLER HOSE Genuine Maserati Part - New In stock
                                    # 002
                                    MPN: 312420106
                                    CLAMP
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 004
                                    MPN: 573065100
                                    SLEEVE
                                    from £34.97
                                    from £34.97
                                    RH SLEEVE Genuine Maserati Part - New (to order)
                                    # 005
                                    MPN: 577057000
                                    THREE WAY UNION
                                    from £70.21
                                    from £70.21
                                    UNION Genuine Maserati Part - New In stock
                                    # 006
                                    MPN: 186402028
                                    CLAMP
                                    from £1.55
                                    from £1.55
                                    CLAMP Genuine Maserati Part - New (to order)
                                    # 007
                                    MPN: 96033
                                    SLEEVE
                                    from £10.00
                                    from £10.00
                                    MANICOTTO INF.POP-OFF (CURVA Genuine Maserati Part - New In stock
                                    # 008
                                    MPN: 578363800
                                    SLEEVE
                                    from £146.59
                                    from £146.59
                                    This part replaces part number 322460310 - and 1 more. Click to view details
                                    SLEEVE FROM TURBO TO INTERCOOLER Genuine Maserati Part - New (to order)
                                    SLEEVE FROM TURBO TO INTERCOOLER Genuine Maserati Part - Used In stock
                                    # 009
                                    MPN: 372000258
                                    RH AIR DEFLECTOR
                                    from £59.03
                                    from £59.03
                                    AIR DUCT Genuine Maserati Part - New (to order)
                                    # 010
                                    MPN: 573360500
                                    Intercooler
                                    from £126.00
                                    from £126.00
                                    AIR AIR EXCHANGER Genuine Maserati Part - New (to order)
                                    AIR AIR EXCHANGER Genuine Maserati Part - Used In stock
                                    # 011
                                    MPN: 372000610
                                    AIR DEFLECTOR SEC. BRACKET
                                    from £1.63
                                    from £1.63
                                    INTERCOOLER PLATE Genuine Maserati Part - New (to order)
                                    # 012
                                    MPN: 372000612
                                    AIR DEFLECTOR SEC. BRACKET
                                    from £1.77
                                    from £1.77
                                    INTERCOOLER PLATE Genuine Maserati Part - New (to order)
                                    # 016
                                    MPN: 573363500
                                    SLEEVE
                                    from £137.07
                                    from £137.07
                                    SLEEVE FROM STEEL PIPE TO INTERC. Genuine Maserati Part - New (to order)
                                    # 018
                                    MPN: 573365700
                                    PROTECTIVE SLEEVE
                                    from £2.94
                                    from £2.94
                                    MANIC SU TUBO MET DA TURBO A Genuine Maserati Part - New (to order)
