maserati qtp v6 (1996) ignition system (rhd) parts diagram

016GD - Ignition System (RHD)

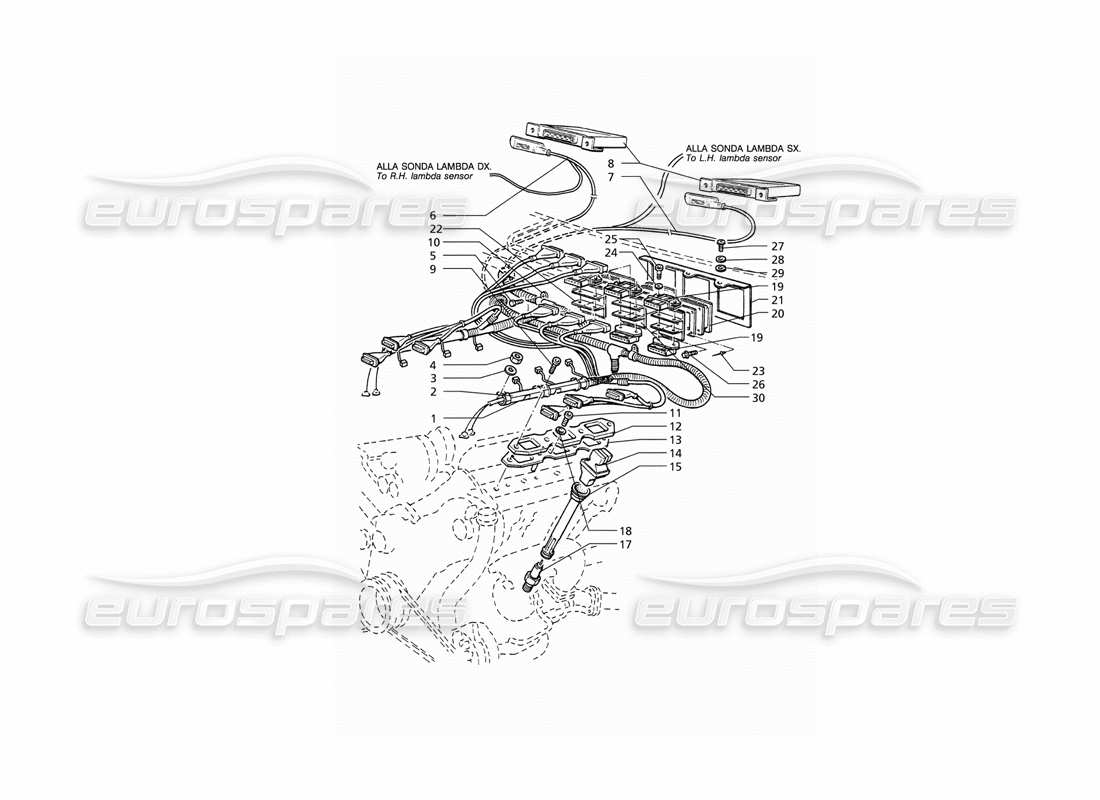

Maserati QTP V6 (1996) Ignition System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 313753319
                                                        UPP. RH / LOW. LH HALF SHELL
                                                        from £1.93
                                                        from £1.93
                                                        # 002
                                                        MPN: 313753318
                                                        LOW. RH / UPP. LH HALF SHELL
                                                        from £1.93
                                                        from £1.93
                                                        # 003
                                                        MPN: 135100064
                                                        WASHER
                                                        from £1.07
                                                        from £1.07
                                                        # 004
                                                        MPN: 128300060
                                                        SELF LOCKING NUT
                                                        Supersession
                                                        Supersession
                                                        # 006
                                                        MPN: 373700106
                                                        RH HARNESS, EL. INJ/EL. IGN.
                                                        from £382.90
                                                        from £382.90
                                                        # 007
                                                        MPN: 373700105
                                                        LH HARNESS, EL. INJ/EL. IGN.
                                                        from £382.90
                                                        from £382.90

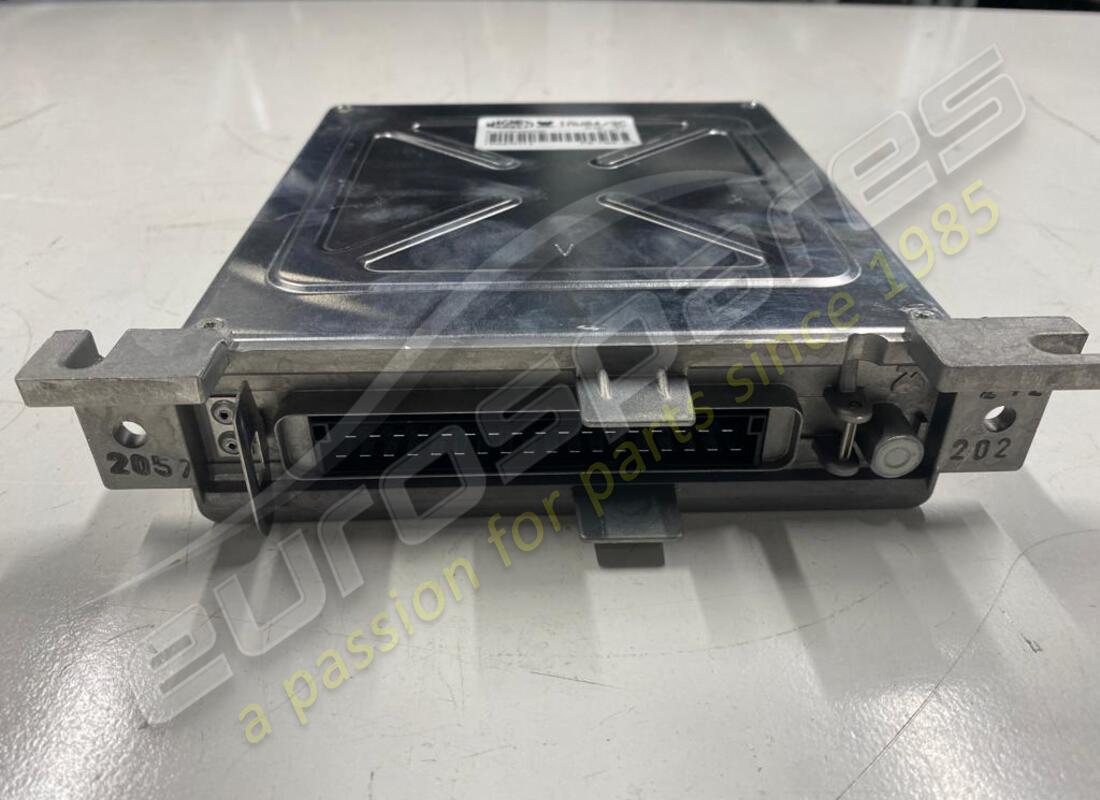

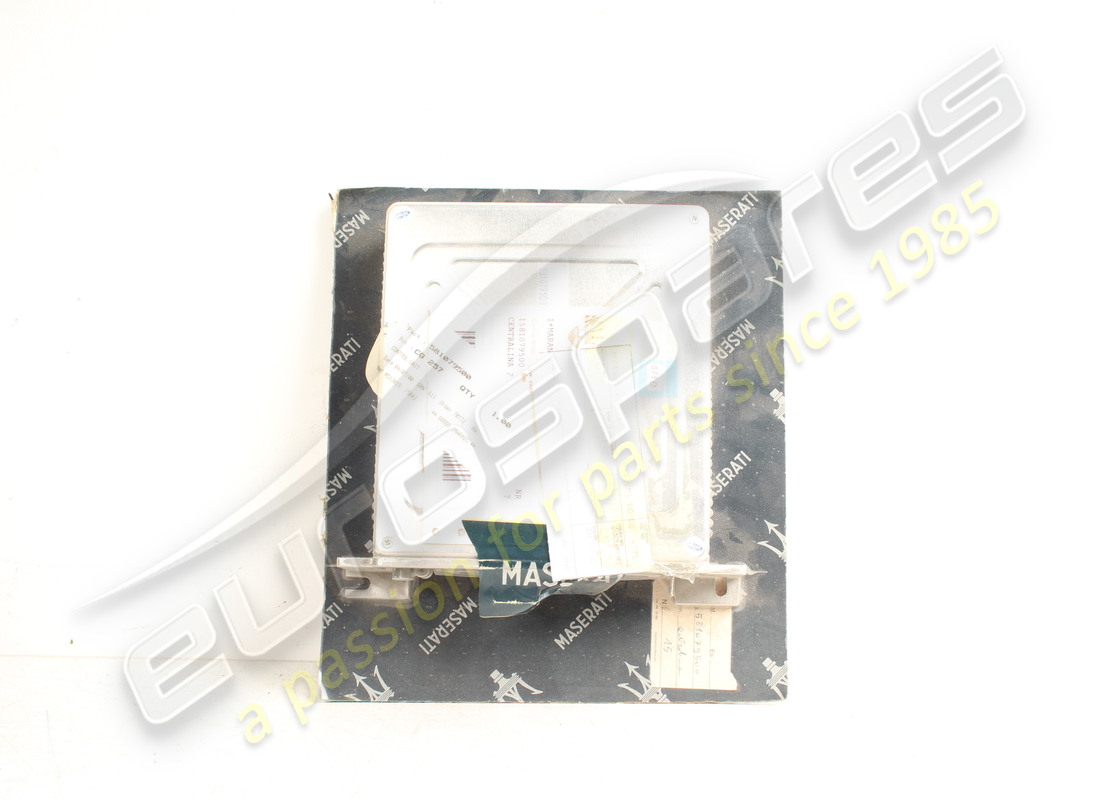

                                                        # 008
                                                        MPN: 573079500
                                                        CONTROL UNIT
                                                        - Valid for 2.0 M.T. version
                                                        from £1,298.37
                                                        from £1,298.37
                                                        # 008
                                                        MPN: 574079500
                                                        CONTROL UNIT
                                                        - Valid for 2.8 M.T. version - Pre modification Coupled with VAE06 valve - Code 581063900 (Grey)
                                                        from £1,044.75
                                                        from £1,044.75
                                                        # 008
                                                        MPN: 574079510
                                                        ELECTRONIC CONTROL UNIT
                                                        (Marelli IAW04/3C) 6160020200
                                                        from £3,103.06
                                                        from £3,103.06
                                                        # 008
                                                        MPN: 581079500
                                                        CONTROL UNIT
                                                        - Valid for 2.8 M.T. version - Post modification Coupled with VAE04 valve - Code 313737125 (Green)
                                                        from £1,456.36
                                                        from £1,456.36
                                                        # 008
                                                        MPN: 581079510
                                                        CONTROL UNIT
                                                        - Valid for 2.8 A.T. version - Post modification Coupled with VAE04 valve - Code 313737125 (Green)
                                                        from £5,451.13
                                                        from £5,451.13
                                                        # 010
                                                        MPN: 553006398
                                                        CLAMP
                                                        from £1.07
                                                        from £1.07
                                                        # 011
                                                        MPN: 14304821
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 012
                                                        MPN: 571087901
                                                        BRACKET
                                                        from £3.61
                                                        from £3.61

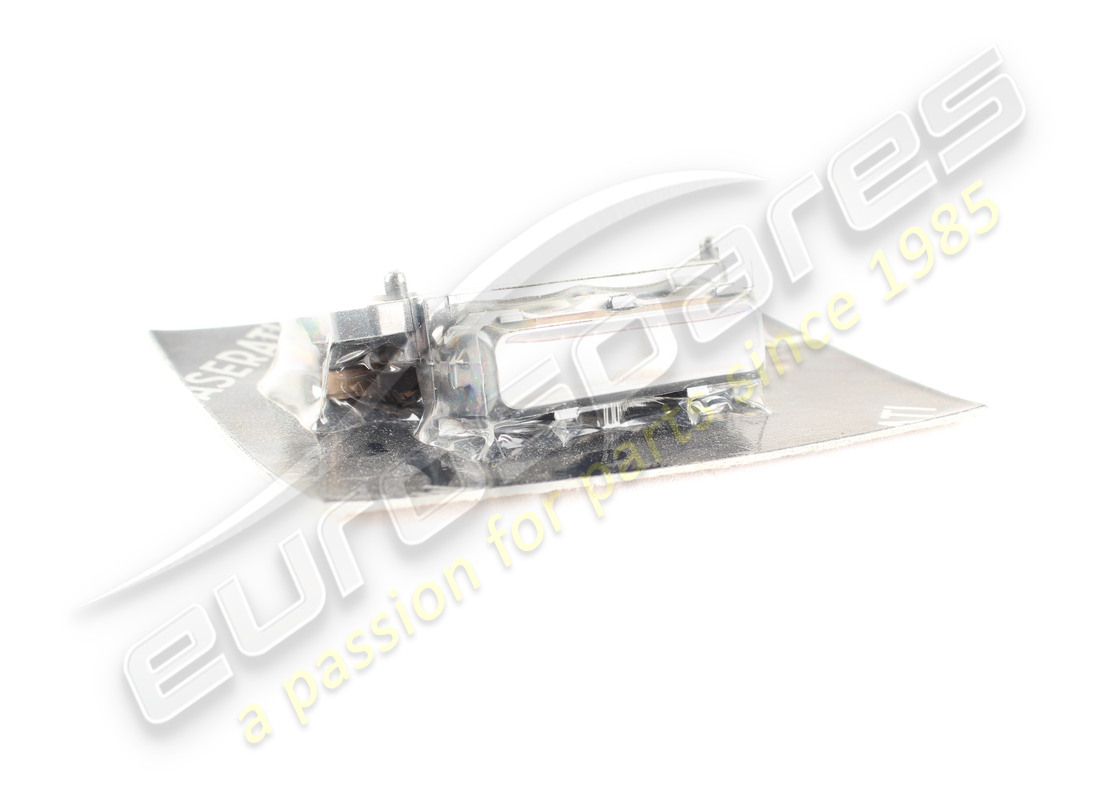

                                                        # 013
                                                        MPN: 571982001
                                                        SUPPORT
                                                        from £14.95
                                                        from £14.95

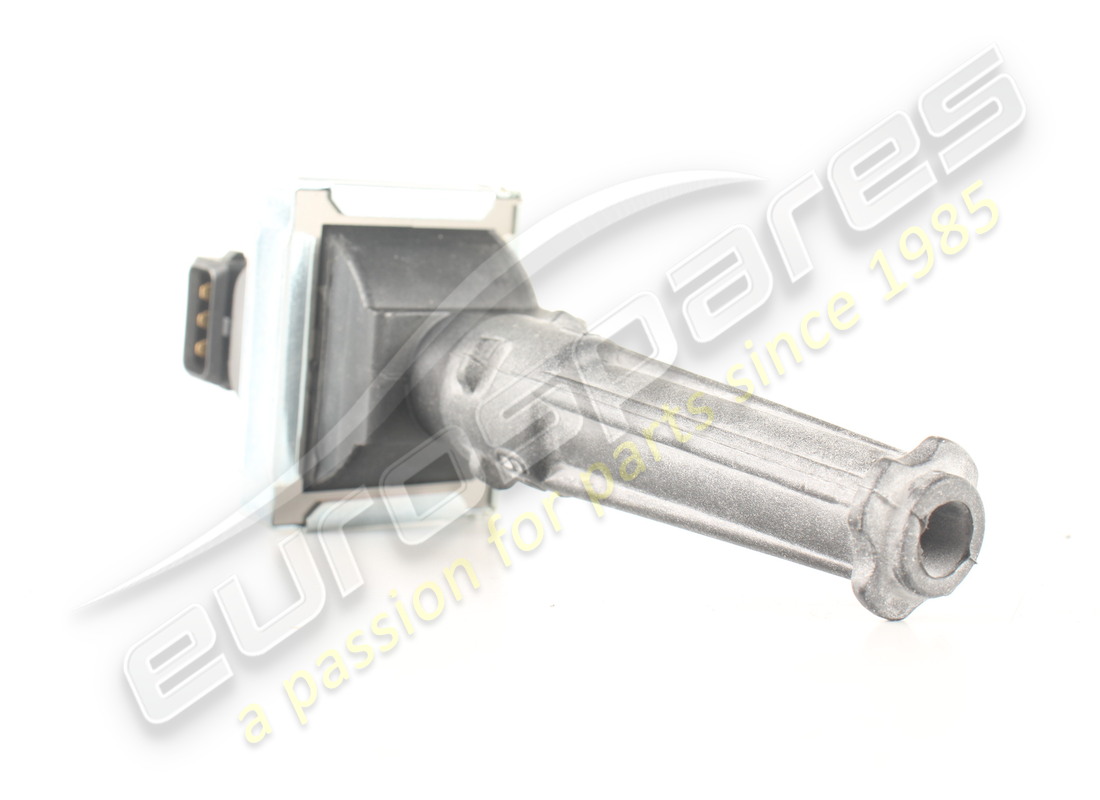

                                                        # 014
                                                        MPN: 571084200

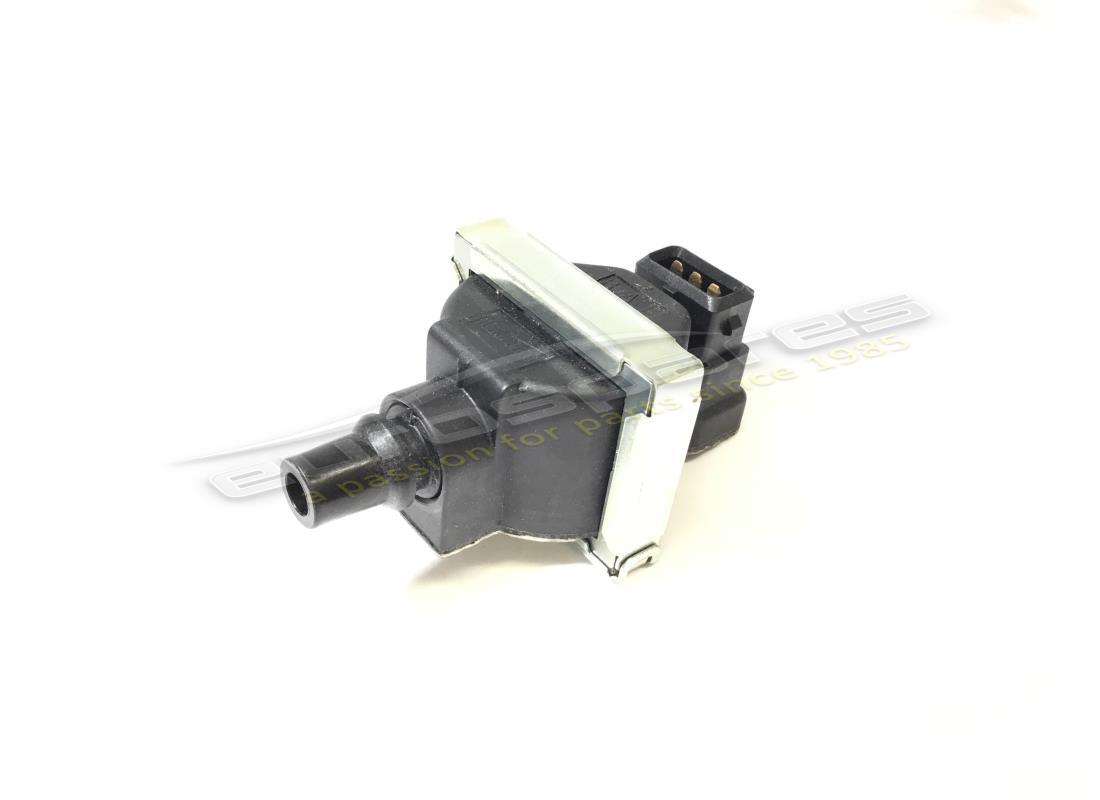

                                                        IGNITION COIL
                                                        from £134.00
                                                        from £134.00
                                                        This part replaces part number 571084201
                                                        # 015
                                                        MPN: 571085101
                                                        EXTENSION
                                                        from £69.95
                                                        from £69.95

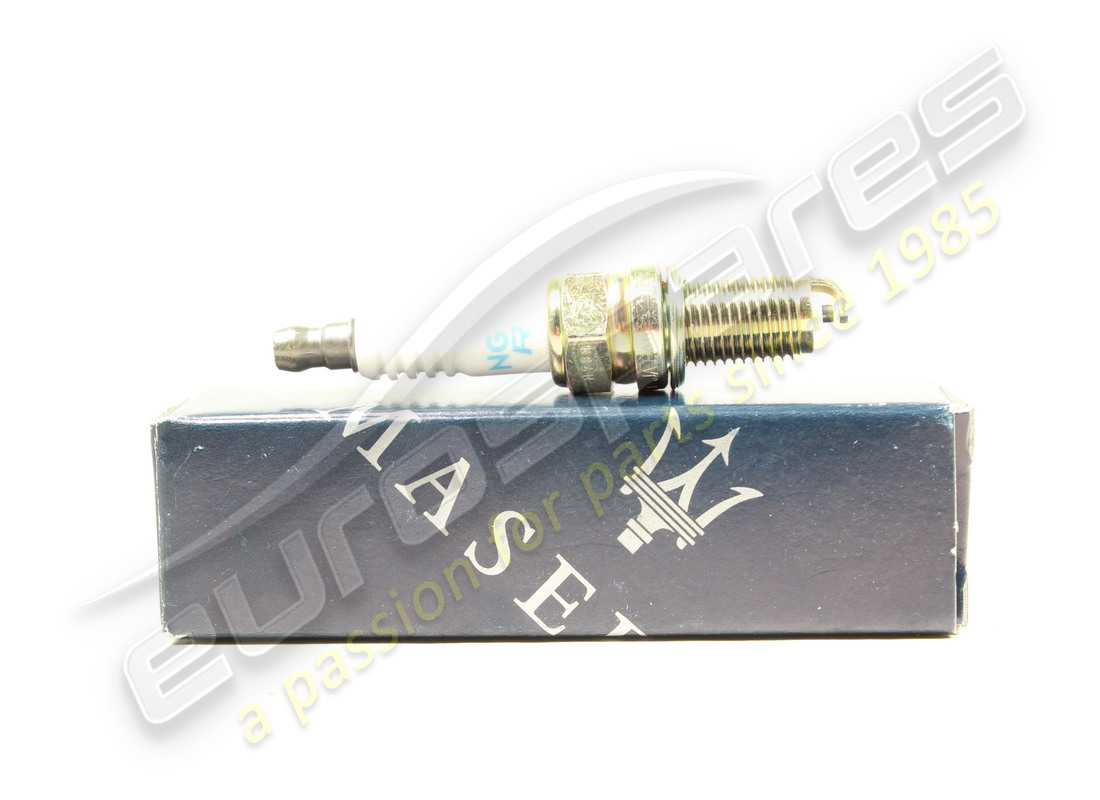

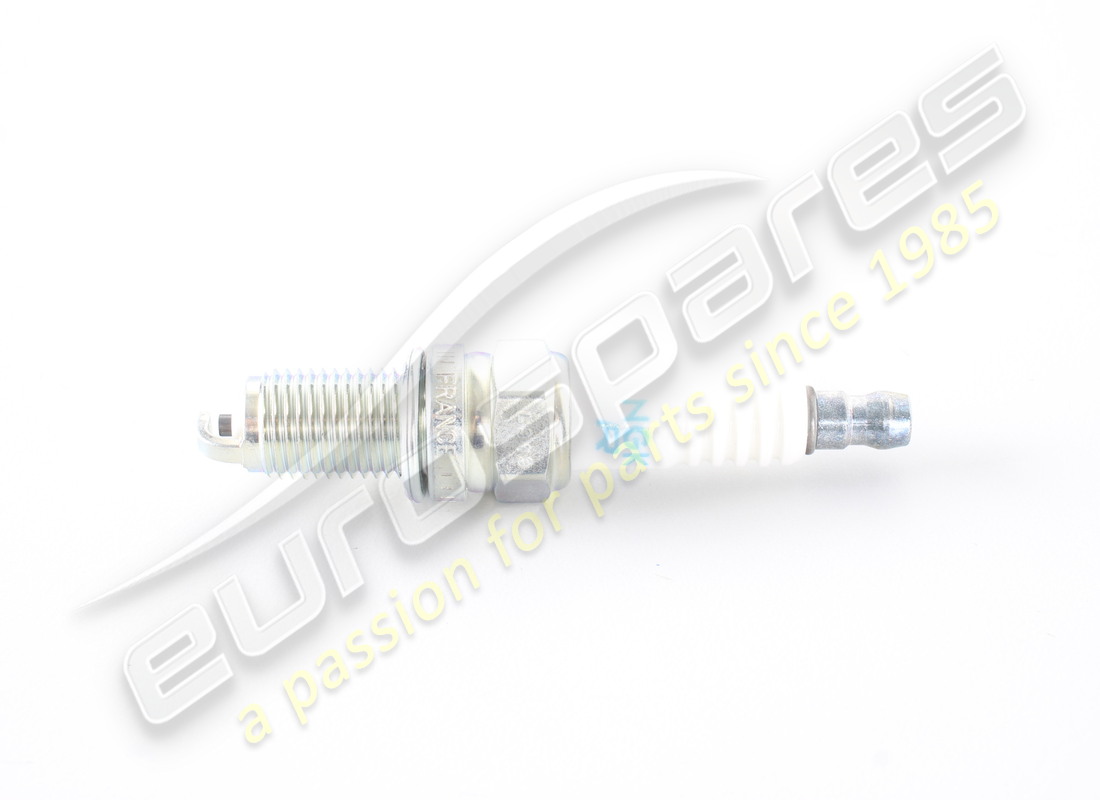

                                                        # 017
                                                        MPN: 313253225
                                                        SPARK PLUG
                                                        from £6.40
                                                        from £6.40
                                                        This part replaces part number 97143

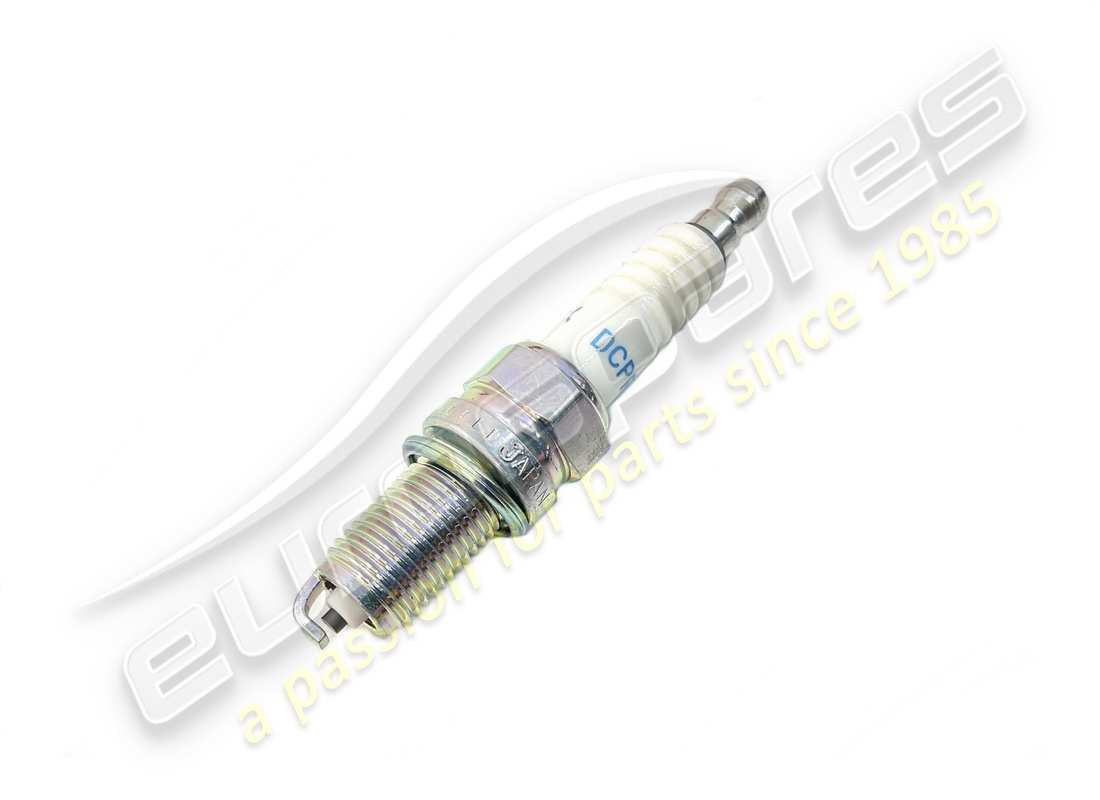

                                                        # 017
                                                        MPN: 97219
                                                        SPARK PLUG
                                                        heat range 9 (cooler plug)
                                                        from £8.40
                                                        from £8.40
                                                        # 018
                                                        MPN: 84157
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 393250302
                                                        HEAT SINK
                                                        from £12.61
                                                        from £12.61
                                                        This part replaces part number 393250106
                                                        # 021
                                                        MPN: 363201119
                                                        HEAT SINKS SUPPORT
                                                        from £4.63
                                                        from £4.63
                                                        # 022
                                                        MPN: 393250303
                                                        POWER MODULE SUPPORT
                                                        from £5.99
                                                        from £5.99
                                                        # 023
                                                        MPN: 164353090
                                                        RIVET
                                                        # 025
                                                        MPN: 167590420
                                                        SCREW
                                                        from £1.54
                                                        from £1.54
                                                        # 026
                                                        MPN: 119148220
                                                        SCREW
                                                        from £1.07
                                                        from £1.07
                                                        # 028
                                                        MPN: 135600060
                                                        INDENTED WASHER
                                                        from £0.76
                                                        from £0.76
                                                        # 029
                                                        MPN: 135900064
                                                        FLAT WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 030
                                                        MPN: 363201316
                                                        CENTRE SUPPORT
                                                        from £15.00
                                                        from £15.00
