maserati qtp v6 (1996) cooling lines and thermostat parts diagram

019 - Cooling Lines and Thermostat

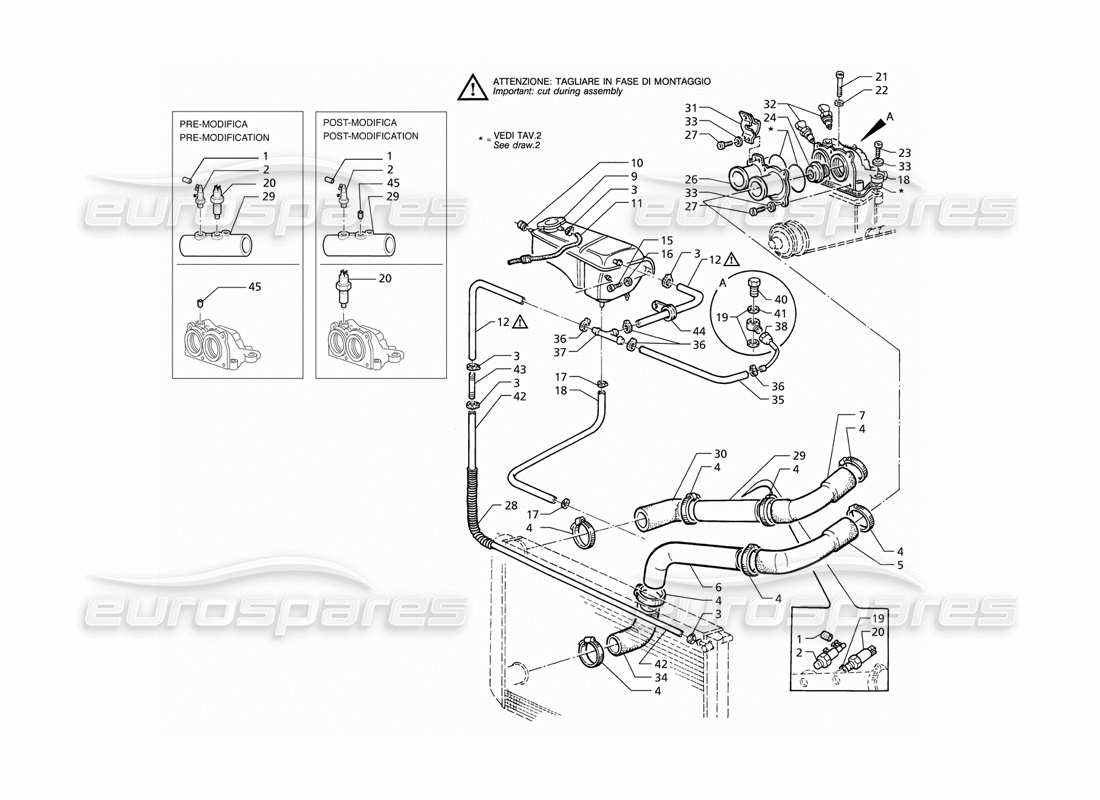

Maserati QTP V6 (1996) Cooling Lines and Thermostat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 002
                                                                                  MPN: 312030127
                                                                                  VACUUM SWITCH
                                                                                  from £30.26
                                                                                  from £30.26

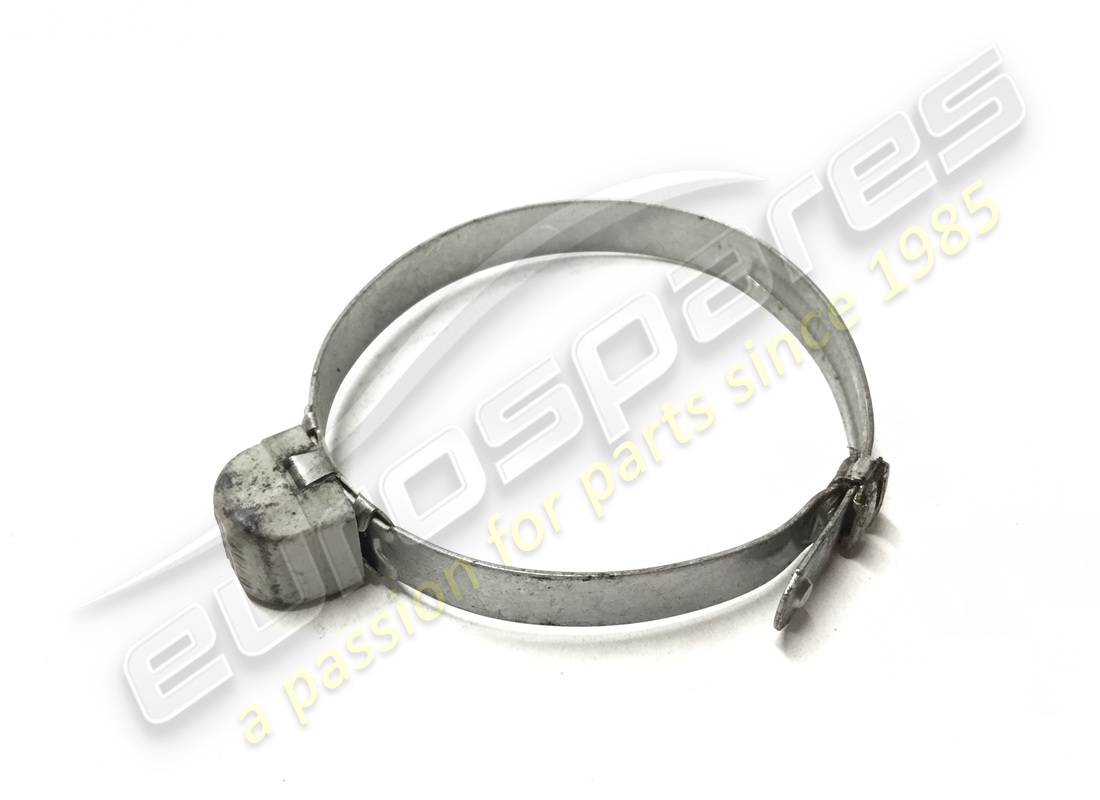

                                                                                  # 004
                                                                                  MPN: 13097790
                                                                                  CLAMP
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 005
                                                                                  MPN: 374000320
                                                                                  UPPER SLEEVE
                                                                                  from £41.67
                                                                                  from £41.67
                                                                                  # 006
                                                                                  MPN: 573044700
                                                                                  PIPE
                                                                                  from £18.38
                                                                                  from £18.38
                                                                                  # 007
                                                                                  MPN: 374000330
                                                                                  SLEEVE
                                                                                  from £7.15
                                                                                  from £7.15
                                                                                  # 008
                                                                                  MPN: 554021102
                                                                                  EXPANSION TANK
                                                                                  from £42.00
                                                                                  from £42.00
                                                                                  This part replaces part number 314020102
                                                                                  # 009
                                                                                  MPN: 554021103
                                                                                  CAP
                                                                                  from £5.42
                                                                                  from £5.42
                                                                                  # 010
                                                                                  MPN: 53401311
                                                                                  RING
                                                                                  from £0.68
                                                                                  from £0.68
                                                                                  # 011
                                                                                  MPN: 314020316
                                                                                  BREATHER PIPE
                                                                                  from £1.80
                                                                                  from £1.80
                                                                                  This part replaces part number 313320325
                                                                                  # 012
                                                                                  MPN: 374001543
                                                                                  PIPE FROM EXP. TANK TO RADIAT.
                                                                                  - Pre shaped sleeve: to be cut during assembly
                                                                                  from £19.64
                                                                                  from £19.64
                                                                                  # 013
                                                                                  MPN: 374000318
                                                                                  PIPE FROM EXP. TANK TO HOSE
                                                                                  from £9.96
                                                                                  from £9.96
                                                                                  # 017
                                                                                  MPN: 186402024
                                                                                  CLAMP
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 018
                                                                                  MPN: 571048000
                                                                                  THERMOSTAT HOUSING (4 HOLE FASTENER)
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 475048000
                                                                                  # 019
                                                                                  MPN: 14453381
                                                                                  RUBBER
                                                                                  from £0.64
                                                                                  from £0.64

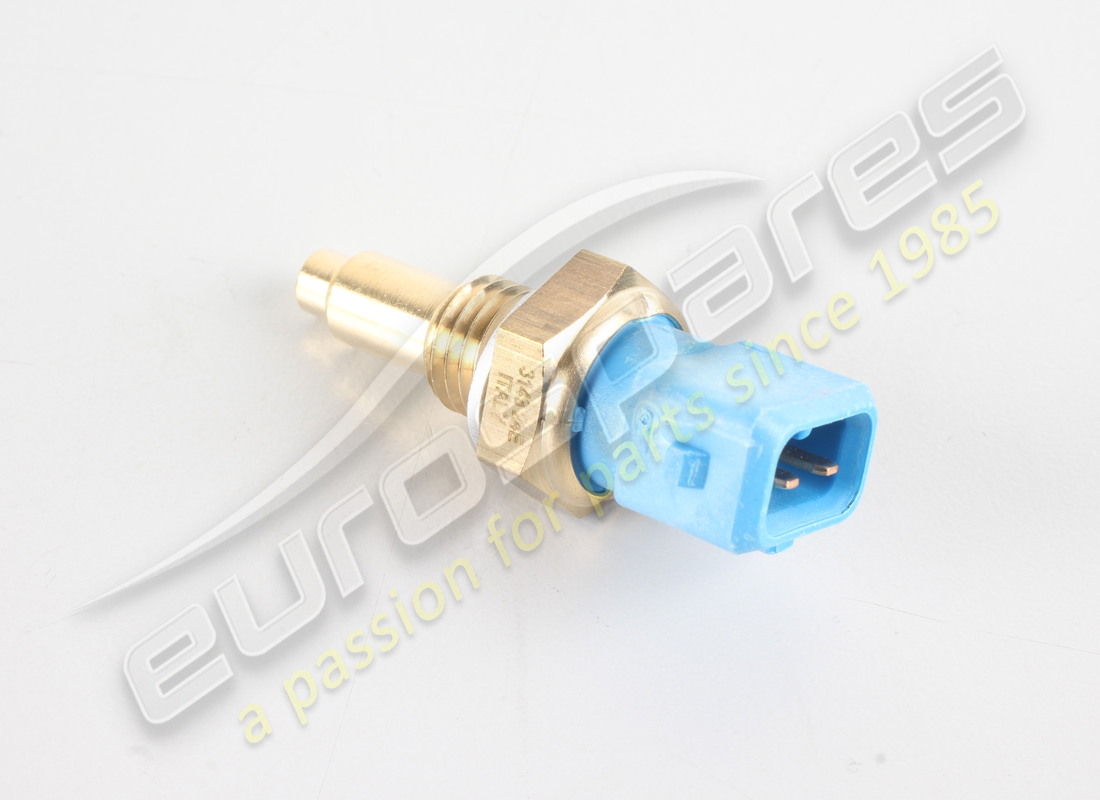

                                                                                  # 020
                                                                                  MPN: 470042800
                                                                                  WATER TEMPERATURE PROBE
                                                                                  from £13.31
                                                                                  from £13.31
                                                                                  This part replaces part number 313630102
                                                                                  # 021
                                                                                  MPN: 108006080
                                                                                  SCREW
                                                                                  from £1.31
                                                                                  from £1.31
                                                                                  # 022
                                                                                  MPN: 310620364
                                                                                  GASKET
                                                                                  from £5.58
                                                                                  from £5.58
                                                                                  # 024
                                                                                  MPN: 470045601
                                                                                  WATER THERMOSTAT, 73°
                                                                                  from £72.35
                                                                                  from £72.35
                                                                                  This part replaces part number 314020123
                                                                                  # 026
                                                                                  MPN: 314053358
                                                                                  THERMOSTAT COVER
                                                                                  not as spare part - use part number: 470045502
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 026
                                                                                  MPN: 470045502
                                                                                  THERMOSTAT COVER
                                                                                  (replaces: 314053358)
                                                                                  from £14.12
                                                                                  from £14.12
                                                                                  This part replaces part number 314053358
                                                                                  # 028
                                                                                  MPN: 318720333
                                                                                  CORRUGATED TUBE
                                                                                  from £5.12
                                                                                  from £5.12
                                                                                  # 029
                                                                                  MPN: 573062000
                                                                                  SENSOR HOLDER
                                                                                  from £9.15
                                                                                  from £9.15
                                                                                  This part replaces part number 314062331
                                                                                  # 030
                                                                                  MPN: 573047100
                                                                                  UPPER SLEEVE
                                                                                  from £59.90
                                                                                  from £59.90
                                                                                  # 031
                                                                                  MPN: 571051700
                                                                                  PLATE, ACCELERATOR SHEATH
                                                                                  from £6.38
                                                                                  from £6.38
                                                                                  # 032
                                                                                  MPN: 470079800
                                                                                  WATER TEMPERATURE SWITCH
                                                                                  from £63.84
                                                                                  from £63.84
                                                                                  # 034
                                                                                  MPN: 374000323
                                                                                  LOWER SLEEVE
                                                                                  from £33.04
                                                                                  from £33.04
                                                                                  # 035
                                                                                  MPN: 19058089
                                                                                  SLEEVE
                                                                                  from £9.61
                                                                                  from £9.61
                                                                                  This part replaces part number 379200379 - and 2 more. Click to view details
                                                                                  # 036
                                                                                  MPN: 314022359
                                                                                  CLAMP
                                                                                  from £0.68
                                                                                  from £0.68
                                                                                  # 037
                                                                                  MPN: 314022364
                                                                                  THREE WAY UNION
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 038
                                                                                  MPN: 573041800
                                                                                  BREATHER PIPE
                                                                                  from £13.97
                                                                                  from £13.97
                                                                                  # 040
                                                                                  MPN: 312020510
                                                                                  SCREW
                                                                                  from £2.67
                                                                                  from £2.67
                                                                                  This part replaces part number 193520 - and 1 more. Click to view details
                                                                                  # 042
                                                                                  MPN: 314020317
                                                                                  SLEEVE
                                                                                  from £2.18
                                                                                  from £2.18
                                                                                  This part replaces part number 374000317
                                                                                  # 043
                                                                                  MPN: 97612
                                                                                  UNION
                                                                                  from £1.07
                                                                                  from £1.07
                                                                                  # 044
                                                                                  MPN: 374000063
                                                                                  FAIRLEAD
                                                                                  from £9.61
                                                                                  from £9.61
