maserati qtp v6 (1996) radiator and cooling fans parts diagram

020 - radiator and cooling fans

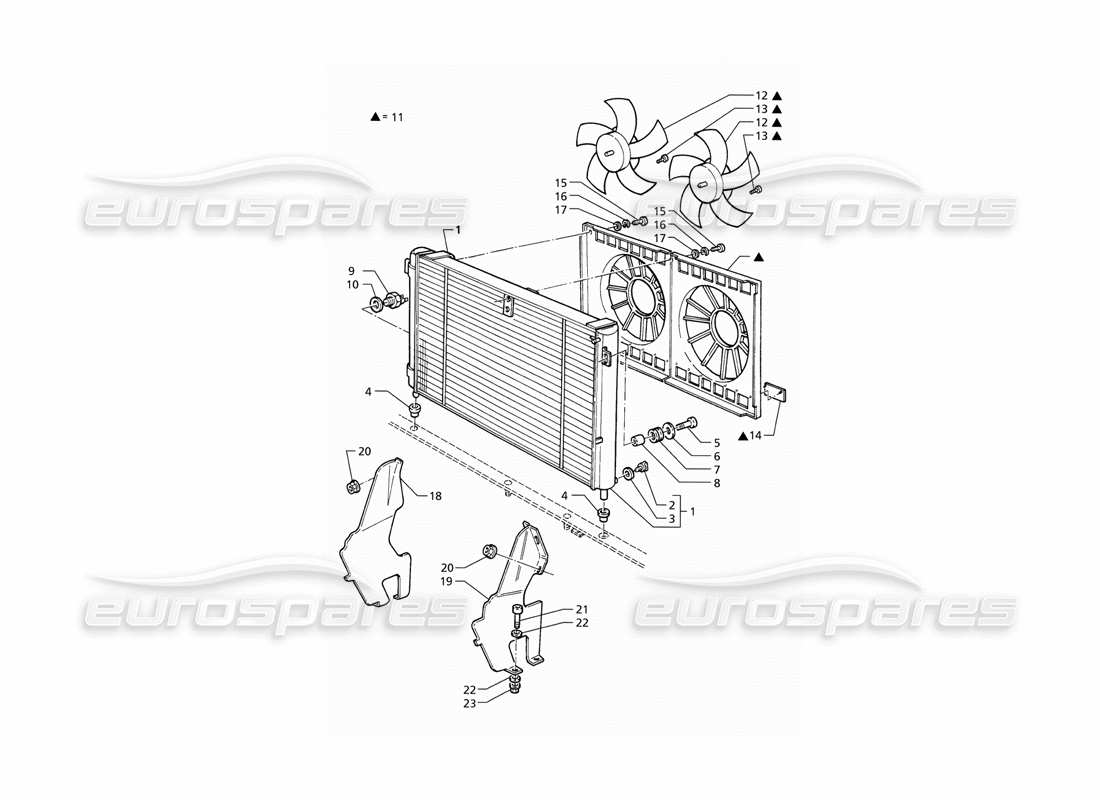

Maserati QTP V6 (1996) Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 374000100
                                              RADIATOR
                                              from £293.97
                                              from £293.97
                                              # 002
                                              MPN: 314020327
                                              GASKET
                                              Supersession
                                              Supersession
                                              # 003
                                              MPN: 314037326
                                              DRAIN COCK
                                              from £10.05
                                              from £10.05
                                              # 004
                                              MPN: 189453
                                              RUBBER BUSH
                                              from £1.08
                                              from £1.08
                                              This part replaces part number 374030312
                                              # 004
                                              MPN: 189453
                                              RUBBER BUSH
                                              from £1.08
                                              from £1.08
                                              This part replaces part number 374030312
                                              # 007
                                              MPN: 315520375
                                              RUBBER WIRE INLET
                                              Supersession
                                              Supersession
                                              # 008
                                              MPN: 397850624
                                              WIRE INLET INT. BUSH
                                              from £2.39
                                              from £2.39
                                              # 009
                                              MPN: 363310172
                                              THERMAL SWITCH
                                              from £5.68
                                              from £5.68
                                              # 010
                                              MPN: 53331300
                                              GASKET
                                              from £1.08
                                              from £1.08
                                              # 011
                                              MPN: 373330105
                                              ELECTRIC FAN ASSY + DUCT
                                              from £279.39
                                              from £279.39
                                              This part replaces part number 373300105
                                              # 012
                                              MPN: 373300102
                                              AP6 MOTOR + FANS
                                              from £91.43
                                              from £91.43
                                              This part replaces part number 313354102
                                              # 013
                                              MPN: 119142130
                                              MOTOR PARKER SCREW
                                              # 014
                                              MPN: 373330320
                                              RUBBER FLAP
                                              from £4.00
                                              from £4.00
                                              # 016
                                              MPN: 138410060
                                              RETAINING WASHER
                                              # 017
                                              MPN: 135900064
                                              FLAT WASHER
                                              from £0.47
                                              from £0.47
                                              # 018
                                              MPN: 374030128
                                              RH AIR DUCT
                                              from £36.86
                                              from £36.86
                                              # 019
                                              MPN: 374008129
                                              LH AIR DUCT
                                              - Valid for 2.8 A.T. version
                                              from £46.70
                                              from £46.70
                                              # 019
                                              MPN: 374030129
                                              LH AIR DUCT
                                              - Valid for 2.0 M.T. and 2.8 M.T. version
                                              from £43.34
                                              from £43.34
                                              # 021
                                              MPN: 108006012
                                              ALLEN SCREW
                                              from £0.54
                                              from £0.54
                                              # 022
                                              MPN: 135100064
                                              FLAT WASHER
                                              from £1.08
                                              from £1.08
