maserati qtp v6 (1996) air conditioning system (rhd) parts diagram

021GD - Air Conditioning System (RHD)

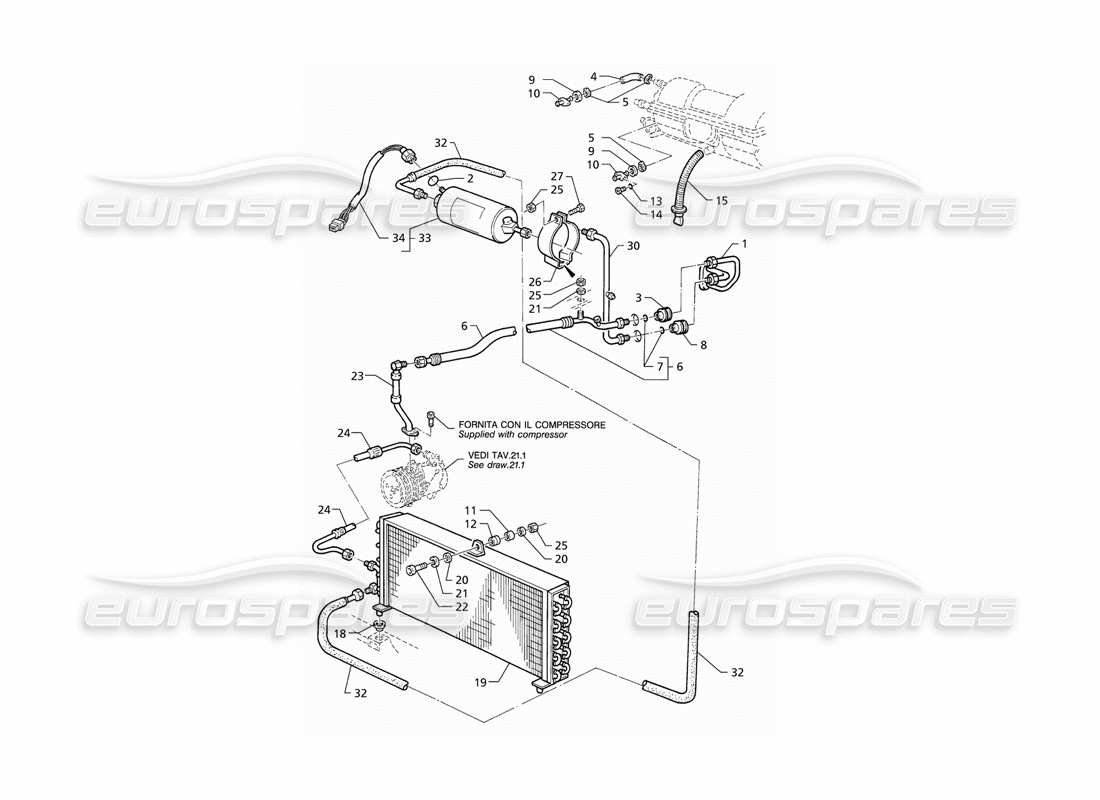

Maserati QTP V6 (1996) Air Conditioning System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 375515111
                                                        HOSE ASSY
                                                        from £48.54
                                                        from £48.54
                                                        # 002
                                                        -
                                                        GASKET
                                                        # 003
                                                        MPN: 375500373
                                                        FAIRLEAD
                                                        from £4.08
                                                        from £4.08
                                                        # 004
                                                        MPN: 315520479
                                                        TUBE
                                                        from £8.18
                                                        from £8.18
                                                        # 005
                                                        MPN: 186402028
                                                        CLAMP
                                                        from £1.55
                                                        from £1.55
                                                        # 006
                                                        MPN: 375515173
                                                        FREON RETURN LINE
                                                        from £53.83
                                                        from £53.83
                                                        # 007
                                                        -
                                                        GASKET
                                                        # 008
                                                        MPN: 375500371
                                                        FAIRLEAD
                                                        from £4.51
                                                        from £4.51
                                                        # 009
                                                        MPN: 315520372
                                                        GASKET
                                                        from £0.69
                                                        from £0.69
                                                        # 010
                                                        MPN: 315520370
                                                        UNION
                                                        from £0.70
                                                        from £0.70
                                                        # 011
                                                        MPN: 397850624
                                                        SPACER
                                                        from £2.39
                                                        from £2.39
                                                        # 012
                                                        MPN: 315520375
                                                        RING
                                                        Supersession
                                                        Supersession
                                                        # 013
                                                        MPN: 169020005
                                                        WASHER
                                                        from £1.08
                                                        from £1.08
                                                        # 014
                                                        MPN: 164323413
                                                        RIVET
                                                        # 015
                                                        MPN: 315520017
                                                        CONDENSATE DRAINAGE TUBE
                                                        from £1.76
                                                        from £1.76
                                                        # 018
                                                        MPN: 189453
                                                        BUSHING
                                                        from £1.08
                                                        from £1.08
                                                        This part replaces part number 374030312
                                                        # 018
                                                        MPN: 189453
                                                        BUSHING
                                                        from £1.08
                                                        from £1.08
                                                        This part replaces part number 374030312
                                                        # 019
                                                        MPN: 375500220
                                                        BIRANGO CONDENSER
                                                        from £280.62
                                                        from £280.62
                                                        # 020
                                                        MPN: 163020060
                                                        FLAT WASHER
                                                        from £2.55
                                                        from £2.55
                                                        # 023
                                                        MPN: 375500185
                                                        FREON LINE
                                                        from £37.28
                                                        from £37.28
                                                        # 024
                                                        MPN: 375531262
                                                        FREON DELIVERY LINE
                                                        from £29.04
                                                        from £29.04
                                                        # 026
                                                        MPN: 375500301
                                                        CLAMP
                                                        from £4.63
                                                        from £4.63
                                                        # 030
                                                        MPN: 375540182
                                                        FREON DELIVERY LINE
                                                        from £25.01
                                                        from £25.01
                                                        # 032
                                                        MPN: 375540181
                                                        FREON DELIVERY LINE
                                                        from £40.79
                                                        from £40.79
                                                        # 033
                                                        MPN: 375530174
                                                        FILTER ASSY
                                                        from £97.31
                                                        from £97.31
                                                        # 034
                                                        MPN: 375530175
                                                        MAX AND MIN. CAPACITY PRESSURE SWITCH
                                                        from £53.99
                                                        from £53.99
