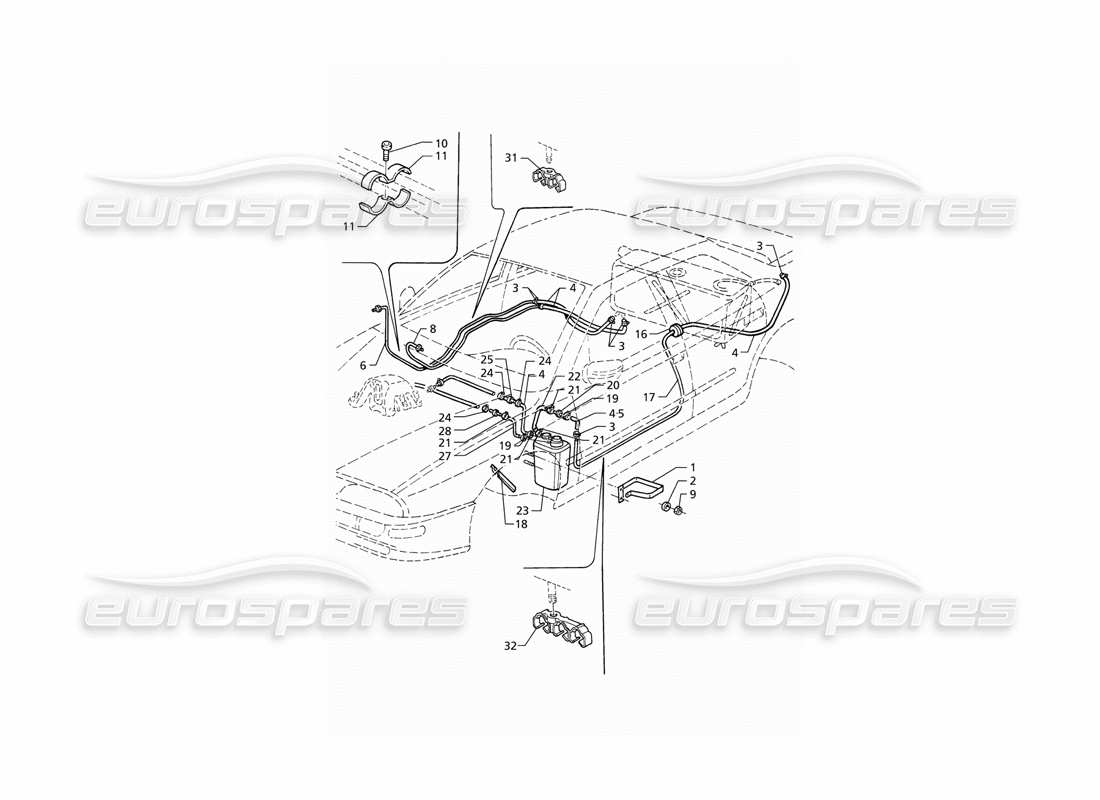

022GS - Evaporation Vapours Recovery System and Fuel Pipes (LHD)

Maserati QTP V6 (1996) Evaporation Vapours Recovery System and Fuel Pipes (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 379200207
                                    CLAMP
                                    from £12.21
                                    from £12.21
                                    This part replaces part number 379200341
                                    FASCETTA PER FISS.CARBON CAN Genuine Maserati Part - New (to order)
                                    # 002
                                    MPN: 135900064
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    ROSETTA PIANA Genuine Maserati Part - New (to order)
                                    # 003
                                    MPN: 559221343
                                    CLAMP
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 004
                                    MPN: 97892
                                    SLEEVE
                                    - Section in metres - order minimum amount of 1 m or multiples of 1 m
                                    from £65.60
                                    from £65.60
                                    This part replaces part number 19058189 - and 1 more. Click to view details
                                    TUBO PER BENZINA SENZA PIOMB Genuine Maserati Part - New (to order)
                                    # 005
                                    MPN: 318720333
                                    CORRUGATED TUBE
                                    - Section in metres - order minimum amount of 1 m or multiples
                                    from £5.14
                                    from £5.14
                                    CORRUGATED PIPE INT.D.16.5 EXT.D. Genuine Maserati Part - New (to order)
                                    # 006
                                    MPN: 379215128
                                    FUEL DELIVERY LINE
                                    FUEL DELIVERY LINE Genuine Maserati Part - New (to order)
                                    # 008
                                    MPN: 379200401
                                    FUEL RETURN LINE
                                    Very Long Pipe (Beware shipping expensive)
                                    from £54.26
                                    from £54.26
                                    This part replaces part number 379200122
                                    FUEL RETURN HOSE Genuine Maserati Part - New (to order)
                                    # 009
                                    MPN: 128300060
                                    SELF LOCKING NUT
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 011
                                    MPN: 399250419
                                    CLAMP
                                    from £1.08
                                    from £1.08
                                    CLAMP Genuine Maserati Part - New (to order)
                                    # 016
                                    MPN: 319220396
                                    FAIRLEAD
                                    from £1.55
                                    from £1.55
                                    GROMMET Genuine Maserati Part - New (to order)
                                    # 017
                                    MPN: 379200409
                                    PETROL VAPOURS DELIVERY LINE
                                    from £31.00
                                    from £31.00
                                    This part replaces part number 379200402
                                    BUNDY HOSE Genuine Maserati Part - New (to order)
                                    # 018
                                    MPN: 379200138
                                    PROTECTION PLATE
                                    from £12.29
                                    from £12.29
                                    PROTECTION PLATE Genuine Maserati Part - New (to order)
                                    # 019
                                    MPN: 312220441
                                    CLAMP
                                    CLAMP Genuine Maserati Part - New (to order)
                                    # 020
                                    MPN: 95942
                                    REDUCER UNION
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 022
                                    MPN: 19058089
                                    SLEEVE
                                    - Section in metres - order minimum amount of 1 m or multiples
                                    from £9.66
                                    from £9.66
                                    This part replaces part number 379200379 - and 2 more. Click to view details
                                    TUBO BENZINA MN 96012 Genuine Maserati Part - New (to order)
                                    # 023
                                    MPN: 379200204

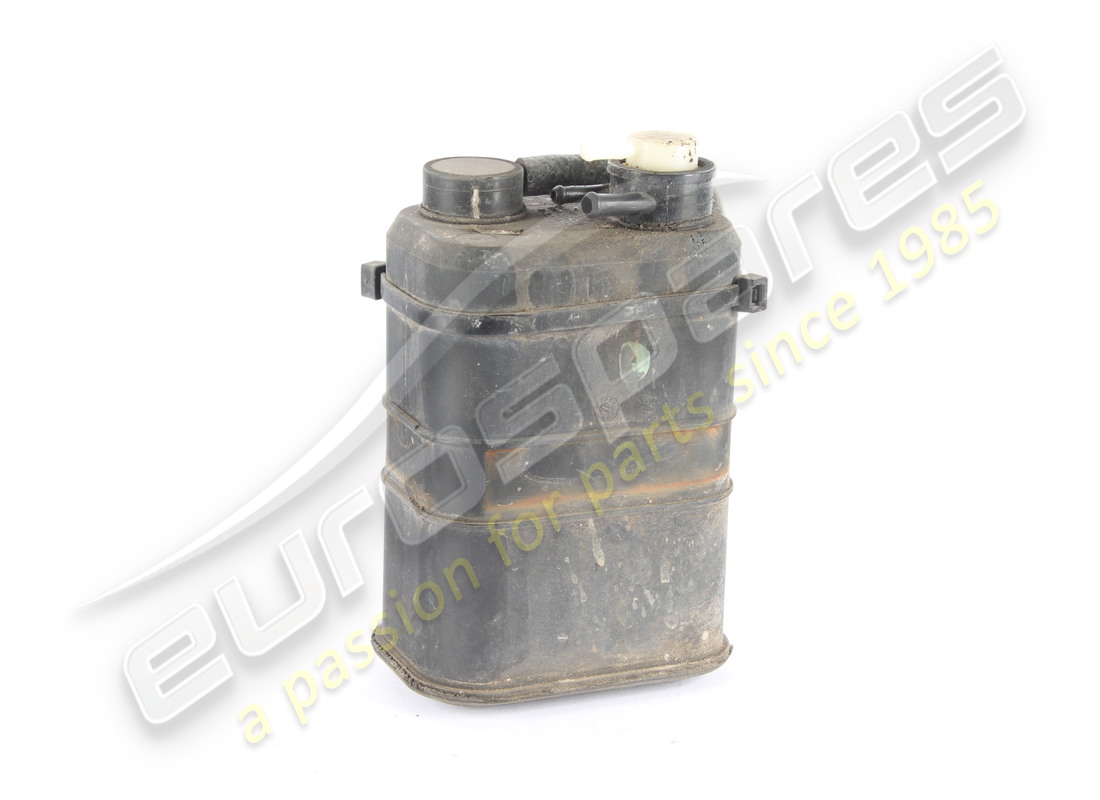

                                    CARBON CANISTER
                                    from £49.55
                                    from £49.55
                                    This part replaces part number 319237204 - and 1 more. Click to view details
                                    CARBON CANISTER (FILTRO VAPO Genuine Maserati Part - New (to order)
                                    CARBON CANISTER (FILTRO VAPO Genuine Maserati Part - Used In stock
                                    # 024
                                    MPN: 312050310
                                    CLAMP
                                    from £1.08
                                    from £1.08
                                    CLICK CLAMP 55080 Genuine Maserati Part - New (to order)
                                    # 026
                                    MPN: 300100803
                                    SLEEVE
                                    - Section in metres - order minimum amount of 1 m or multiples
                                    from £54.96
                                    from £54.96
                                    This part replaces part number 318720329
                                    RUBBER HOSE E 2F-10 8X3.5 9AT4 Genuine Maserati Part - New (to order)
                                    # 027
                                    MPN: 19058089
                                    SLEEVE
                                    - Section in metres - order minimum amount of 1 m or multiples
                                    from £9.66
                                    from £9.66
                                    This part replaces part number 379200379 - and 2 more. Click to view details
                                    TUBO BENZINA MN 96012 Genuine Maserati Part - New (to order)
                                    # 028
                                    MPN: 95241
                                    REDUCER UNION
                                    from £1.08
                                    from £1.08
                                    WASHER Genuine Maserati Part - New (to order)
                                    CYLINDER HEAD NUT Genuine Ferrari Part - New (to order)
                                    # 031
                                    MPN: 379200408
                                    PETROL PIPES SECUR. BLOCK RH SIDE
                                    - As necessary
                                    from £1.08
                                    from £1.08
                                    PIPE RETAINING CLIP D.8 Genuine Maserati Part - New (to order)
                                    # 032
                                    MPN: 377400332
                                    PETROL/BRAKES PIPES SECUR. BLOCK RH SIDE
                                    - As necessary
                                    from £0.69
                                    from £0.69
                                    CABLE FASTENING CLIP Genuine Maserati Part - New (to order)
