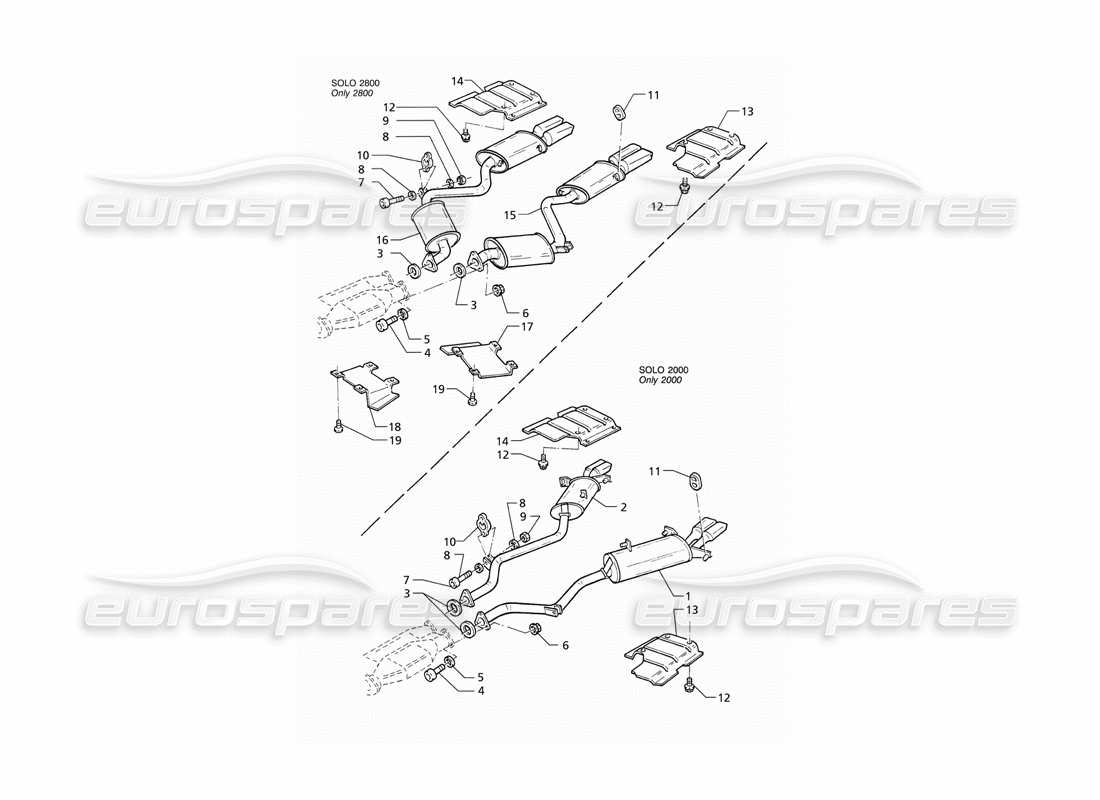

024.2 - Rear Exhaust System

Maserati QTP V6 (1996) Rear Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 379000109
                          LH REAR LINE
                          - Valid for 2.0 M.T. version
                          from £495.44
                          from £495.44
                          # 002
                          MPN: 379000110
                          RH REAR LINE
                          - Valid for 2.0 M.T. version
                          from £495.44
                          from £495.44
                          # 003
                          MPN: 399050305
                          SEALING RING
                          from £88.49
                          from £88.49
                          # 004
                          MPN: 14814874
                          ALLEN SCREW (FIAT CODE)
                          from £1.63
                          from £1.63
                          # 006
                          MPN: 14058519
                          COPPER STOP NUT
                          from £0.52
                          from £0.52
                          This part replaces part number 312051309 which we have in stock
                          # 007
                          MPN: 14304821
                          ALLEN SCREW
                          from £0.53
                          from £0.53
                          # 009
                          MPN: 128300060
                          NUT
                          Supersession
                          Supersession
                          # 010
                          MPN: 369000130
                          RUBBER SUPPORT
                          from £1.54
                          from £1.54
                          # 011
                          MPN: 319020300
                          RUBBER SUPPORT
                          from £1.60
                          from £1.60
                          # 012
                          MPN: 314320345
                          FLANGED SCREW
                          from £41.46
                          from £41.46
                          # 013
                          MPN: 379000119
                          LH PLATE
                          from £11.83
                          from £11.83
                          # 014
                          MPN: 379000120
                          RH PLATE
                          from £11.83
                          from £11.83
                          # 015
                          MPN: 379005000
                          PAIR STAINLESS STEEL BACK BOXES
                          - Valid for 2.8 M.T. and 2.8 A.T. version
                          # 015
                          MPN: 379005109
                          REAR LH LINE
                          - Valid for 2.8 M.T. and 2.8 A.T. version
                          from £591.83
                          from £591.83
                          # 016
                          MPN: 379005110
                          REAR RH LINE
                          - Valid for 2.8 M.T. and 2.8 A.T. version
                          from £552.40
                          from £552.40
                          # 017
                          MPN: 369005139
                          LH SHIELD
                          - Valid for 2.8 M.T. and 2.8 A.T. version
                          from £9.87
                          from £9.87
                          # 018
                          MPN: 369005140
                          RH SHIELD
                          - Valid for 2.8 M.T. and 2.8 A.T. version
                          from £9.87
                          from £9.87
                          # 019
                          MPN: 112806025
                          SELF THREADING SCREW
                          - Valid for 2.8 M.T. and 2.8 A.T. version
