maserati qtp v6 (1996) getrag manual transmission 6 speed parts diagram

026 - Getrag Manual Transmission 6 Speed

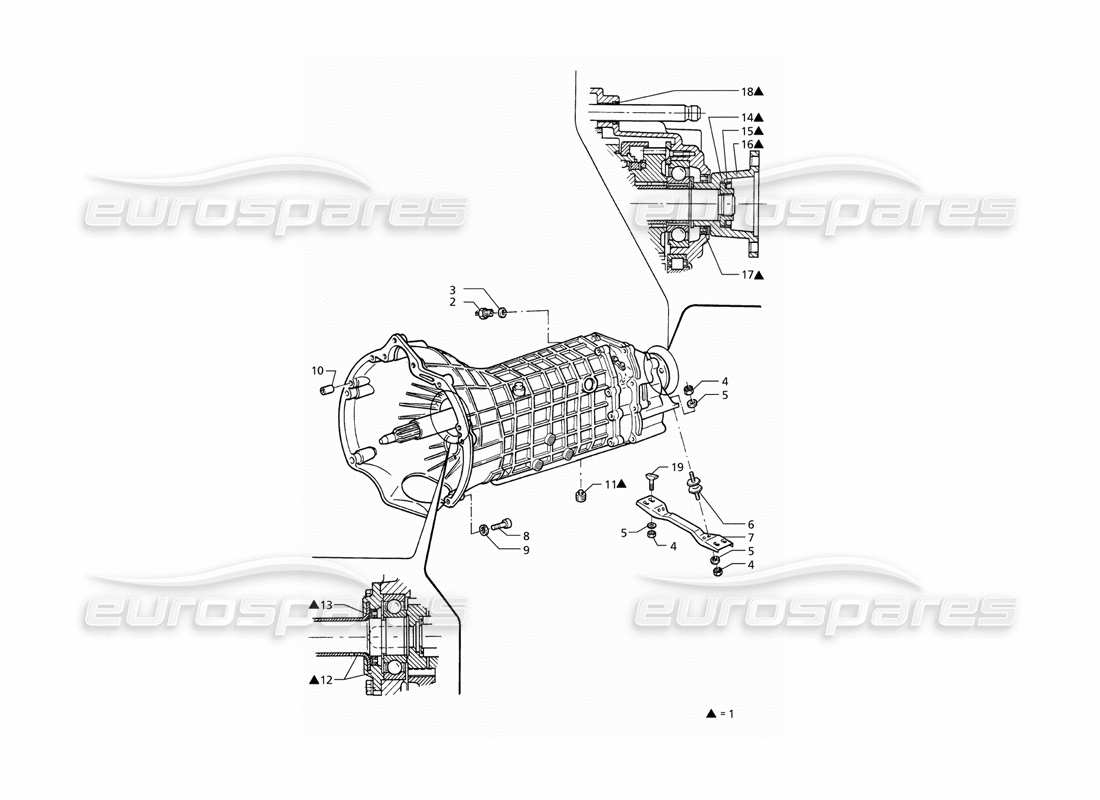

Maserati QTP V6 (1996) Getrag Manual Transmission 6 Speed Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 374800007
6 SPEED GEARBOX WITH LONG TUBE
- Valid for 2.0 M.T. version - Pre modification supplied while supplies last
Supersession
Supersession
This part replaces part number 364802007 which we have in stock - and 1 more. Click to view details
Genuine Maserati Part (no longer available to order)
# 001
MPN: 374805006
6 SPEED GEARBOX WITH LONG TUBE AND MACHINED FOR VOITH CLUTCH
- Valid for 2.8 M.T. version - Pre modification supplied while supplies last
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 001
MPN: 374807006
6 SPEED GEARBOX WITH SHORT TUBE AND MACHINED FOR VOITH CLUTCH
- Valid for 2.8 M.T. version - Post modification - (in production as from chassis 331 346) interchangeable with pre modification
from £3,141.77
from £3,141.77
This part replaces part number 374805006
Gear Box Genuine Maserati Part - New (to order)
# 001
MPN: 374830007
6 SPEED GEARBOX WITH SHORT TUBE
- Valid for 2.0 M.T. version - Post modification - (in production as from chassis 331 346) interchangeable with pre modification
from £3,735.05
from £3,735.05
This part replaces part number 374800007 which we have in stock - and 1 more. Click to view details
6 GEAR GETRAG GEARBOX Genuine Maserati Part - New (to order)
# 002
MPN: 323353131
REVERSE GEAR SWITCH
- Valid for 2.0 M.T. and 2.8 M.T. version
from £18.08
from £18.08
REVERSE GEAR SWITCH Genuine Maserati Part - New (to order)
# 003
MPN: 317851388
GASKET
- Valid for 2.0 M.T. and 2.8 M.T. version
from £1.08
from £1.08
COPPER WASHER 12.5X17.5X1.5 Genuine Maserati Part - New In stock
# 004
MPN: 314632309
SELF LOCKING NUT
- Valid for 2.0 M.T. and 2.8 M.T. version
Supersession
Supersession
This part replaces part number 128350080
Genuine Maserati Part (no longer available to order)
# 005
MPN: 314855306
WASHER
- Valid for 2.0 M.T. and 2.8 M.T. version
from £2.16
from £2.16
WASHER Genuine Maserati Part - New (to order)
# 006
MPN: 374830120
SPRING MOUNT
- Valid for 2.0 M.T. and 2.8 M.T. version
from £41.81
from £41.81
SUPPORTO IN GOMMA X SOST.SCA Genuine Maserati Part - New In stock
# 007
MPN: 394850305
MOUNT
- Valid for 2.0 M.T. and 2.8 M.T. version
from £158.61
from £158.61
SUPPORT Genuine Maserati Part - New (to order)
# 008
MPN: 108010040
SCREW
- Valid for 2.0 M.T. and 2.8 M.T. version
Maserati PART 108010040 Genuine Maserati Part - New (to order)
# 009
MPN: 138410100
WASHER
- Valid for 2.0 M.T. and 2.8 M.T. version
Maserati PART 138410100 Genuine Maserati Part - New (to order)
# 010
MPN: 310420311
DOWEL
- Valid for 2.0 M.T. and 2.8 M.T. version
from £9.66
from £9.66
CENTRING DOWEL D.12X8.5X20 Genuine Maserati Part - New In stock
# 011
MPN: 394850408
MAGNETIC DRAIN PLUG
- Valid for 2.0 M.T. and 2.8 M.T. version
from £4.63
from £4.63
TAPPO 900.9.0093.15 Genuine Maserati Part - New (to order)
# 012
MPN: 374830410
COVER WITH SHORT TUBE
- Valid for 2.0 M.T. and 2.8 M.T. version - Post modification - (in production as from chassis 331 346) interchangeable with pre modification
from £150.63
from £150.63
This part replaces part number 394850410
SHORT SLEEVE COVERING 2660040500 Genuine Maserati Part - New (to order)
# 012
MPN: 394850410
COVER WITH LONG TUBE
- Valid for 2.0 M.T. and 2.8 M.T. version - Pre modification supplied while supplies last
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 013
MPN: 394850412
OIL SEAL
- Valid for 2.0 M.T. and 2.8 M.T. version
from £5.57
from £5.57
SEALING RING 35X52X7 90090 Genuine Maserati Part - New In stock
# 014
MPN: 394850415
FLANGE
- Valid for 2.0 M.T. and 2.8 M.T. version
from £4.17
from £4.17
FLANGE 262.7.0071.00 Genuine Maserati Part - New (to order)
# 015
MPN: 394850417
SECURING WASHER
- Valid for 2.0 M.T. and 2.8 M.T. version
from £24.89
from £24.89
WASHER 232.7.0058.00 Genuine Maserati Part - New In stock
# 016
MPN: 324853425
OUTPUT FLANGE
- Valid for 2.0 M.T. and 2.8 M.T. version
from £114.00
from £114.00
Maserati PART 324853425 Genuine Maserati Part - New (to order)
# 017
MPN: 324853420
OIL SEAL
- Valid for 2.0 M.T. and 2.8 M.T. version
from £13.98
from £13.98
SEALING RING 40X55X8 90090 Genuine Maserati Part - New (to order)
# 018
MPN: 324853419
OIL SEAL
- Valid for 2.0 M.T. and 2.8 M.T. version
from £21.94
from £21.94
ANELLO DI TENUTA 15X21X7 900 Genuine Maserati Part - New In stock
# 019
MPN: 314820303
SCREW
- Valid for 2.0 M.T. and 2.8 M.T. version
from £12.44
from £12.44
SCREW Genuine Maserati Part - New (to order)
