maserati qtp v6 (1996) automatic transmission converter (4hp) parts diagram

028 - Automatic Transmission Converter (4Hp)

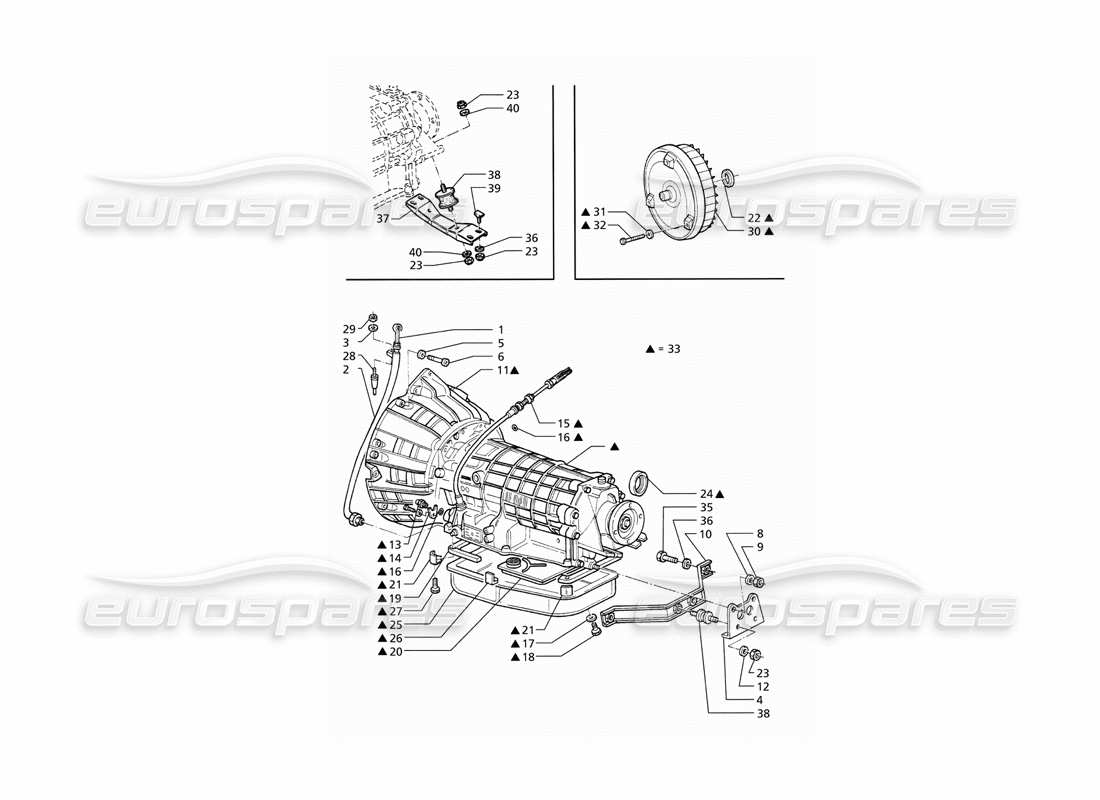

Maserati QTP V6 (1996) Automatic Transmission Converter (4Hp) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315255156
oil dipstick
- Valid for 2.8 A.T. version
from £371.36
from £371.36
# 002
MPN: 365206157
OIL DIPSTICK GAITER
- Valid for 2.8 A.T. version
from £34.89
from £34.89
# 003
MPN: 312220411
WASHER
- Valid for 2.8 A.T. version
from £0.47
from £0.47
# 004
MPN: 379006338
SUPPORT
- Valid for 2.8 A.T. version
from £4.76
from £4.76
# 005
MPN: 138410100
WASHER
- Valid for 2.8 A.T. version
# 006
MPN: 108010040
SCREW
- Valid for 2.8 A.T. version
# 008
MPN: 138200080
SPRING WASHER
- Valid for 2.8 A.T. version
# 009
MPN: 125100080
NUT
- Valid for 2.8 A.T. version
from £0.86
from £0.86

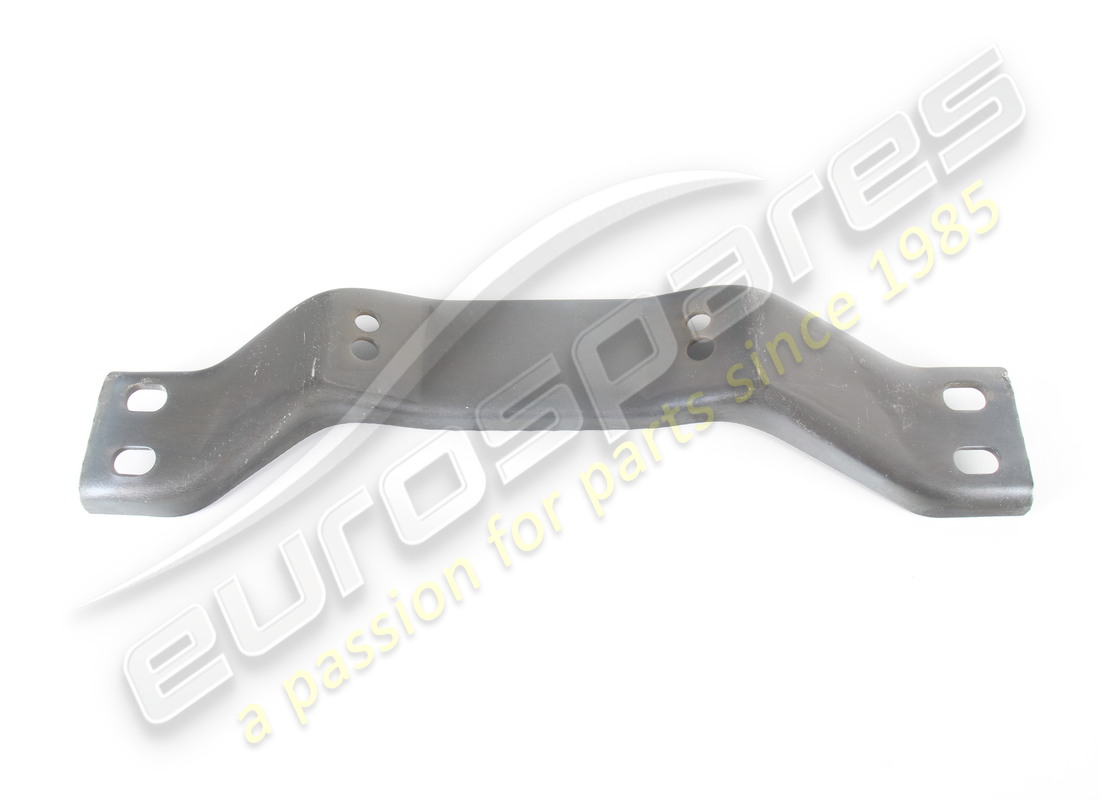

# 010
MPN: 379006339
AUTOMATIC TRANSMISSION SUPPORT
- Valid for 2.8 A.T. version
from £10.31
from £10.31
# 011
MPN: 314661312
CONVERTER BELL
- Valid for 2.8 A.T. version
from £158.04
from £158.04
# 012
MPN: 369000341
FLAT WASHER
- Valid for 2.8 A.T. version
from £1.11
from £1.11
# 013
MPN: 313655106
SWITCH
- Valid for 2.8 A.T. version
from £129.35
from £129.35
# 014
MPN: 314855312
FIXING PLATE
- Valid for 2.8 A.T. version
from £1.11
from £1.11
# 015
MPN: 314855106
KICK DOWN CONTROL CABLE
- Valid for 2.8 A.T. version
from £36.40
from £36.40
# 016
MPN: 314855336
GASKET
- Valid for 2.8 A.T. version
from £5.23
from £5.23
# 017
MPN: 314855323
GASKET
- Valid for 2.8 A.T. version
from £3.33
from £3.33
# 018
MPN: 314855322
OIL PLUG
- Valid for 2.8 A.T. version
from £2.38
from £2.38
# 019
MPN: 314855309
GASKET
- Valid for 2.8 A.T. version
from £17.60
from £17.60
# 020
MPN: 314855110
OIL FILTER
- Valid for 2.8 A.T. version
from £58.27
from £58.27
# 021
MPN: 314855302
HOOK SUPPORT
- Valid for 2.8 A.T. version
from £1.45
from £1.45
# 022
MPN: 314855331
SEAL RING
- Valid for 2.8 A.T. version
from £20.78
from £20.78
# 023
MPN: 128350080
SELF LOCKING NUT
- Valid for 2.8 A.T. version
Supersession
Supersession
# 024
MPN: 314855401
REAR SEAL RING
- Valid for 2.8 A.T. version
from £27.20
from £27.20
# 025
MPN: 314855102
oil sump
- Valid for 2.8 A.T. version
from £46.47
from £46.47
# 026
MPN: 314855301
SUPPORT HOOK
- Valid for 2.8 A.T. version
from £1.01
from £1.01
# 027
MPN: 314855313
SCREW
- Valid for 2.8 A.T. version
from £1.90
from £1.90
# 028
MPN: 479004420
COLUMN
- Valid for 2.8 A.T. version
from £27.68
from £27.68
# 029
MPN: 128350060
SELF LOCKING NUT
- Valid for 2.8 A.T. version
# 030
MPN: 364814101
CONVERTER
- Valid for 2.8 A.T. version
from £1,114.01
from £1,114.01
# 031
MPN: 138210180
SPRING WASHER
- Valid for 2.8 A.T. version
# 032
MPN: 314655308
BOLT
- Valid for 2.8 A.T. version
from £3.74
from £3.74
# 033
MPN: 364814009
AUT. TRANSM. WITH BELL AND CONVERTER
- Valid for 2.8 A.T. version
from £1,260.00
from £1,260.00
# 035
MPN: 101208020
SCREW
- Valid for 2.8 A.T. version
# 036
MPN: 163020080
WASHER
- Valid for 2.8 A.T. version
from £1.11
from £1.11
# 037
MPN: 314855307
BRACKET
- Valid for 2.8 A.T. version
from £10.22
from £10.22
# 038
MPN: 324853120
RUBBER BUSHING
- Valid for 2.8 A.T. version
from £17.36
from £17.36
This part replaces part number 314855119 - and 1 more. Click to view details
# 039
MPN: 314820303
SCREW
- Valid for 2.8 A.T. version
from £12.77
from £12.77
# 040
MPN: 314855306
WASHER
- Valid for 2.8 A.T. version
from £2.22
from £2.22
