maserati qtp v6 (1996) steering wheel with airbag parts diagram

031 - Steering Wheel With Airbag

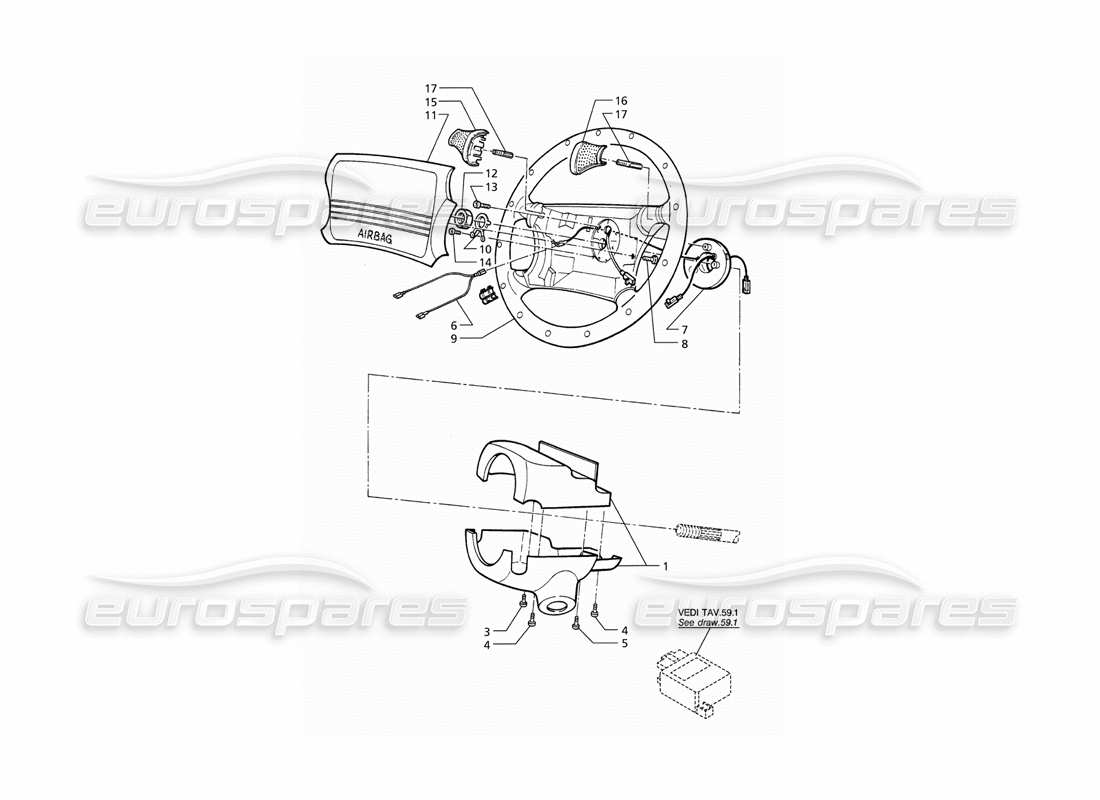

Maserati QTP V6 (1996) Steering Wheel With Airbag Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 003
                        MPN: 97919
                        SCREW
                        from £1.08
                        from £1.08
                        SCREW Genuine Maserati Part - New (to order)
                        # 006
                        MPN: 373000168
                        CABLE
                        from £2.46
                        from £2.46
                        WIRING Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373300210
                        CLOCK SPRING
                        Supersession
                        Supersession
                        Genuine Maserati Part (no longer available to order)
                        # 009
                        MPN: 377800104
                        STEERING WHEEL
                        from £420.00
                        from £420.00
                        STEERING WHEEL Genuine Maserati Part - New (to order)
                        STEERING WHEEL Genuine Maserati Part - Used In stock
                        WOODEN TRIM FINISH
                        # 010
                        MPN: 373300338
                        SPRING OF CLOCK SPRING
                        from £3.31
                        from £3.31
                        MOLLA PER CONTATTO SPIRALATO Genuine Maserati Part - New In stock
                        # 011
                        MPN: 377800103
                        HUB COVER WITH AIRBAG
                        from £262.50
                        from £262.50
                        AIR BAG ASSY Genuine Maserati Part - New (to order)
                        AIR BAG ASSY Genuine Maserati Part - Used In stock
                        # 012
                        MPN: 56249
                        NUT
                        from £2.55
                        from £2.55
                        DADO 16X1,5X8 CH24 UNI 5589 Genuine Maserati Part - New In stock
                        # 013
                        -
                        SCREW
                        # 014
                        -
                        SCREW
                        # 015
                        MPN: 373300310
                        LH HORN BUTTON
                        from £21.89
                        from £21.89
                        This part replaces part number 373300314
                        LH HORN BUTTON ON STEER.WHEE Genuine Maserati Part - New (to order)
                        # 015
                        MPN: 373300314
                        LH HORN BUTTON (LEATHER)
                        - Only for Japan market vehicles
                        Supersession
                        Supersession
                        Genuine Maserati Part (no longer available to order)
                        # 016
                        MPN: 373300311
                        RH HORN BUTTON
                        from £17.27
                        from £17.27
                        This part replaces part number 373300315
                        HORN BUTTON Genuine Maserati Part - New (to order)
                        # 016
                        MPN: 373300315
                        RH HORN BUTTON (LEATHER)
                        - Only for Japan market vehicles
                        Supersession
                        Supersession
                        Genuine Maserati Part (no longer available to order)
                        # 017
                        -
                        STUD BOLT
