maserati qtp v6 (1996) power steering system (lhd) parts diagram

033GS - Power Steering System (LHD)

Maserati QTP V6 (1996) Power Steering System (LHD) Parts Diagram

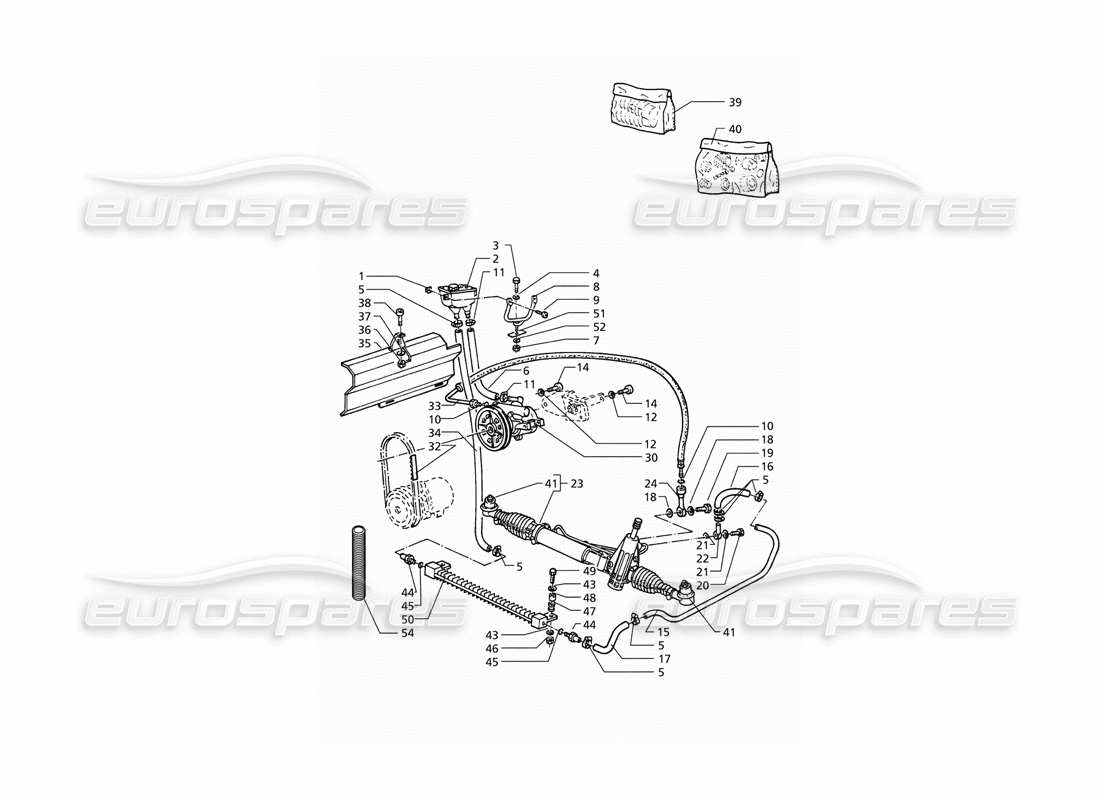

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 377800225
                                                                    STEERING RACK ASSY
                                                                    (LHD model)
                                                                    from £1,180.54
                                                                    from £1,180.54
                                                                    This part replaces part number 367800225
                                                                    # 001
                                                                    MPN: 377819125
                                                                    STEERING RACK ASSY
                                                                    (RHD model)
                                                                    from £525.00
                                                                    from £525.00
                                                                    # 002
                                                                    MPN: 317832104
                                                                    PUMP WITH PULLEY
                                                                    from £266.07
                                                                    from £266.07
                                                                    # 003
                                                                    MPN: 310232040
                                                                    KIT FOR PIPE AND UNION REPLACEMENT
                                                                    from £31.84
                                                                    from £31.84
                                                                    # 004
                                                                    MPN: 377840207
                                                                    TUBE FROM PUMP TO STEERING BOX
                                                                    from £73.26
                                                                    from £73.26
                                                                    # 005
                                                                    MPN: 192415108
                                                                    O RING
                                                                    from £1.28
                                                                    from £1.28
                                                                    # 006
                                                                    MPN: 390250080
                                                                    KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                    from £126.88
                                                                    from £126.88
                                                                    This part replaces part number 320250033
                                                                    # 007
                                                                    MPN: 317851602
                                                                    GASKET
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 008
                                                                    MPN: 317832380
                                                                    UNION SCREW
                                                                    from £9.04
                                                                    from £9.04
                                                                    # 009
                                                                    MPN: 317851601
                                                                    GASKET
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 010
                                                                    MPN: 317851387
                                                                    UNION SCREW
                                                                    Supersession
                                                                    Supersession
                                                                    # 011
                                                                    MPN: 317851386
                                                                    EYELET UNION
                                                                    from £5.78
                                                                    from £5.78
                                                                    # 012
                                                                    MPN: 317832389
                                                                    CLAMP
                                                                    from £1.93
                                                                    from £1.93
                                                                    # 013
                                                                    MPN: 377801133
                                                                    TIE ROD
                                                                    from £85.48
                                                                    from £85.48
                                                                    # 014
                                                                    MPN: 397850636
                                                                    OIL RETURN SLEEVE
                                                                    from £1.70
                                                                    from £1.70
                                                                    # 015
                                                                    MPN: 367801200
                                                                    BULKHEAD
                                                                    from £93.61
                                                                    from £93.61
                                                                    This part replaces part number 317853350
                                                                    # 016
                                                                    MPN: 138411080
                                                                    SCREW
                                                                    # 017
                                                                    MPN: 138403022
                                                                    WASHER
                                                                    # 018
                                                                    MPN: 168403022
                                                                    CLAMP
                                                                    # 019
                                                                    MPN: 367817618
                                                                    OIL COOLER
                                                                    from £80.43
                                                                    from £80.43
                                                                    # 020
                                                                    MPN: 367800370
                                                                    SLEEVE
                                                                    from £15.22
                                                                    from £15.22
                                                                    # 021
                                                                    MPN: 397850130
                                                                    OIL TANK
                                                                    from £20.92
                                                                    from £20.92
                                                                    This part replaces part number 317853130
                                                                    # 022
                                                                    MPN: 397870131
                                                                    TANK FIXING BRACKET
                                                                    from £13.98
                                                                    from £13.98
                                                                    # 023
                                                                    MPN: 119148130
                                                                    SCREW
                                                                    from £0.84
                                                                    from £0.84
                                                                    # 024
                                                                    MPN: 163610050
                                                                    SPRING CLIP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 028
                                                                    MPN: 317837372
                                                                    POWER STEERING BELT
                                                                    from £12.50
                                                                    from £12.50
                                                                    # 031
                                                                    MPN: 397850366
                                                                    PLATE
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 034
                                                                    MPN: 377840193
                                                                    OIL RETURN PIPE
                                                                    from £26.92
                                                                    from £26.92
                                                                    # 035
                                                                    MPN: 318720333
                                                                    CORRUGATED TUBE
                                                                    - Section in metres - order minimum amount of 5 m or multiples
                                                                    from £5.14
                                                                    from £5.14
                                                                    # 036
                                                                    MPN: 397850609
                                                                    UNION
                                                                    from £1.77
                                                                    from £1.77
                                                                    # 037
                                                                    MPN: 397850608
                                                                    GASKET
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 038
                                                                    MPN: 377830440
                                                                    PIPE CLAMP
                                                                    from £0.70
                                                                    from £0.70

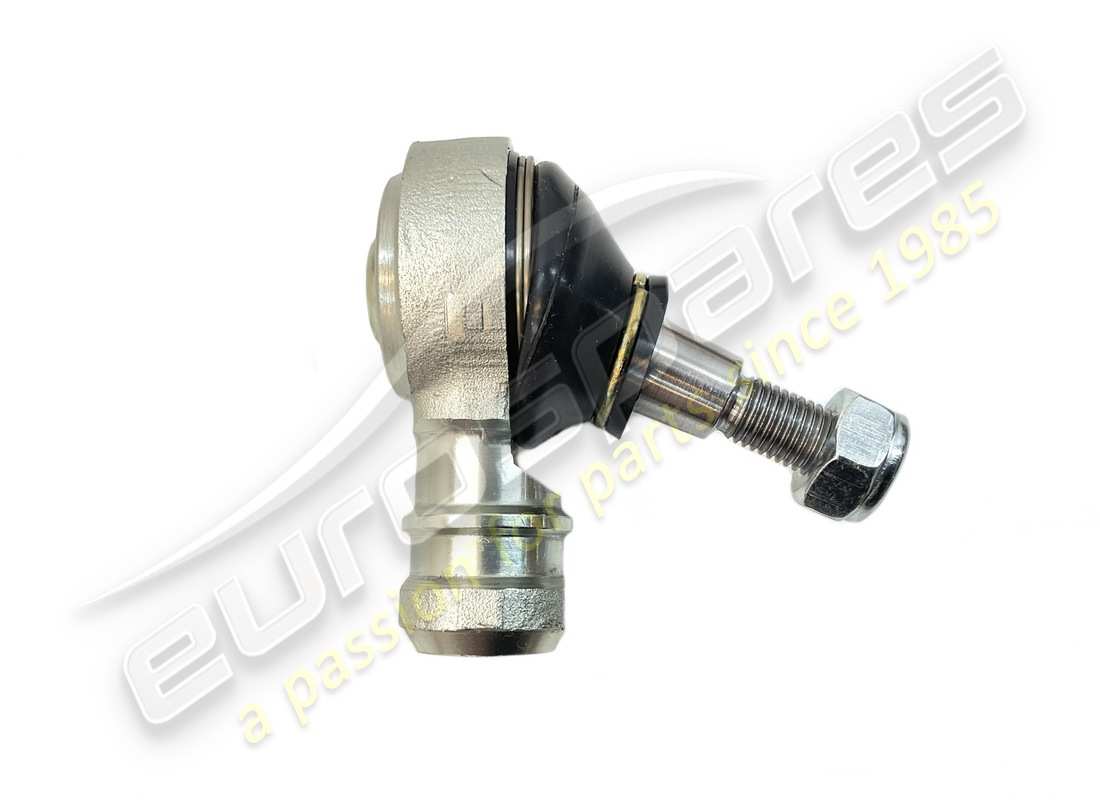

                                                                    # 041
                                                                    MPN: 377801133
                                                                    Track Rod Ends
                                                                    from £85.48
                                                                    from £85.48
