![maserati qtp v6 (1996) rear suspension pre modification and anti roll bar parts diagram](/img/CxIAAMTaOW7Op36ZDLsufVdSBGWIRqFBrvNxLv24MEflUSAXb5bGlgED/maserati-qtp-v6-(1996)-part-diagram-036.1.webp)

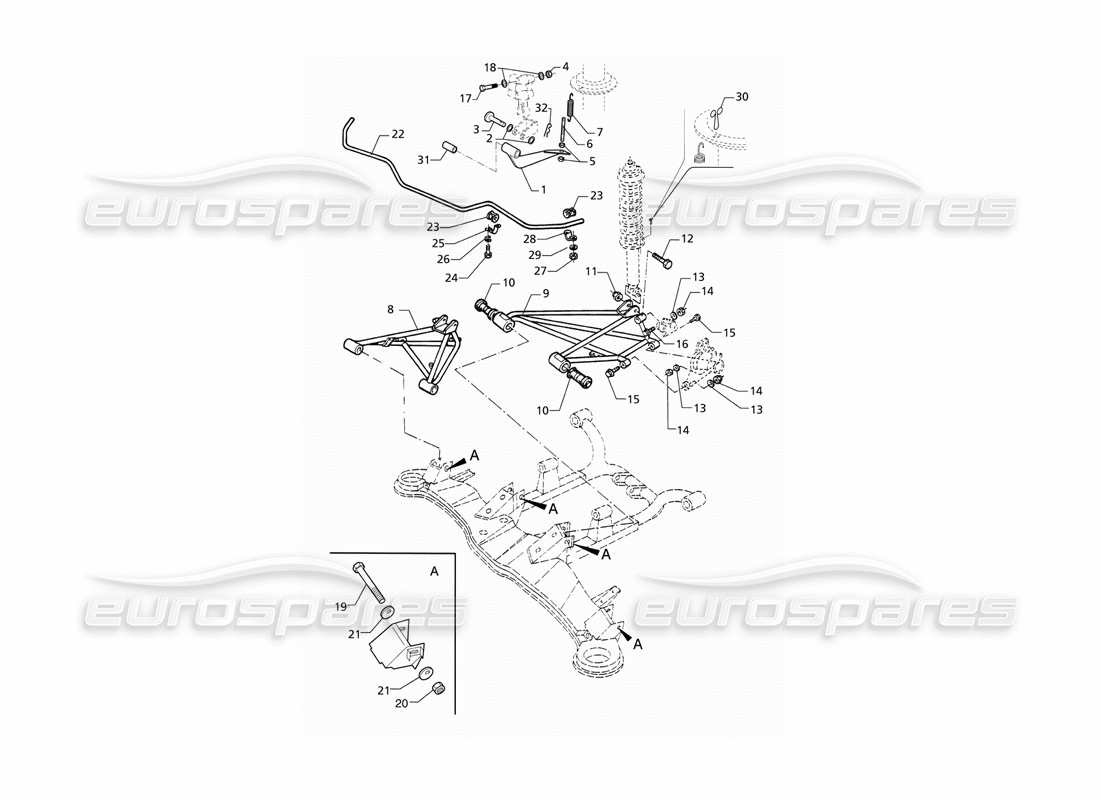

036.1 - Rear Suspension Pre Modification and Anti Roll Bar
Maserati QTP V6 (1996) Rear Suspension Pre Modification and Anti Roll Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 377400156
LOAD APPORTIONING CONTROL LEVER
from £13.76
from £13.76
# 002
MPN: 135100084
WASHER
# 003
MPN: 157508040
PIN
from £9.90
from £9.90
# 004
MPN: 128350080
SELF LOCKING NUT
Supersession
Supersession
# 005
MPN: 122600050
ADJUSTING NUT
# 006
MPN: 377400327
ADJUSTING SCREW
from £2.34
from £2.34
# 007
MPN: 377400326
SCREW
from £4.33
from £4.33
# 008
MPN: 377000102
RH ARM
from £292.82
from £292.82
# 009
MPN: 377000101
LH ARM
from £345.77
from £345.77
# 010
MPN: 317020100
RUBBER BUSHING
from £34.48
from £34.48
# 011
MPN: 12575811
SELF LOCKING NUT
from £1.32
from £1.32
# 012
MPN: 100814070
SCREW
# 013
MPN: 397050358
WASHER
from £4.59
from £4.59
# 014
MPN: 128300120
SELF LOCKING NUT
# 015
MPN: 397050353
SCREW
from £24.86
from £24.86
# 016
MPN: 397050354
SCREW
from £25.33
from £25.33
# 017
MPN: 84642
BOLT
Supersession
Supersession
# 018
MPN: 317832393
WASHER
# 019
MPN: 377000350
SCREW
from £17.85
from £17.85
This part replaces part number 317020118
# 020
MPN: 128310120
NUT
# 021
MPN: 377000352
WASHER WITH ECCENTRIC HOLE
from £7.02
from £7.02
This part replaces part number 317020352
# 022
MPN: 377000362
STABILIZER BAR DIA. 15
from £57.10
from £57.10
# 023
MPN: 367002366
FLEXIBLE BLOCK DIA. 15
from £34.71
from £34.71
# 024
MPN: 101208020
SCREW
# 025
MPN: 397050374
U BOLT
from £1.95
from £1.95
# 026
MPN: 138200080
WASHER
# 027
MPN: 128350080
NUT
Supersession
Supersession
# 028
MPN: 397050368
U BOLT
from £2.88
from £2.88
# 029
MPN: 135100084
WASHER
# 030
MPN: 377000344
CLIP
from £20.42
from £20.42
# 031
MPN: 377400328
BUSH
from £3.27
from £3.27
# 032
MPN: 97929
SPLIT PIN
from £0.70
from £0.70
