maserati qtp v6 (1996) pedal assy and clutch pump (lhd) parts diagram

041GS - Pedal Assy and Clutch Pump (LHD)

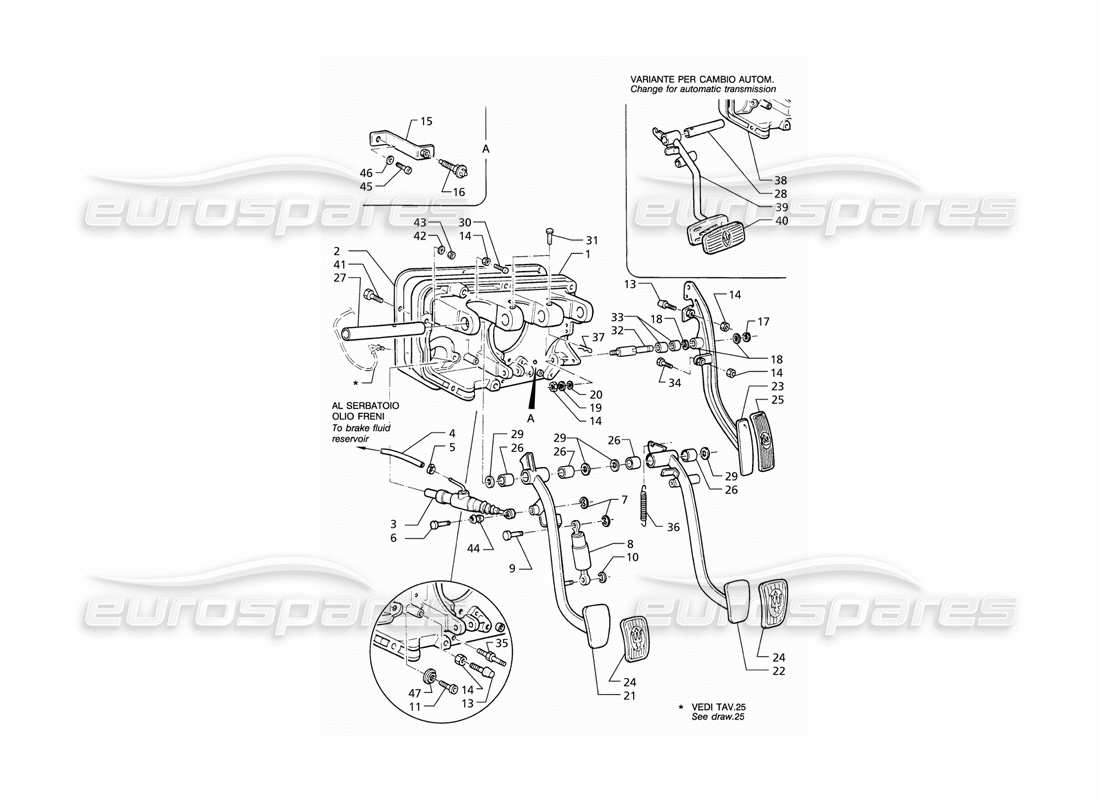

Maserati QTP V6 (1996) Pedal Assy and Clutch Pump (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 378405304
                                                        SUPPORT FOR PEDAL ASSY
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £31.35
                                                        from £31.35
                                                        # 002
                                                        MPN: 378400348
                                                        GASKET
                                                        from £9.66
                                                        from £9.66
                                                        # 003
                                                        MPN: 378200101
                                                        PUMP
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £225.00
                                                        from £225.00
                                                        # 004
                                                        MPN: 95408
                                                        TUBE
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        # 005
                                                        MPN: 559221338
                                                        CLAMP
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £0.69
                                                        from £0.69
                                                        # 006
                                                        MPN: 378400358
                                                        PIN
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £14.77
                                                        from £14.77
                                                        # 007
                                                        MPN: 71509
                                                        SEEGER RING
                                                        Supersession
                                                        Supersession
                                                        # 008
                                                        MPN: 378400854
                                                        CLUTCH PEDAL SERVO CONTROL
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £41.19
                                                        from £41.19
                                                        # 009
                                                        MPN: 367402327
                                                        PIN
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £9.81
                                                        from £9.81
                                                        # 010
                                                        MPN: 150800090
                                                        SEEGER RING
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £0.47
                                                        from £0.47
                                                        # 013
                                                        MPN: 318420114
                                                        LIMIT STOP
                                                        from £1.91
                                                        from £1.91
                                                        # 015
                                                        MPN: 368404120
                                                        IDROSTOP SUPPORT
                                                        from £9.20
                                                        from £9.20
                                                        # 016
                                                        MPN: 323850107
                                                        IDROSTOP
                                                        Supersession
                                                        Supersession
                                                        # 017
                                                        MPN: 150800090
                                                        SEEGER RING
                                                        from £0.47
                                                        from £0.47
                                                        # 018
                                                        MPN: 318420346
                                                        TEFLON WASHER
                                                        from £1.08
                                                        from £1.08
                                                        # 021
                                                        MPN: 378430122
                                                        CLUTCH PEDAL
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £241.06
                                                        from £241.06
                                                        # 022
                                                        MPN: 378430104
                                                        BRAKE PEDAL
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £212.21
                                                        from £212.21
                                                        # 023
                                                        MPN: 378401113
                                                        SPEED PEDAL
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £39.99
                                                        from £39.99
                                                        # 023
                                                        MPN: 378431113
                                                        SPEED PEDAL
                                                        - Valid for 2.8 A.T. version
                                                        from £18.17
                                                        from £18.17
                                                        # 024
                                                        MPN: 378430300
                                                        BRAKE AND CLUTCH PEDAL COVER
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £73.57
                                                        from £73.57
                                                        This part replaces part number 191496
                                                        # 025
                                                        MPN: 318420301
                                                        SPEED PEDAL COVER
                                                        from £1.51
                                                        from £1.51
                                                        # 026
                                                        MPN: 318420320
                                                        BUSH
                                                        from £9.66
                                                        from £9.66
                                                        # 027
                                                        MPN: 378400329
                                                        PIN
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £33.07
                                                        from £33.07
                                                        # 028
                                                        MPN: 368402336
                                                        PIN
                                                        - Valid for 2.8 A.T. version
                                                        from £33.07
                                                        from £33.07
                                                        # 029
                                                        MPN: 368402321
                                                        SPACER WASHER
                                                        from £1.08
                                                        from £1.08
                                                        # 030
                                                        MPN: 364700180
                                                        LIMIT STOP
                                                        from £2.83
                                                        from £2.83
                                                        # 031
                                                        MPN: 378419377
                                                        PIN
                                                        from £11.28
                                                        from £11.28
                                                        # 032
                                                        MPN: 378400341
                                                        PIN
                                                        from £15.46
                                                        from £15.46
                                                        # 033
                                                        MPN: 318420334
                                                        BUSH
                                                        from £1.55
                                                        from £1.55
                                                        # 034
                                                        MPN: 101206040
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 035
                                                        MPN: 378400368
                                                        PIN
                                                        from £81.16
                                                        from £81.16
                                                        # 036
                                                        MPN: 368402308
                                                        SPRING
                                                        from £2.97
                                                        from £2.97
                                                        # 037
                                                        MPN: 58841309
                                                        SAFETY CLIP
                                                        from £1.99
                                                        from £1.99
                                                        This part replaces part number 670000498 - and 2 more. Click to view details
                                                        # 038
                                                        MPN: 378406304
                                                        PEDAL ASSY SUPPORT
                                                        - Valid for 2.8 A.T. version
                                                        from £29.31
                                                        from £29.31
                                                        # 039
                                                        MPN: 378431104
                                                        PEDAL
                                                        - Valid for 2.8 A.T. version
                                                        from £170.94
                                                        from £170.94
                                                        # 040
                                                        MPN: 318432300
                                                        PEDAL COVER
                                                        - Valid for 2.8 A.T. version
                                                        from £2.55
                                                        from £2.55
                                                        # 043
                                                        MPN: 128350080
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        # 044
                                                        MPN: 9532
                                                        BUSHING SECUR. CLUTCH PUMP
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £2.32
                                                        from £2.32
                                                        # 045
                                                        MPN: 108006012
                                                        SCREW
                                                        from £0.54
                                                        from £0.54
                                                        # 046
                                                        MPN: 312220411
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 047
                                                        MPN: 378419378
                                                        BUSH
                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                        from £4.63
                                                        from £4.63
