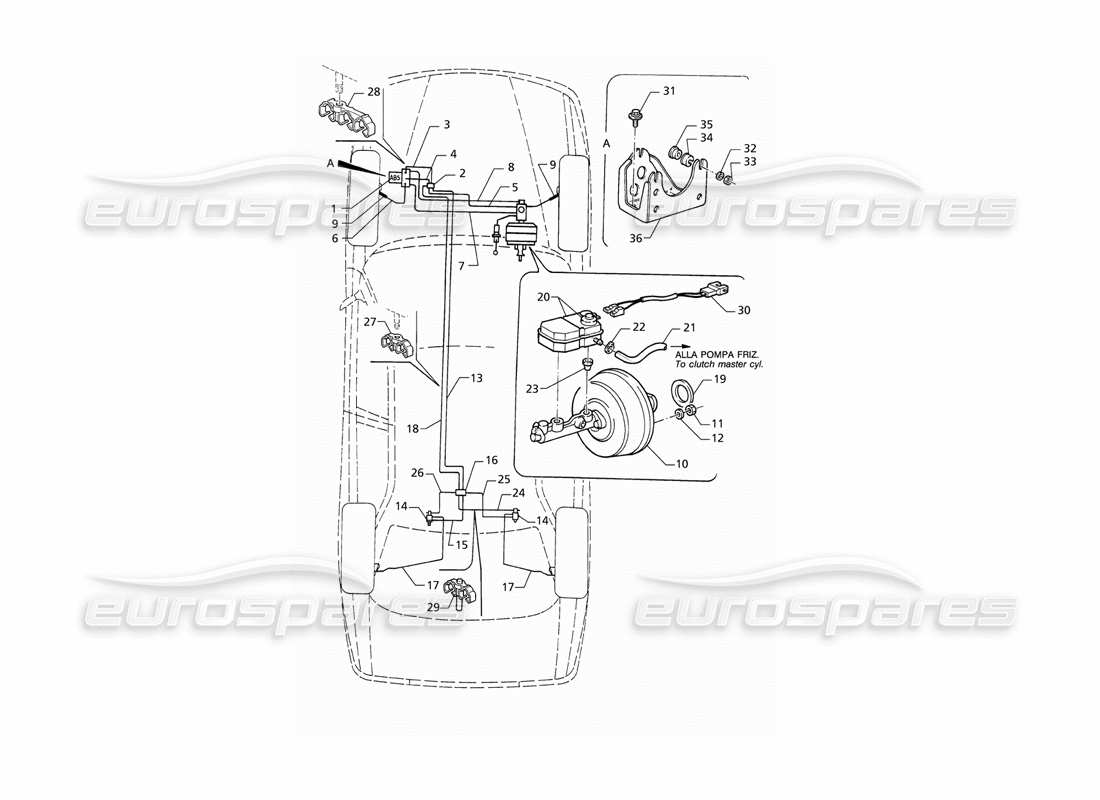

Maserati QTP V6 (1996) ABS Hydraulic Brake Lines (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 363802315
                                                                  A.B.S. UNIT
                                                                  from £895.00
                                                                  from £895.00
                                                                  # 002
                                                                  MPN: 367402325
                                                                  TUBE BRANCHING BLOCK
                                                                  from £17.15
                                                                  from £17.15
                                                                  # 003
                                                                  MPN: 377430149
                                                                  RETURN TUBE FROM BLOCK
                                                                  from £14.23
                                                                  from £14.23
                                                                  # 004
                                                                  MPN: 377430144
                                                                  DELIVERY TUBE TO BLOCK
                                                                  from £13.18
                                                                  from £13.18
                                                                  # 005
                                                                  MPN: 367402146
                                                                  FRONT RH BRAKE CONNECTING TUBE
                                                                  from £18.10
                                                                  from £18.10
                                                                  # 006
                                                                  MPN: 377430143
                                                                  FRONT LH BRAKE CONNECTING TUBE
                                                                  Supersession
                                                                  Supersession
                                                                  # 007
                                                                  MPN: 377419140
                                                                  FRONT BRAKE UNIT - PUMP CONNECTING TUBE
                                                                  from £27.94
                                                                  from £27.94
                                                                  # 008
                                                                  MPN: 377419142
                                                                  REAR BRAKE UNIT - PUMP CONNECTING TUBE
                                                                  from £24.30
                                                                  from £24.30
                                                                  # 009
                                                                  MPN: 367402129
                                                                  FRONT BRAKE HOSE
                                                                  from £15.02
                                                                  from £15.02
                                                                  # 010
                                                                  MPN: 377430112
                                                                  BRAKE BOOSTER WITH MASTER CYLINDER
                                                                  from £393.88
                                                                  from £393.88
                                                                  This part replaces part number 377400112 which we have in stock - and 2 more. Click to view details
                                                                  # 011
                                                                  MPN: 125100080
                                                                  NUT
                                                                  from £0.86
                                                                  from £0.86
                                                                  # 013
                                                                  MPN: 377400161
                                                                  DELIVERY TUBE TO REAR BRAKES
                                                                  from £29.02
                                                                  from £29.02
                                                                  This part replaces part number 377400159
                                                                  # 014
                                                                  MPN: 367402336
                                                                  BRAKE PROPORTIONING VALVE
                                                                  from £106.86
                                                                  from £106.86
                                                                  # 015
                                                                  MPN: 377400157
                                                                  LH MANIFOLD - BLOCK CONNECTING TUBE
                                                                  from £10.77
                                                                  from £10.77
                                                                  # 016
                                                                  MPN: 377400325
                                                                  TUBE BRANCHING BLOCK
                                                                  from £38.84
                                                                  from £38.84
                                                                  # 017
                                                                  MPN: 377400155
                                                                  REAR BRAKE HOSE
                                                                  from £42.27
                                                                  from £42.27
                                                                  # 018
                                                                  MPN: 377400162
                                                                  RETUR TUBE TO BLOCK
                                                                  from £29.02
                                                                  from £29.02
                                                                  # 019
                                                                  MPN: 367402309
                                                                  RING
                                                                  from £1.55
                                                                  from £1.55
                                                                  # 020
                                                                  MPN: 377400104
                                                                  BRAKE FLUID RESERVOIR
                                                                  from £10.04
                                                                  from £10.04
                                                                  # 022
                                                                  MPN: 559221338
                                                                  CLAMP
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 023
                                                                  MPN: 377400301
                                                                  GROMMET
                                                                  from £1.89
                                                                  from £1.89
                                                                  # 024
                                                                  MPN: 377400154
                                                                  RH MANIFOLD - BLOCK CONNECTING TUBE
                                                                  from £14.44
                                                                  from £14.44
                                                                  # 025
                                                                  MPN: 377400158
                                                                  RH MANIFOLD - BLOCK CONNECTING TUBE
                                                                  from £12.76
                                                                  from £12.76
                                                                  # 026
                                                                  MPN: 377400153
                                                                  LH MANIFOLD - BLOCK CONNECTING TUBE
                                                                  from £11.13
                                                                  from £11.13
                                                                  # 027
                                                                  MPN: 379200408
                                                                  CLAMP
                                                                  - As necessary
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 028
                                                                  MPN: 377419334
                                                                  CLAMP
                                                                  - As necessary
                                                                  from £1.55
                                                                  from £1.55
                                                                  # 029
                                                                  MPN: 83012
                                                                  CLAMP
                                                                  - As necessary
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 030
                                                                  MPN: 373007175
                                                                  WIRING EXTENSION
                                                                  from £6.71
                                                                  from £6.71
                                                                  # 031
                                                                  MPN: 11730624
                                                                  SCREW
                                                                  from £0.52
                                                                  from £0.52
                                                                  # 034
                                                                  MPN: 363802316
                                                                  CUP
                                                                  # 035
                                                                  MPN: 363802317
                                                                  RUBBER BUFFER
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 036
                                                                  MPN: 363802116
                                                                  A.B.S. SUPPORT
                                                                  from £57.75
                                                                  from £57.75
