maserati qtp v6 (1996) body shell: boot floor and inner structures parts diagram

045.2 - Body Shell: Boot Floor and Inner Structures

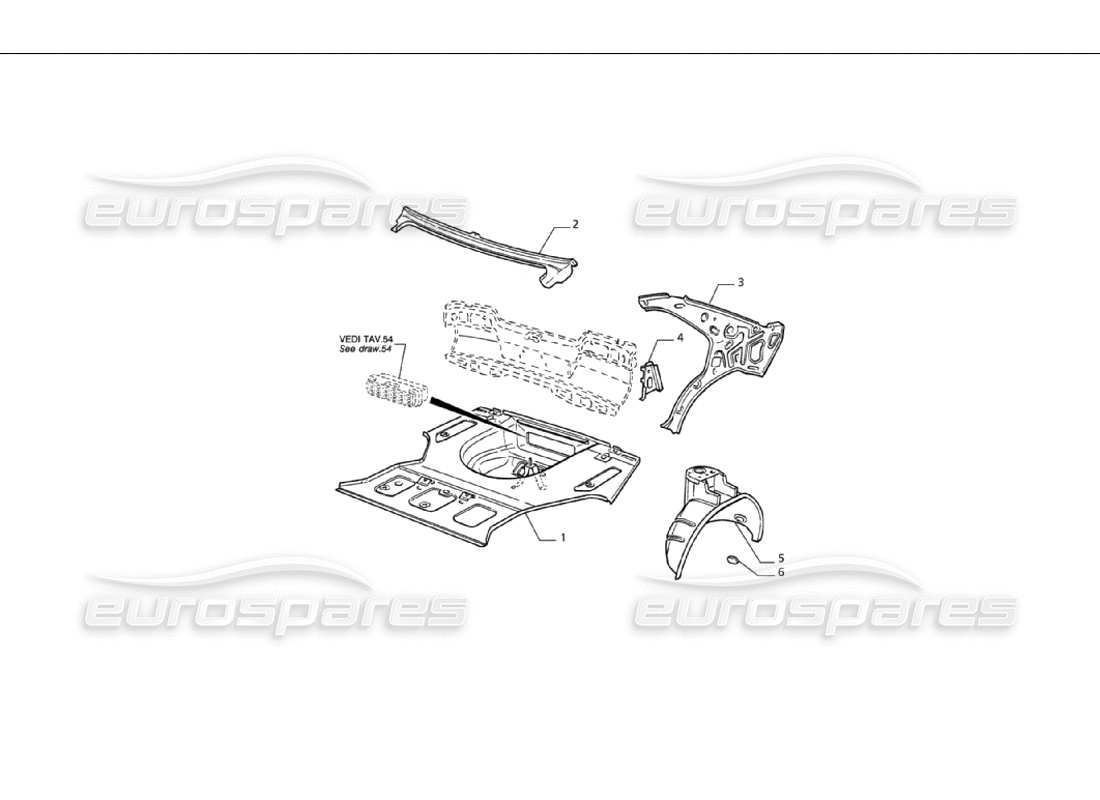

Maserati QTP V6 (1996) Body Shell: Boot Floor and Inner Structures Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 371330191
              REAR FLOOR
              Supersession
              Supersession
              # 002
              MPN: 372500458
              UPPER PARCEL SHELF CHANNEL
              from £34.49
              from £34.49
              # 003
              MPN: 372500401
              REAR LH PILLAR INNER FRAME
              from £65.47
              from £65.47
              # 003
              MPN: 372500402
              REAR RH PILLAR INNER FRAME
              from £65.47
              from £65.47
              # 004
              MPN: 372500223
              INNER LH REINFORCEMENT
              from £16.72
              from £16.72
              # 004
              MPN: 372500224
              INNER RH REINFORCEMENT
              from £16.72
              from £16.72
              # 005
              MPN: 331320219
              INNER LH WHEELARCH
              from £157.77
              from £157.77
              # 005
              MPN: 331320220
              INNER RH WHEELARCH
              from £149.88
              from £149.88
              # 006
              MPN: 312120307
              PLUG
              from £0.69
              from £0.69
