maserati qtp v6 (1996) front bumper parts diagram

053 - FRONT BUMPER

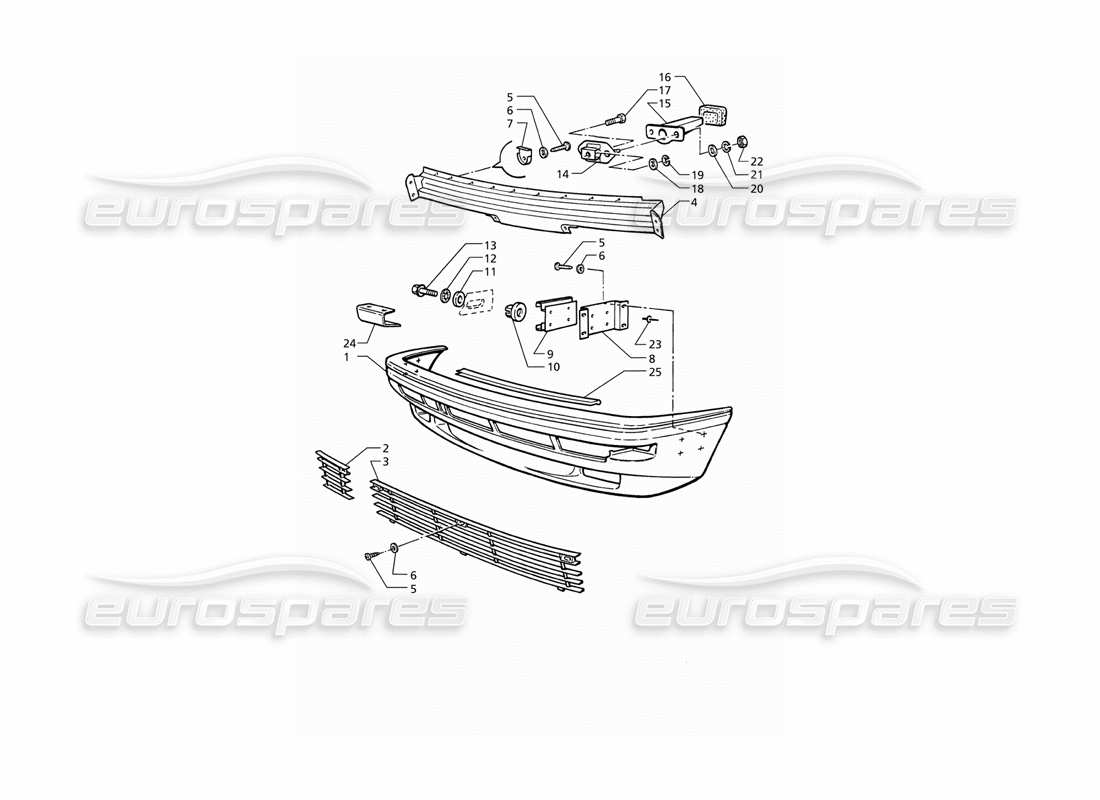

Maserati QTP V6 (1996) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 376300102
                                                  FRONT BUMPER
                                                  Supersession
                                                  Supersession
                                                  # 002
                                                  MPN: 376300348
                                                  ABS TOW HITCH FLAP
                                                  from £99.75
                                                  from £99.75
                                                  This part replaces part number 376300344
                                                  # 003
                                                  MPN: 376300346
                                                  CENTRE ABS GRILL
                                                  from £671.06
                                                  from £671.06
                                                  This part replaces part number 376300342
                                                  # 004
                                                  MPN: 376330120
                                                  REINFORCEMENT CROSS MEMBER
                                                  from £178.48
                                                  from £178.48
                                                  This part replaces part number 376300120
                                                  # 006
                                                  MPN: 135000043
                                                  WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 007
                                                  MPN: 366300381
                                                  SPECIAL WASHER
                                                  from £1.39
                                                  from £1.39
                                                  # 008
                                                  MPN: 376300356
                                                  RAIL SUPPORT
                                                  from £6.97
                                                  from £6.97
                                                  # 009
                                                  MPN: 316353353
                                                  RAIL
                                                  from £8.66
                                                  from £8.66
                                                  # 010
                                                  MPN: 316353127
                                                  BUMPER SECURING ROLLER
                                                  from £1.08
                                                  from £1.08
                                                  # 011
                                                  MPN: 136110090
                                                  FLAT WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 014
                                                  MPN: 396350117
                                                  BRACKET
                                                  Supersession
                                                  Supersession
                                                  # 015
                                                  MPN: 376300124
                                                  BRACKET
                                                  from £6.72
                                                  from £6.72
                                                  # 016
                                                  MPN: 316351322
                                                  GASKET
                                                  from £1.93
                                                  from £1.93
                                                  # 018
                                                  MPN: 136110110
                                                  WASHER
                                                  from £2.16
                                                  from £2.16
                                                  # 022
                                                  MPN: 125100080
                                                  NUT
                                                  from £0.86
                                                  from £0.86
                                                  # 024
                                                  MPN: 376330670
                                                  RH FOGLAMP BRACKET
                                                  from £18.09
                                                  from £18.09
                                                  This part replaces part number 376300358
                                                  # 024
                                                  MPN: 376330671
                                                  LH FOGLAMP BRACKET
                                                  from £38.49
                                                  from £38.49
                                                  This part replaces part number 376300357
                                                  # 025
                                                  MPN: 378701417
                                                  BUMPER UPPER SEAL
                                                  - Section in metres order minimum amount of 1 m
                                                  from £2.85
                                                  from £2.85
