maserati qtp v6 (1996) rear lights parts diagram

057 - Rear Lights

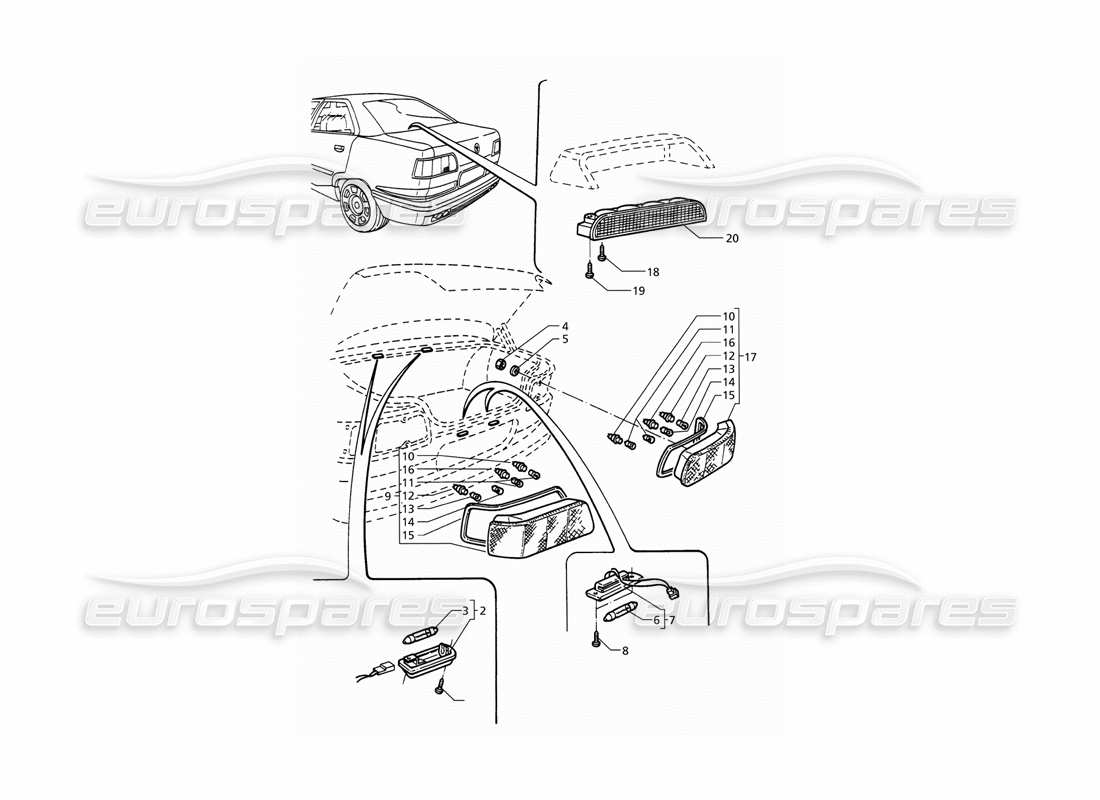

Maserati QTP V6 (1996) Rear Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 119142160
                            SCREW
                            from £0.88
                            from £0.88
                            # 002
                            MPN: 393150120
                            BOOT LIGHT
                            from £7.71
                            from £7.71
                            # 003
                            MPN: 87560500
                            12V 5W BULB
                            from £0.87
                            from £0.87
                            # 006
                            MPN: 87560500
                            12V 5W BULB
                            from £0.87
                            from £0.87
                            # 007
                            MPN: 363100111
                            NUMBER PLATE LIGHT
                            from £6.74
                            from £6.74
                            # 008
                            MPN: 119129130
                            SCREW
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 373100138
                            REAR LH TAILLIGHT ASSY
                            from £201.73
                            from £201.73
                            # 010
                            -
                            BULB HOLDER
                            - Not supplied
                            # 011
                            -
                            12V 5W BULB
                            - Not supplied
                            # 012
                            -
                            BULB HOLDER
                            - Not supplied
                            # 013
                            -
                            YELLOW 12V 21W BULB
                            - Not supplied
                            # 014
                            -
                            TWO LIGHT 12V 21 5W BULB
                            - Not supplied
                            # 015
                            -
                            SEAL LIGHT BULB HOLDER
                            - Not supplied
                            # 016
                            -
                            TWO
                            - Not supplied
                            # 017
                            MPN: 373100137
                            REAR RH TAILLIGHT ASSY
                            from £176.89
                            from £176.89
                            # 019
                            MPN: 119929320
                            SCREW
                            from £1.08
                            from £1.08
                            # 020
                            MPN: 373100132

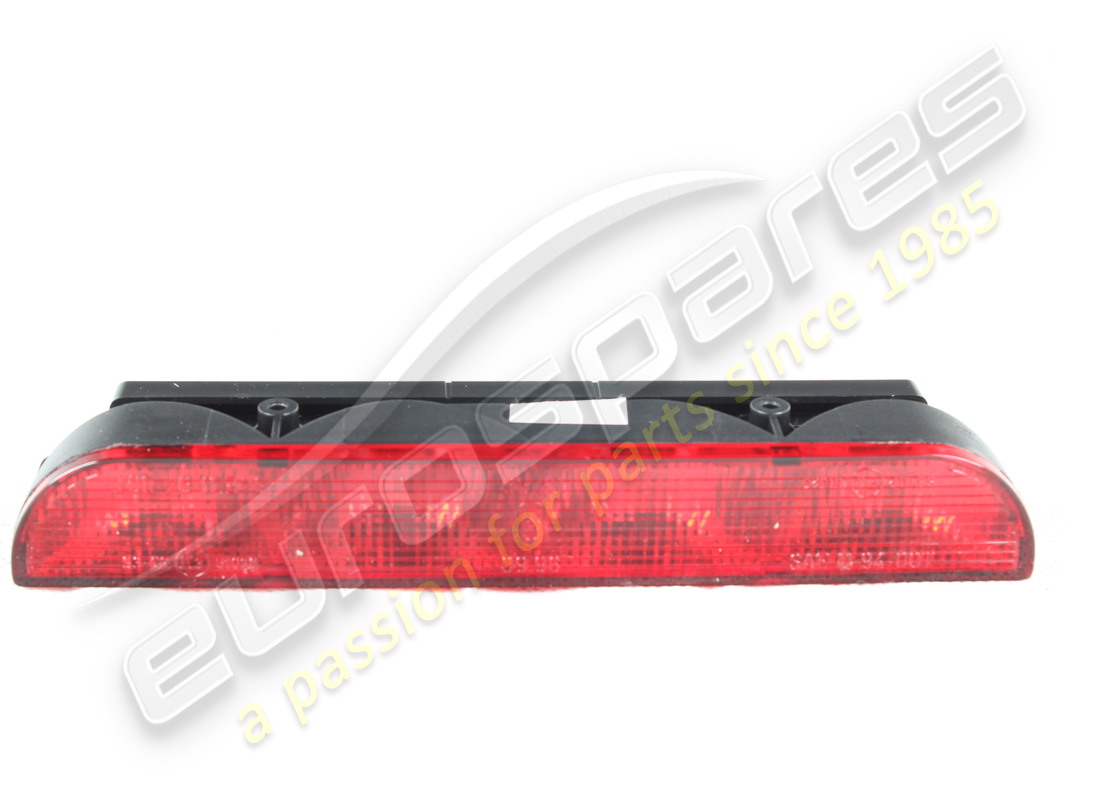

                            CENTRE STOP LIGHT
                            from £10.08
                            from £10.08
