maserati qtp v6 (1996) electrical system: engine compartment (rhd) parts diagram

058GD - Electrical System: Engine Compartment (RHD)

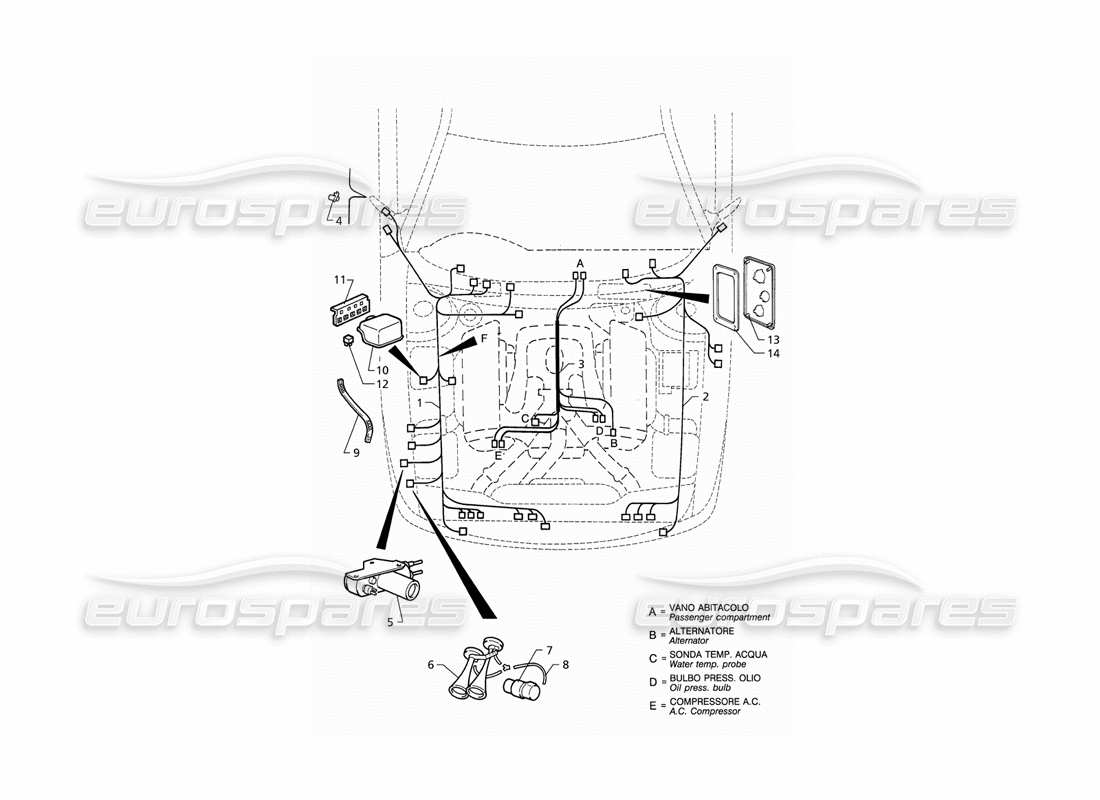

Maserati QTP V6 (1996) Electrical System: Engine Compartment (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 373016142
                              ENGINE COMPARTMENT RH WIRING
                              from £461.58
                              from £461.58
                              WIRING Genuine Maserati Part - New (to order)
                              # 002
                              MPN: 373040143
                              ENGINE COMPARTMENT LH WIRING
                              ENGINE COMPARTMENT LH WIRING Genuine Maserati Part - New (to order)
                              # 003
                              MPN: 373001123
                              ENGINE WIRING
                              from £461.58
                              from £461.58
                              WIRING Genuine Maserati Part - New In stock
                              # 004
                              MPN: 393650307
                              EXTERNAL TEMPERATURE SENSOR
                              from £19.59
                              from £19.59
                              OUTSIDE AIR TEMPERATURE SENS Genuine Maserati Part - New (to order)
                              # 005
                              MPN: 325520172
                              VACUUM PUMP
                              from £99.75
                              from £99.75
                              VACUUM PUMP Genuine Maserati Part - New (to order)
                              VACUUM PUMP Genuine Maserati Part - Used In stock
                              - Valid for 22, 21 version
                              # 006
                              MPN: 313320006
                              HORN ASSY
                              from £30.62
                              from £30.62
                              HORNS Genuine Maserati Part - New (to order)
                              # 007
                              MPN: 313320146
                              COMPRESSOR
                              from £60.50
                              from £60.50
                              HORN COMPRESSOR Genuine Maserati Part - New (to order)
                              # 008
                              MPN: 314020316
                              TUBE
                              from £1.94
                              from £1.94
                              This part replaces part number 313320325
                              BREATHER PIPE Genuine Maserati Part - New (to order)
                              # 009
                              MPN: 393050151
                              ENGINE/CHASSIS GROUND BRAID
                              from £4.02
                              from £4.02
                              ENGINE GROUND-FRAME GROUND B Genuine Maserati Part - New (to order)
                              ENGINE GROUND-FRAME GROUND B Genuine Maserati Part - Used In stock
                              # 010
                              MPN: 313052337
                              RELAY PROTECTION
                              from £9.54
                              from £9.54
                              RELAY COVER Genuine Maserati Part - New (to order)
                              # 011
                              MPN: 313052303
                              RELAY SUPPORT
                              from £5.49
                              from £5.49
                              PLATE Genuine Maserati Part - New (to order)
                              # 012
                              MPN: 313320134
                              BOSCH RELAY
                              from £18.04
                              from £18.04
                              This part replaces part number 184101
                              BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
                              # 013
                              MPN: 373000105
                              FAIRLEAD PLATE
                              from £4.47
                              from £4.47
                              PLATE Genuine Maserati Part - New (to order)
                              # 014
                              MPN: 373000329
                              GASKET
                              from £1.17
                              from £1.17
                              GASKET Genuine Maserati Part - New (to order)
