maserati qtp v6 (1996) borletti instrumentation parts diagram

060 - Borletti Instrumentation

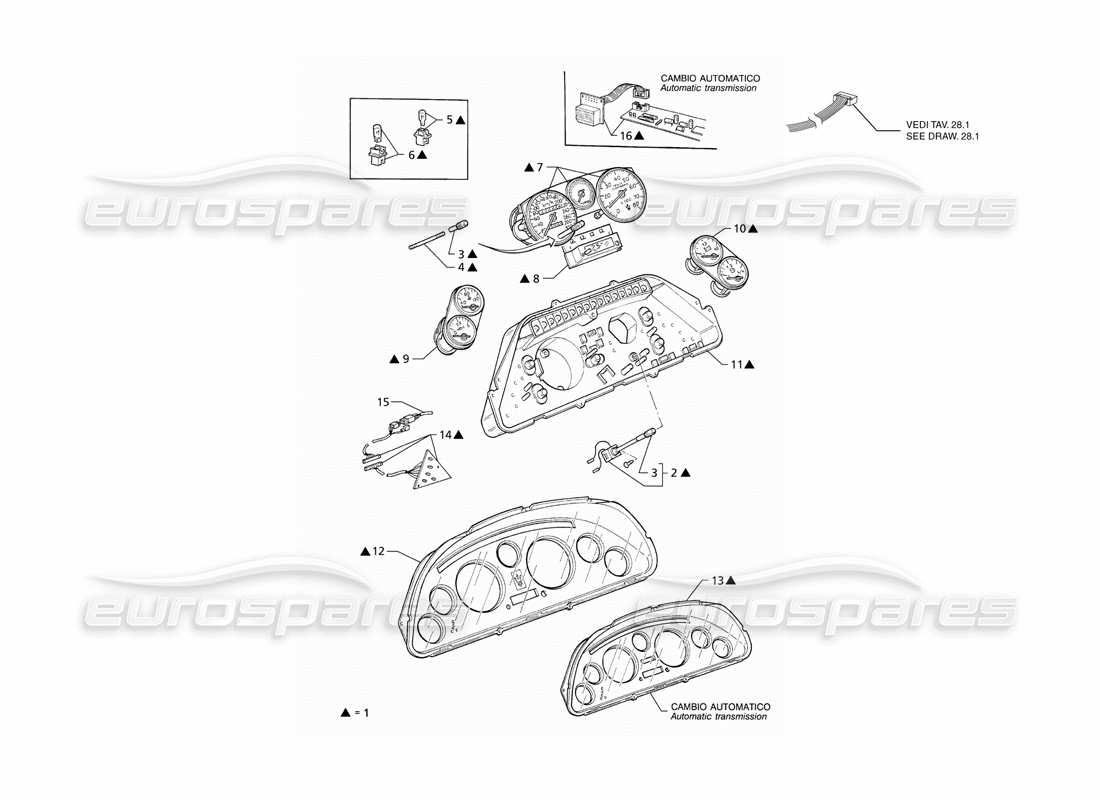

Maserati QTP V6 (1996) Borletti Instrumentation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 373601101
                        COMPLETE INSTRUMENTATION KM/H
                        - Valid for 2.0 M.T. version
                        from £696.32
                        from £696.32
                        CPLX.STRUMENTO 2.0-C.M.KMH R Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373607101
                        COMPLETE INSTRUMENTATION KM/H
                        - Valid for 2.8 M.T. version
                        from £704.52
                        from £704.52
                        CPLX.STRUM. 2.8-C.M.KMH (RAD Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373608101
                        COMPLETE INSTRUMENTATION KM/H
                        - Valid for 2.8 A.T. version
                        from £655.50
                        from £655.50
                        KMH INSTRUMENT Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373621101
                        COMPLETE INSTRUMENTATION MPH
                        - Valid for 2.8 M.T. version
                        from £518.82
                        from £518.82
                        CPLX.STRUMENTO 2.8-C.M.MPH R Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373622101
                        COMPLETE INSTRUMENTATION MPH
                        - Valid for 2.8 A.T. version
                        from £522.47
                        from £522.47
                        INSTRUMENT. ASSY Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373623101
                        COMPLETE INSTRUMENTATION WITHOUT ACTIVE SUSPENSION CONTROL
                        - Valid for 2.8 M.T. version
                        from £522.47
                        from £522.47
                        INSTRUMENT.ASSY Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 373624101
                        COMPLETE INSTRUMENTATION WITHOUT ACTIVE SUSPENSION CONTROL
                        - Valid for 2.8 A.T. version
                        from £522.47
                        from £522.47
                        INSTRUMENT.ASSY Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 393650210
                        RHEOSTAT
                        from £89.02
                        from £89.02
                        REOSTATO 06099829901 Genuine Maserati Part - New (to order)
                        # 003
                        MPN: 373600305
                        KM RESET/RHEOSTAT BUTTON
                        from £1.39
                        from £1.39
                        Maserati PART 373600305 Genuine Maserati Part - New (to order)
                        # 004
                        MPN: 373600306
                        KM RESET SHAFT
                        from £1.16
                        from £1.16
                        ALBERINO AZZERATORE 2081102 Genuine Maserati Part - New (to order)
                        # 005
                        MPN: 393650215
                        LAMP HOLDER WITH 1.2 W LAMP
                        from £1.99
                        from £1.99
                        This part replaces part number 393650217
                        PORTALAMPADA NERO 1.2W20371. Genuine Maserati Part - New (to order)
                        # 006
                        MPN: 393650216
                        LAMP HOLDER WITH 2 W LAMP
                        from £11.79
                        from £11.79
                        BULB HOLDER,RED 2W 0371.91 Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373600204
                        COMBINED INSTRUMENT KM/H
                        - Valid for 2.0 M.T. version
                        from £279.06
                        from £279.06
                        COMPLETE INSTRUMENT PANEL (KM) Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373605204
                        COMBINED INSTRUMENT KM/H
                        - Valid for 2.8 M.T. version
                        from £209.57
                        from £209.57
                        COMPLETE INSTRUMENT PANEL (KM) Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373608204
                        COMBINED INSTRUMENT KM/H
                        - Valid for 2.8 A.T. version
                        from £2,929.24
                        from £2,929.24
                        STRUM.COMB. 2.8-C.A.KMH MODI Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373619204
                        COMBINED INSTRUMENT (MPH)
                        - Valid for 2.8 M.T. version
                        from £264.38
                        from £264.38
                        This part replaces part number 363621204
                        STRUMENTO COMB.2.8-C.M.MPH Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 373622204
                        COMBINED INSTRUMENT MPH
                        - Valid for 2.8 A.T. version
                        from £357.71
                        from £357.71
                        COMBINED INSTRUMENT Genuine Maserati Part - New (to order)
                        # 008
                        MPN: 393650207
                        OUTSIDE TEMP. INDICATOR
                        from £145.52
                        from £145.52
                        INDIC.TEMPERATURA EST. 65090 Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 373600203
                        OIL PRESSURE WATER INDICATOR
                        from £15.76
                        from £15.76
                        TEMP.ACQUA E PRESS.OLIO Genuine Maserati Part - New (to order)
                        # 010
                        MPN: 373600206
                        VOLTMETER PETROL LEVEL INDICATOR
                        from £57.38
                        from £57.38
                        IND.LIVELLO BENZ.+VOLT 06006 Genuine Maserati Part - New (to order)
                        # 011
                        MPN: 373600202
                        CIRCUIT BOX
                        from £101.36
                        from £101.36
                        PRINTED CIRCUIT BOX Genuine Maserati Part - New (to order)
                        # 012
                        MPN: 373630208
                        BRIER COMPLETE SHIELD
                        - Valid for 2.0 M.T. and 2.8 M.T. version
                        from £108.53
                        from £108.53
                        VISOR Genuine Maserati Part - New (to order)
                        # 013
                        MPN: 373631208
                        BRIER COMPLETE SHIELD
                        - Valid for 2.8 A.T. version
                        from £108.53
                        from £108.53
                        VISOR Genuine Maserati Part - New (to order)
                        # 014
                        MPN: 373901100
                        DISPLAY FOR ACTIVE SUSPENSION CONTROL
                        from £67.91
                        from £67.91
                        display Genuine Maserati Part - New (to order)
                        # 015
                        MPN: 373901115
                        EXTENSION
                        from £8.16
                        from £8.16
                        EXTENSION Genuine Maserati Part - New (to order)
                        # 016
                        MPN: 373608220
                        DISPLAY COMPLETE WITH CIRCUIT
                        - Valid for 2.8 A.T. version
                        from £227.76
                        from £227.76
                        DISPLAY AUT.TRANSM. Genuine Maserati Part - New (to order)
