maserati qtp v6 (1996) passenger compartment ventilation (lhd) parts diagram

070GS - Passenger Compartment Ventilation (LHD)

Maserati QTP V6 (1996) Passenger Compartment Ventilation (LHD) Parts Diagram

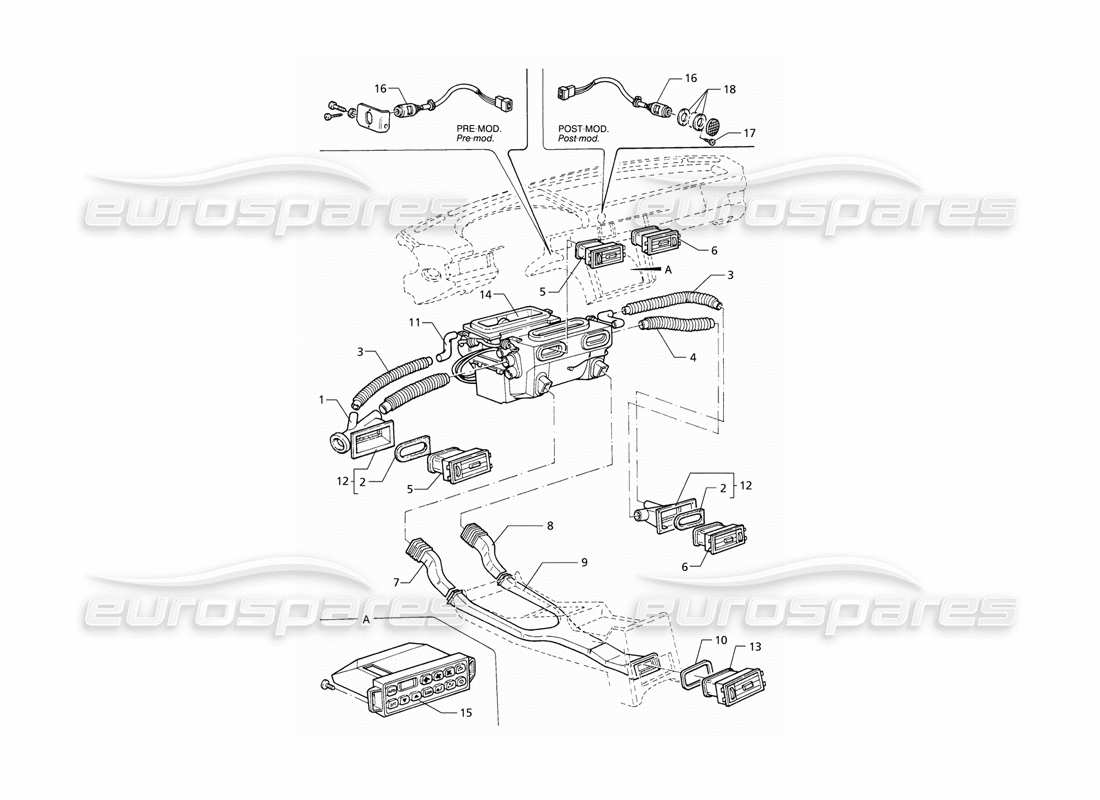

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 315520318
                                      OUTER WEATHERSTRIP
                                      from £0.70
                                      from £0.70
                                      # 002
                                      MPN: 365500317
                                      INNER WEATHERSTRIP
                                      from £0.70
                                      from £0.70
                                      # 003
                                      MPN: 315520314
                                      DOOR VENTILATION DUCT
                                      from £34.72
                                      from £34.72
                                      # 004
                                      MPN: 315520316
                                      DASHBOARD VENTILATION DUCT
                                      from £41.01
                                      from £41.01
                                      # 005
                                      MPN: 365500013
                                      LH DASHBOARD DIFFUSER
                                      from £25.19
                                      from £25.19
                                      # 006
                                      MPN: 365500014
                                      RH DASHBOARD DIFFUSER
                                      from £25.19
                                      from £25.19
                                      # 007
                                      MPN: 315520325
                                      FRONT LH CONSOLE DUCT
                                      from £2.80
                                      from £2.80
                                      # 008
                                      MPN: 315520326
                                      FRONT RH CONSOLE DUCT
                                      from £2.80
                                      from £2.80
                                      # 009
                                      MPN: 315520113
                                      REAR CONSOLE DUCT
                                      from £12.47
                                      from £12.47
                                      # 010
                                      MPN: 315520329
                                      GASKET
                                      from £0.70
                                      from £0.70
                                      # 011
                                      MPN: 315520313
                                      SLEEVE CONNECTING LH DOOR
                                      from £2.96
                                      from £2.96
                                      # 012
                                      MPN: 365500110
                                      AIR DUCT
                                      Supersession
                                      Supersession
                                      This part replaces part number 315520110
                                      # 013
                                      MPN: 315553020
                                      CONSOLE DIFFUSER (ANTHRACITE GREY)
                                      from £11.23
                                      from £11.23
                                      This part replaces part number 315550020
                                      # 014
                                      MPN: 375501005
                                      COMPLETE AIR CONDITIONER ASSY
                                      from £1,184.76
                                      from £1,184.76
                                      This part replaces part number 375500005
                                      # 015
                                      MPN: 375530201/a
                                      CONTROL UNIT
                                      # 016
                                      MPN: 375530199
                                      INTERNAL TEMPERATURE SENSOR
                                      from £39.80
                                      from £39.80
                                      # 017
                                      MPN: 119535160
                                      PARKER SCREW
                                      from £0.84
                                      from £0.84
                                      # 018
                                      MPN: 375530050
                                      GRILL KIT FOR OUTSIDE TEMPERATURE SENSOR
                                      from £5.56
                                      from £5.56
