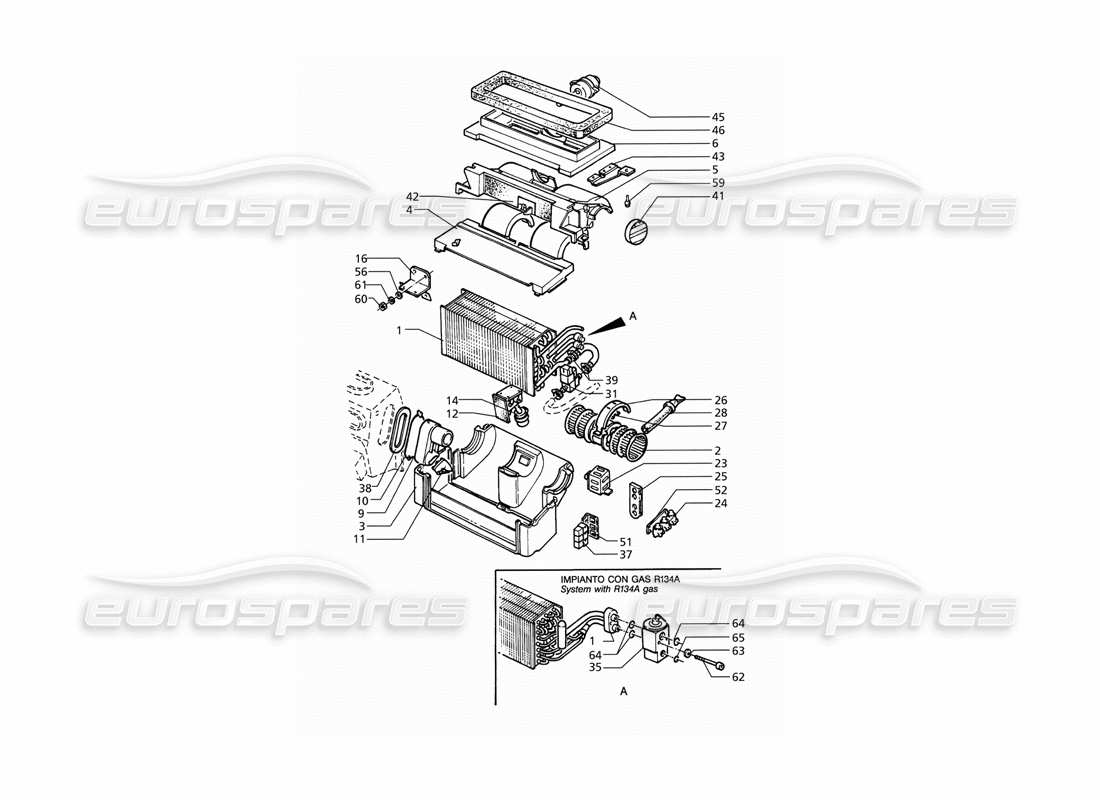

071GS - Automatic Air Conditioner Assy (LHD)

Maserati QTP V6 (1996) Automatic Air Conditioner Assy (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 001
                                                                              MPN: 375500165
                                                                              HEATER EVAPORATOR
                                                                              from £332.38
                                                                              from £332.38
                                                                              RADIATING PACK W/OUT EXPANSION VA Genuine Maserati Part - New (to order)
                                                                              # 002
                                                                              MPN: 315520167
                                                                              ELECTRIC FAN
                                                                              from £156.04
                                                                              from £156.04
                                                                              ELECTRIC FAN 046851045 Genuine Maserati Part - New (to order)
                                                                              # 003
                                                                              MPN: 315551380
                                                                              LOWER BOX
                                                                              from £18.42
                                                                              from £18.42
                                                                              LOWER BOX Genuine Maserati Part - New (to order)
                                                                              # 004
                                                                              MPN: 315520381
                                                                              INTERMEDIATE BOX
                                                                              from £13.61
                                                                              from £13.61
                                                                              INTERMEDIATS BOX Genuine Maserati Part - New (to order)
                                                                              # 005
                                                                              MPN: 315551382
                                                                              UPPER BOX
                                                                              from £20.84
                                                                              from £20.84
                                                                              UPPER BOX Genuine Maserati Part - New (to order)
                                                                              # 006
                                                                              MPN: 315520470
                                                                              DUCT
                                                                              from £45.06
                                                                              from £45.06
                                                                              DUCT Genuine Maserati Part - New (to order)
                                                                              # 009
                                                                              MPN: 315520473
                                                                              LH AIR NOZZLE
                                                                              from £2.08
                                                                              from £2.08
                                                                              LH AIR PIPE NECK Genuine Maserati Part - New (to order)
                                                                              # 009
                                                                              MPN: 315520474
                                                                              RH AIR NOZZLE
                                                                              from £3.08
                                                                              from £3.08
                                                                              RH AIR PIPE NECK Genuine Maserati Part - New (to order)
                                                                              # 010
                                                                              MPN: 315520163
                                                                              FLAP FOR LH AIR NOZZLE
                                                                              from £3.34
                                                                              from £3.34
                                                                              This part replaces part number 315520129
                                                                              LH DOOR 050.760.007 Genuine Maserati Part - New (to order)
                                                                              # 010
                                                                              MPN: 315520164
                                                                              FLAP FOR RH AIR NOZZLE
                                                                              from £2.87
                                                                              from £2.87
                                                                              This part replaces part number 315520130
                                                                              RH DOOR 050.760.006 Genuine Maserati Part - New (to order)
                                                                              # 011
                                                                              MPN: 315520387
                                                                              VENT
                                                                              from £10.23
                                                                              from £10.23
                                                                              INNER DUCT Genuine Maserati Part - New (to order)
                                                                              # 012
                                                                              MPN: 315520018
                                                                              FLAP, ASSY
                                                                              from £10.83
                                                                              from £10.83
                                                                              LOWER DOOR ASSEMBLY Genuine Maserati Part - New (to order)
                                                                              # 014
                                                                              MPN: 315520158
                                                                              REAR DOOR AIR CONTROL ACTUATOR
                                                                              from £9.84
                                                                              from £9.84
                                                                              ACTUATOR 050.760.048 Genuine Maserati Part - New (to order)
                                                                              # 016
                                                                              MPN: 315520138
                                                                              AIR CONDITIONER SUPPORT BRACKET
                                                                              from £3.48
                                                                              from £3.48
                                                                              PAD Genuine Maserati Part - New (to order)
                                                                              # 023
                                                                              MPN: 315520143
                                                                              RESISTANCE
                                                                              from £18.28
                                                                              from £18.28
                                                                              RESISTANCE 050760050 Genuine Maserati Part - New (to order)
                                                                              # 024
                                                                              MPN: 315520207
                                                                              PNEUMATIC SYSTEM SOLENOID VALVE
                                                                              from £29.46
                                                                              from £29.46
                                                                              SOLENOID VALVE Genuine Maserati Part - New (to order)
                                                                              # 025
                                                                              MPN: 315520475
                                                                              GASKET
                                                                              GASKET Genuine Maserati Part - New (to order)
                                                                              # 026
                                                                              MPN: 315520402
                                                                              BRACKET
                                                                              PAD Genuine Maserati Part - New (to order)
                                                                              # 027
                                                                              MPN: 315520403
                                                                              DAMPER
                                                                              GASKET Genuine Maserati Part - New (to order)
                                                                              # 028
                                                                              MPN: 315520017
                                                                              CONDENSATE DRAINAGE TUBE
                                                                              from £1.89
                                                                              from £1.89
                                                                              EXHAUST PIPE Genuine Maserati Part - New (to order)
                                                                              # 031
                                                                              MPN: 315522144
                                                                              COCK, ASSY
                                                                              from £284.17
                                                                              from £284.17
                                                                              COMPLETE VALVE BORL.050761008 Genuine Maserati Part - New (to order)
                                                                              # 035
                                                                              MPN: 375500166
                                                                              BLOCK EXPANSION VALVE
                                                                              from £59.20
                                                                              from £59.20
                                                                              EXPANSION VALVE = 5,121,508-338 5 Genuine Maserati Part - New (to order)
                                                                              # 037
                                                                              MPN: 30331137
                                                                              RELAY
                                                                              Supersession
                                                                              Supersession
                                                                              Genuine Maserati Part (no longer available to order)
                                                                              # 038
                                                                              MPN: 315520483
                                                                              GASKET
                                                                              from £2.74
                                                                              from £2.74
                                                                              SIDE VENT GASKET 050.760. Genuine Maserati Part - New (to order)
                                                                              # 039
                                                                              MPN: 315520415
                                                                              CLAMP
                                                                              CLAMP Genuine Maserati Part - New (to order)
                                                                              # 041
                                                                              MPN: 315551416
                                                                              THROTTLE FLAP
                                                                              from £4.98
                                                                              from £4.98
                                                                              THROTTLE DOOR 050727047 Genuine Maserati Part - New (to order)
                                                                              # 042
                                                                              MPN: 315520136
                                                                              AIR FLAP
                                                                              AIR FLAP Genuine Maserati Part - New (to order)
                                                                              # 043
                                                                              MPN: 315520419
                                                                              LH BRACKET FOR AIR CONDITIONER
                                                                              LH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
                                                                              # 043
                                                                              MPN: 315520420
                                                                              RH BRACKET FOR AIR CONDITIONER
                                                                              RH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
                                                                              # 045
                                                                              MPN: 315520160
                                                                              AIR FLAP ACTUATOR
                                                                              from £4.12
                                                                              from £4.12
                                                                              ACTUATOR 050220015 AIR CONDITIONING 55072 Genuine Maserati Part - New (to order)
                                                                              # 046
                                                                              MPN: 315520422
                                                                              GASKET
                                                                              from £2.08
                                                                              from £2.08
                                                                              GASKET Genuine Maserati Part - New (to order)
                                                                              # 051
                                                                              MPN: 315520477
                                                                              RELAY SUPPORTING BRACKET
                                                                              from £19.42
                                                                              from £19.42
                                                                              STAFFA RELE' BORL. 050761005 Genuine Maserati Part - New (to order)
                                                                              # 052
                                                                              MPN: 315520478
                                                                              SOLENOID VALVE SUPPORTING BRACKET
                                                                              SOLENOID VALVE SUPPORTING BRACKET Genuine Maserati Part - New (to order)
                                                                              # 056
                                                                              MPN: 169020406
                                                                              WASHER
                                                                              from £0.82
                                                                              from £0.82
                                                                              FLAT WASHER Genuine Maserati Part - New In stock
                                                                              # 059
                                                                              MPN: 314320345
                                                                              SCREW
                                                                              from £49.76
                                                                              from £49.76
                                                                              ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
                                                                              # 061
                                                                              MPN: 135600060
                                                                              SPRING WASHER
                                                                              from £0.82
                                                                              from £0.82
                                                                              WASHER 6.15X11.8 Genuine Maserati Part - New In stock
                                                                              # 062
                                                                              MPN: 14304821
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              SCREW 6X1X55 Genuine Maserati Part - New In stock
                                                                              Genuine Ferrari Part (no longer available to order)
                                                                              # 063
                                                                              MPN: 84157
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              Genuine Maserati Part (no longer available to order)
                                                                              # 064
                                                                              MPN: 375500458
                                                                              GROMMET
                                                                              from £5.70
                                                                              from £5.70
                                                                              OR 13,4X2,4 09601600 VAL.ESP Genuine Maserati Part - New In stock
                                                                              # 065
                                                                              MPN: 375500457
                                                                              GROMMET
                                                                              from £3.87
                                                                              from £3.87
                                                                              O R 6,7X1,8 09601400 VAL.ESP Genuine Maserati Part - New In stock
