maserati qtp v6 evoluzione gaskets and oil seals for block overhaul parts diagram

002 - gaskets and oil seals for block overhaul

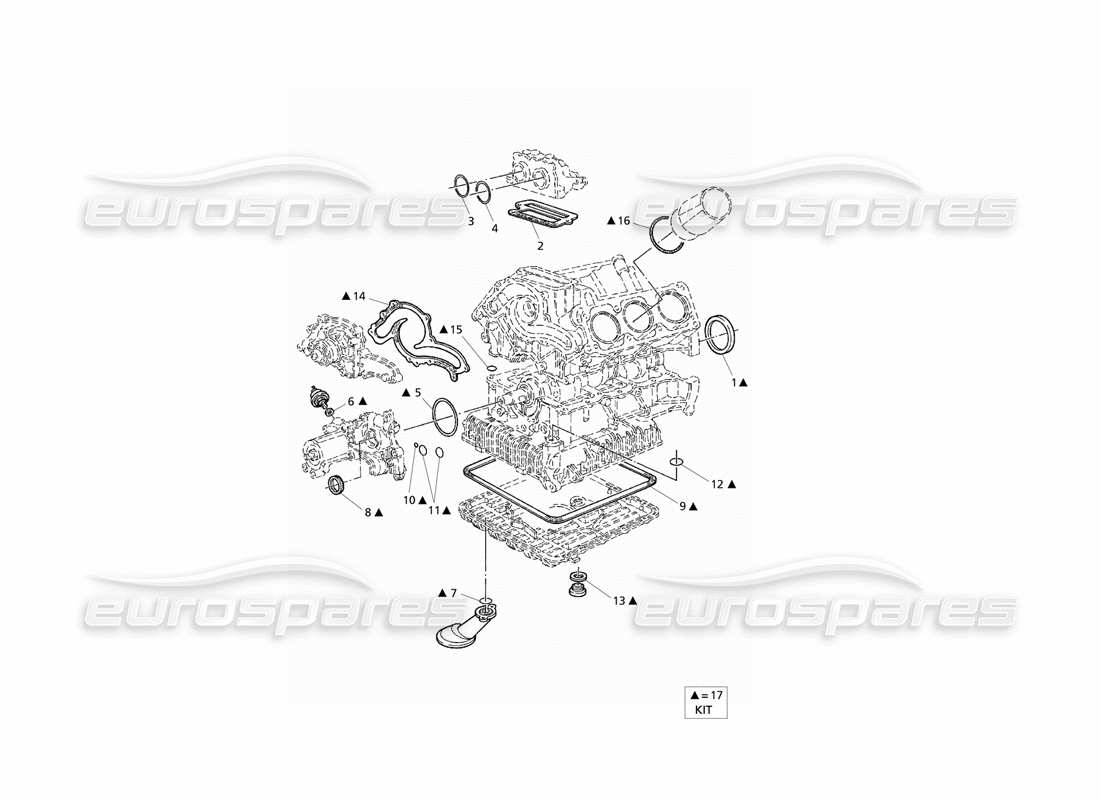

Maserati QTP V6 Evoluzione Gaskets and Oil Seals for Block Overhaul Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 585412800
                              SEAL RING
                              from £27.43
                              from £27.43
                              This part replaces part number 311420104
                              # 002
                              MPN: 470048700
                              THERMOSTAT GASKET
                              from £29.92
                              from £29.92
                              # 003
                              MPN: 14460081
                              SEAL RING
                              from £2.31
                              from £2.31
                              # 004
                              MPN: 14460880
                              SEAL RING
                              from £1.80
                              from £1.80
                              # 005
                              MPN: 14465881
                              SEAL RING
                              minimum order quantity = 2
                              from £4.64
                              from £4.64
                              # 006
                              MPN: 10280060
                              GASKET
                              from £0.47
                              from £0.47
                              # 007
                              MPN: 14458181
                              GASKET
                              from £1.08
                              from £1.08
                              # 008
                              MPN: 311020368
                              SEAL RING
                              from £8.25
                              from £8.25
                              This part replaces part number 190400351
                              # 009
                              MPN: 452014801
                              GASKET
                              from £10.30
                              from £10.30
                              # 010
                              MPN: 14452981
                              SEAL RING
                              from £0.79
                              from £0.79
                              # 011
                              MPN: 14454181
                              SEAL RING
                              minimum order quantity = 4
                              from £1.16
                              from £1.16
                              # 012
                              MPN: 14458681
                              GASKET
                              minimum order quantity = 10
                              from £1.76
                              from £1.76
                              # 013
                              MPN: 10262260
                              GASKET
                              from £2.85
                              from £2.85
                              This part replaces part number 310420304
                              # 014
                              MPN: 580046200
                              WATER PUMP GASKET
                              from £10.76
                              from £10.76
                              This part replaces part number 452046201
                              # 015
                              MPN: 97289
                              GASKET
                              from £2.63
                              from £2.63
                              # 016
                              MPN: 340600422
                              CILYNDER LINER RUBBER RING
                              from £13.13
                              from £13.13
                              # 017
                              MPN: 310462008
                              LOWER ENGINE BLOCK GASKET SET
                              from £137.68
                              from £137.68
