005 - Crankshaft, Pistons, Conrods & Flywheel

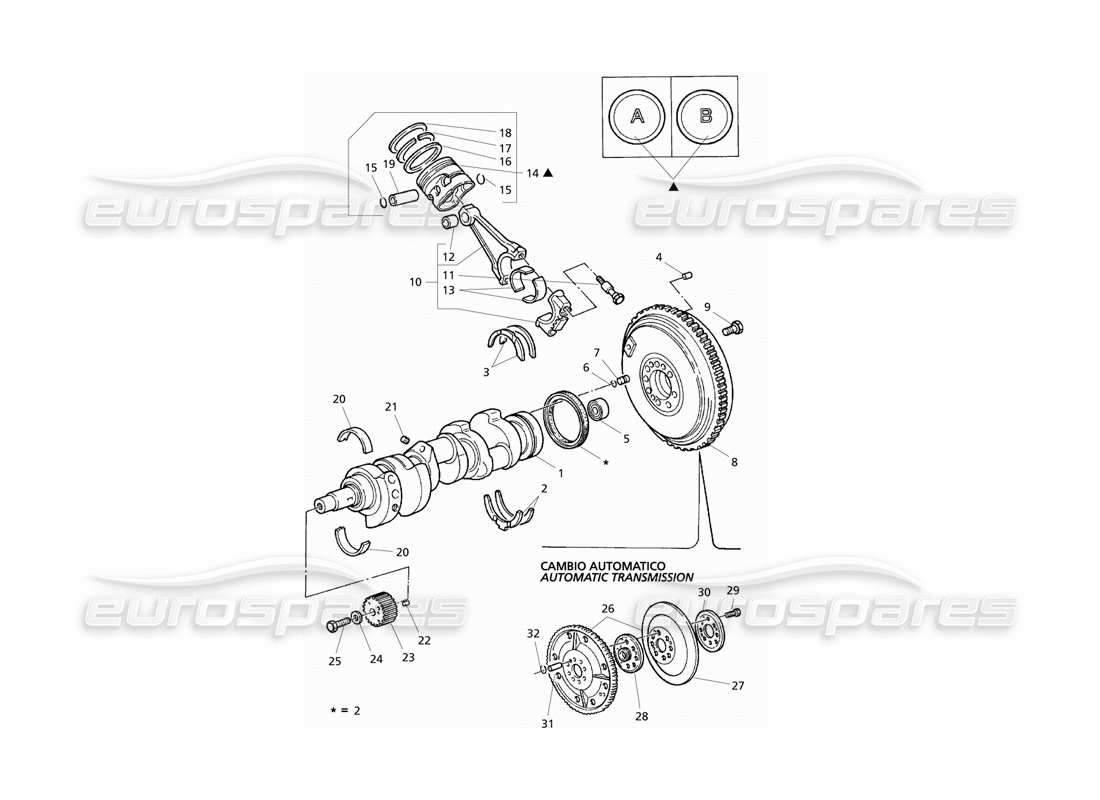

Maserati QTP V6 Evoluzione Crankshaft, Pistons, Conrods & Flywheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 581988000
                              crankshaft
                              - Valid for M.T. version
                              Supersession
                              Supersession
                              This part replaces part number 340802002 - and 1 more. Click to view details
                              # 001
                              MPN: 588988010
                              crankshaft
                              - Valid for A.T. version
                              from £0.47
                              from £0.47
                              # 002
                              MPN: 479021702
                              LOWER SHIM RING
                              -Thrust bearing- Class A-
                              from £10.73
                              from £10.73
                              This part replaces part number 310820305 - and 2 more. Click to view details
                              # 003
                              MPN: 479021302
                              UPPER SHIM RING
                              -Thrust bearing- Class A-
                              from £10.73
                              from £10.73
                              This part replaces part number 310820310 - and 1 more. Click to view details
                              # 004
                              MPN: 311453303
                              DOWEL
                              - Valid for M.T. version
                              from £9.61
                              from £9.61
                              # 005
                              MPN: 178003015
                              BEARING
                              - Valid for M.T. version
                              from £15.44
                              from £15.44
                              # 006

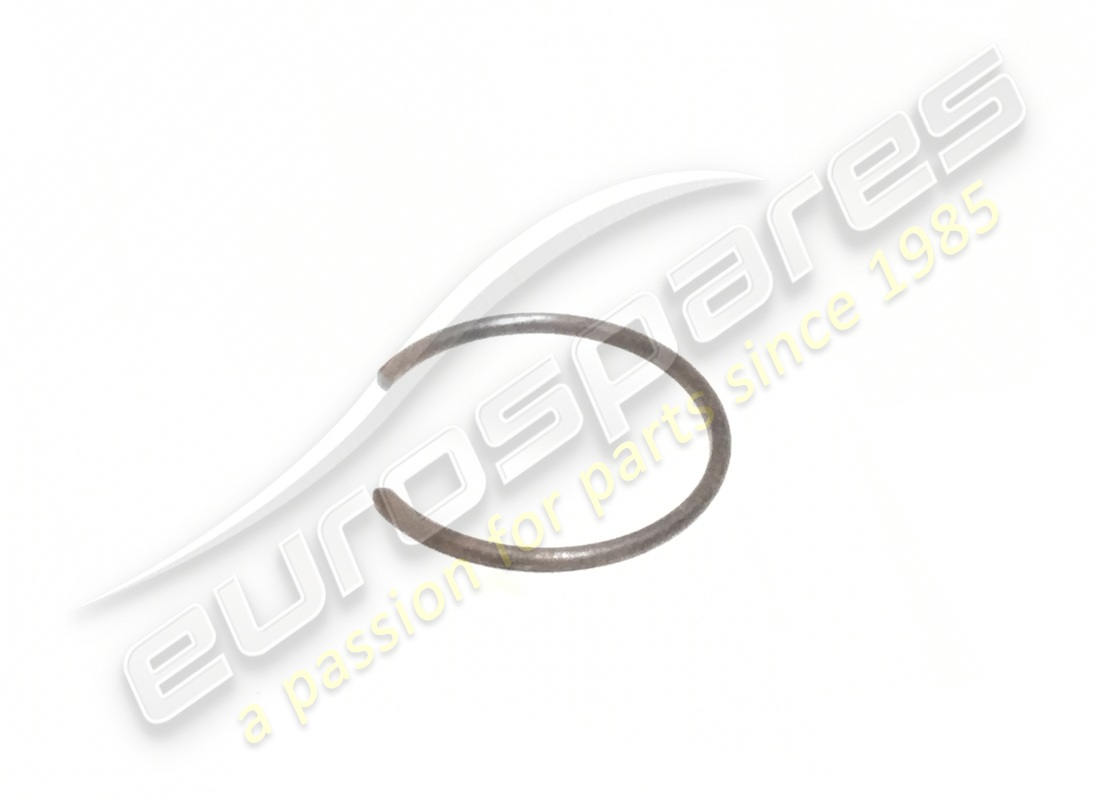

                              MPN: 310820302
                              RETAINING RING
                              from £1.07
                              from £1.07
                              # 007
                              MPN: 310820301
                              DOWEL
                              from £2.84
                              from £2.84
                              # 008
                              MPN: 324662340
                              FLYWHEEL ASSY
                              - Valid for M.T. version
                              from £1,132.59
                              from £1,132.59
                              # 009
                              MPN: 324662342
                              SCREW
                              - Valid for M.T. version
                              from £3.61
                              from £3.61
                              # 010
                              MPN: 464023300
                              CONNECTING ROD, ASSY
                              - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
                              from £131.25
                              from £131.25
                              # 011
                              -
                              SCREW
                              # 012
                              -
                              BUSHING
                              # 013
                              MPN: 452020901
                              STANDARD BIG END BEARING
                              Supersession
                              Supersession
                              # 014
                              MPN: 588025300
                              PISTON WITH RINGS
                              from £232.18
                              from £232.18
                              This part replaces part number 477025302
                              # 015
                              MPN: 459022300
                              RETAINING RING
                              from £1.18
                              from £1.18
                              # 016
                              MPN: 477022600
                              OIL SCRAPER
                              from £30.39
                              from £30.39
                              This part replaces part number 341200327
                              # 017
                              MPN: 341200328
                              LOWER PISTON RING
                              Supersession
                              Supersession
                              # 018
                              MPN: 477022401
                              UPPER PISTON RING
                              from £5.07
                              from £5.07
                              This part replaces part number 477022400
                              # 019
                              -
                              GUDGEON PIN
                              # 019
                              MPN: 452020901/A
                              STANDARD CON ROD BEARING (COMPLETE SET)
                              from £957.45
                              from £957.45
                              This part replaces part number 452020901
                              # 020
                              MPN: 479020201
                              STANDARD MAIN BEARING
                              from £229.80
                              from £229.80
                              This part replaces part number 479020301
                              # 021
                              MPN: 14328300
                              CRANKSHAFT OIL PLUG
                              from £1.54
                              from £1.54
                              # 022
                              MPN: 470023100
                              DOWEL
                              from £1.54
                              from £1.54
                              This part replaces part number 311020324 which we have in stock
                              # 023
                              MPN: 475024900
                              TOOTHED PULLEY
                              from £32.21
                              from £32.21
                              This part replaces part number 465024901
                              # 024
                              MPN: 311020308
                              WASHER
                              from £13.08
                              from £13.08
                              # 025
                              MPN: 11113021
                              SCREW
                              from £1.54
                              from £1.54
                              # 026
                              MPN: 574100500
                              DISC TOOTHED GEAR ASSY
                              - Valid for A.T. version
                              from £171.60
                              from £171.60
                              # 027
                              MPN: 578100200
                              DISC
                              - Valid for A.T. version
                              from £84.76
                              from £84.76
                              # 028
                              MPN: 578100600
                              FLANGE
                              - Valid for A.T. version
                              from £180.44
                              from £180.44
                              # 029
                              MPN: 314655301
                              SCREW
                              - Valid for A.T. version
                              Supersession
                              Supersession
                              # 030
                              MPN: 374631303
                              PLATE
                              - Valid for A.T. version
                              from £1.27
                              from £1.27
                              # 031
                              MPN: 374631302
                              DOWEL
                              - Valid for A.T. version
                              from £5.07
                              from £5.07
                              # 032
                              MPN: 310820302
                              RETAINING RING
                              - Valid for A.T. version
                              from £1.07
                              from £1.07
