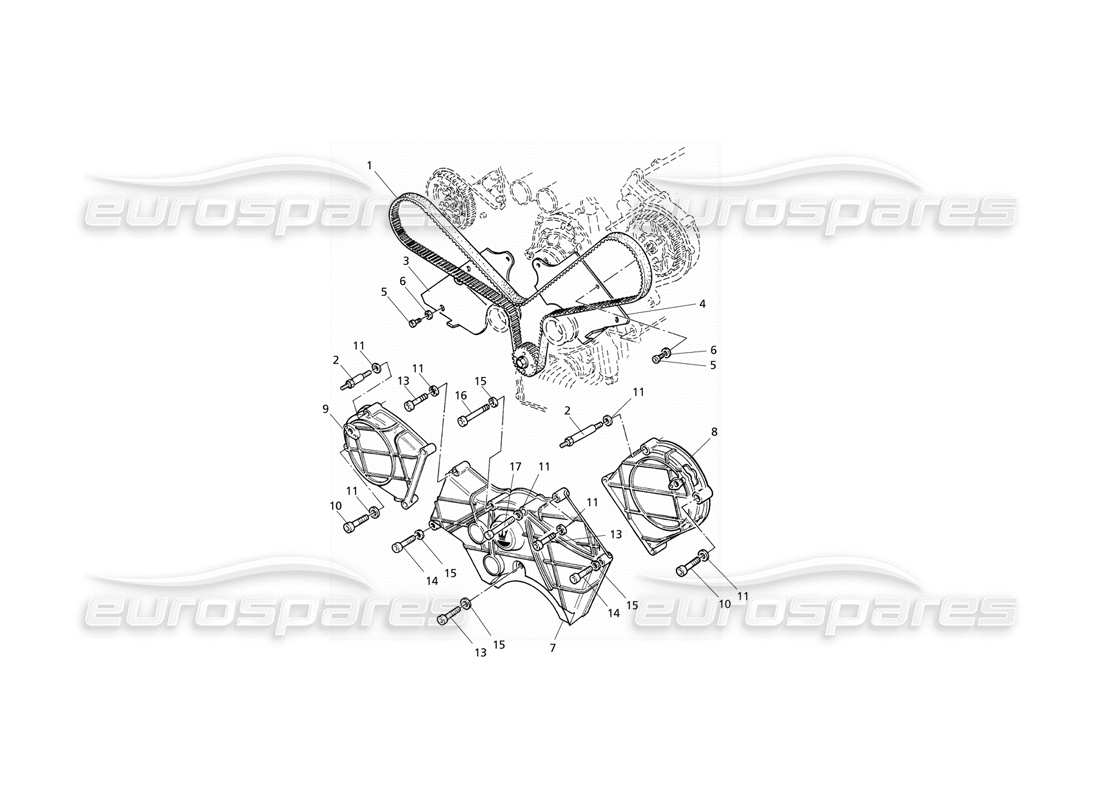

Maserati QTP V6 Evoluzione Timing Command and Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 97776
                                TIMING BELT
                                (valid for 2.0 & 2.8 engine)
                                from £29.95
                                from £29.95
                                This part replaces part number 311053349
                                # 002
                                MPN: 571003200
                                SCREW
                                from £6.41
                                from £6.41
                                # 003
                                MPN: 571036000
                                RH PANEL
                                from £8.20
                                from £8.20
                                # 004
                                MPN: 571035900
                                LH PANEL
                                from £9.66
                                from £9.66
                                # 005
                                MPN: 14305721
                                ALLEN SCREW L=14 MM
                                from £1.39
                                from £1.39
                                # 006
                                MPN: 311620303
                                WASHER
                                from £1.08
                                from £1.08
                                # 007
                                MPN: 588038700
                                BELT CENTRE COVER
                                from £15.04
                                from £15.04
                                # 008
                                MPN: 571002600
                                BELT LH COVER
                                from £18.83
                                from £18.83
                                # 009
                                MPN: 571007300
                                BELT RH COVER
                                from £34.49
                                from £34.49
                                # 010
                                MPN: 14305421
                                SCREW L=25
                                from £1.08
                                from £1.08
                                # 011
                                MPN: 95564
                                WASHER
                                from £1.31
                                from £1.31
                                # 013
                                MPN: 14306021
                                ALLEN SCREW L=40 MM
                                from £0.47
                                from £0.47
                                # 014
                                MPN: 14305821
                                ALLEN SCREW
                                from £0.53
                                from £0.53
                                # 015
                                MPN: 14498801
                                WASHER
                                from £0.47
                                from £0.47
                                # 016
                                MPN: 14304821
                                ALLEN SCREW L=55 MM
                                from £0.53
                                from £0.53
                                # 017
                                MPN: 14303821
                                ALLEN SCREW L=60 MM
                                from £0.53
                                from £0.53
