008.1 - timing control

Maserati QTP V6 Evoluzione Timing Control Parts Diagram

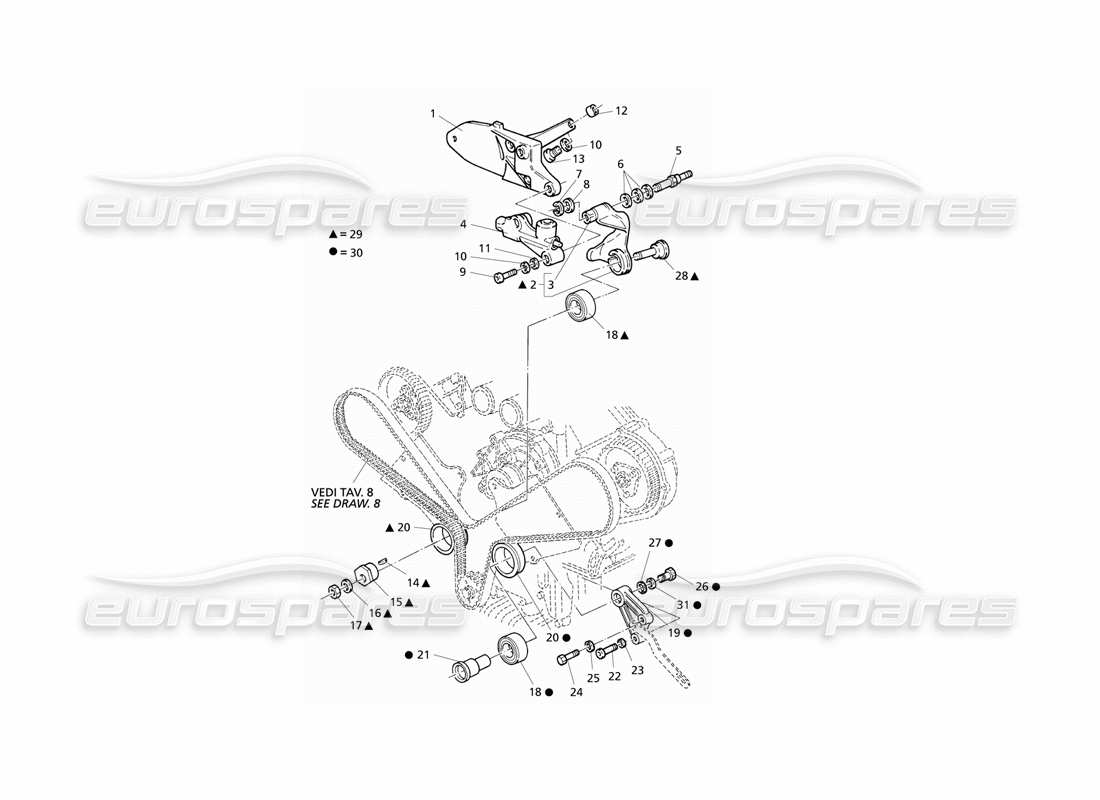

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 588480200
                                                                TENSIONER SUPPORT
                                                                from £52.27
                                                                from £52.27
                                                                # 002
                                                                MPN: 495038100
                                                                FIXED TIGHTENING PULLEY
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 495949600
                                                                # 003
                                                                MPN: 470037700
                                                                BUSH
                                                                from £9.25
                                                                from £9.25
                                                                This part replaces part number 311020336
                                                                # 004
                                                                MPN: 495034800
                                                                TENSIONER
                                                                from £187.13
                                                                from £187.13
                                                                # 005
                                                                MPN: 470037600
                                                                PIN
                                                                from £41.64
                                                                from £41.64
                                                                This part replaces part number 311020343
                                                                # 006
                                                                MPN: 311020352
                                                                SHIM (0.3 MM)
                                                                from £1.08
                                                                from £1.08
                                                                # 007
                                                                MPN: 11066070
                                                                STOP RING
                                                                from £0.70
                                                                from £0.70
                                                                # 008
                                                                MPN: 96789
                                                                SHIM (2 MM)
                                                                from £1.63
                                                                from £1.63
                                                                This part replaces part number 135200120
                                                                # 009
                                                                MPN: 14306721
                                                                ALLEN SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 010
                                                                MPN: 12604470
                                                                RETAINING WASHER
                                                                from £0.84
                                                                from £0.84
                                                                # 011
                                                                MPN: 312225445
                                                                FLAT WASHER
                                                                from £0.78
                                                                from £0.78
                                                                # 012
                                                                MPN: 453481140
                                                                SPACER
                                                                from £3.24
                                                                from £3.24
                                                                # 013
                                                                MPN: 14306721
                                                                ALLEN SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 014
                                                                MPN: 311053460
                                                                TAB
                                                                from £0.70
                                                                from £0.70
                                                                # 015
                                                                MPN: 475033200
                                                                CAM
                                                                from £6.81
                                                                from £6.81
                                                                # 016
                                                                MPN: 452008901
                                                                WASHER
                                                                from £2.17
                                                                from £2.17
                                                                # 017
                                                                MPN: 326656321
                                                                NUT
                                                                from £3.56
                                                                from £3.56
                                                                # 018
                                                                MPN: 311020107
                                                                TIMING BEARING
                                                                from £99.75
                                                                from £99.75
                                                                # 019
                                                                MPN: 475033801
                                                                FIXED SUPPORT
                                                                from £48.61
                                                                from £48.61
                                                                This part replaces part number 475033800
                                                                # 020
                                                                MPN: 311020350
                                                                BEARING COVER
                                                                from £56.75
                                                                from £56.75
                                                                # 021
                                                                MPN: 321053343
                                                                PIN
                                                                from £63.28
                                                                from £63.28
                                                                This part replaces part number 311053343
                                                                # 022
                                                                MPN: 311020320
                                                                ALLEN SCREW
                                                                from £1.31
                                                                from £1.31
                                                                # 023
                                                                MPN: 12601370
                                                                RETAINING WASHER
                                                                from £0.84
                                                                from £0.84
                                                                # 024
                                                                MPN: 16044021
                                                                SCREW
                                                                from £1.62
                                                                from £1.62
                                                                # 025
                                                                MPN: 453102300
                                                                FLAT WASHER
                                                                from £1.31
                                                                from £1.31
                                                                # 026
                                                                MPN: 16043421
                                                                SCREW
                                                                from £2.77
                                                                from £2.77
                                                                This part replaces part number 16043411
                                                                # 027
                                                                MPN: 319055315
                                                                WASHER
                                                                from £1.08
                                                                from £1.08
                                                                # 028
                                                                MPN: 475037802
                                                                PIN
                                                                from £19.08
                                                                from £19.08
                                                                # 029
                                                                MPN: 580949600
                                                                TIGHTENING PULLEY, ASSY
                                                                from £185.97
                                                                from £185.97
                                                                This part replaces part number 495038100
                                                                # 030
                                                                MPN: 580948700
                                                                TIGHTENING PULLEY, ASSY
                                                                from £141.47
                                                                from £141.47
                                                                # 031
                                                                MPN: 12601370
                                                                RETAINING WASHER
                                                                from £0.84
                                                                from £0.84
