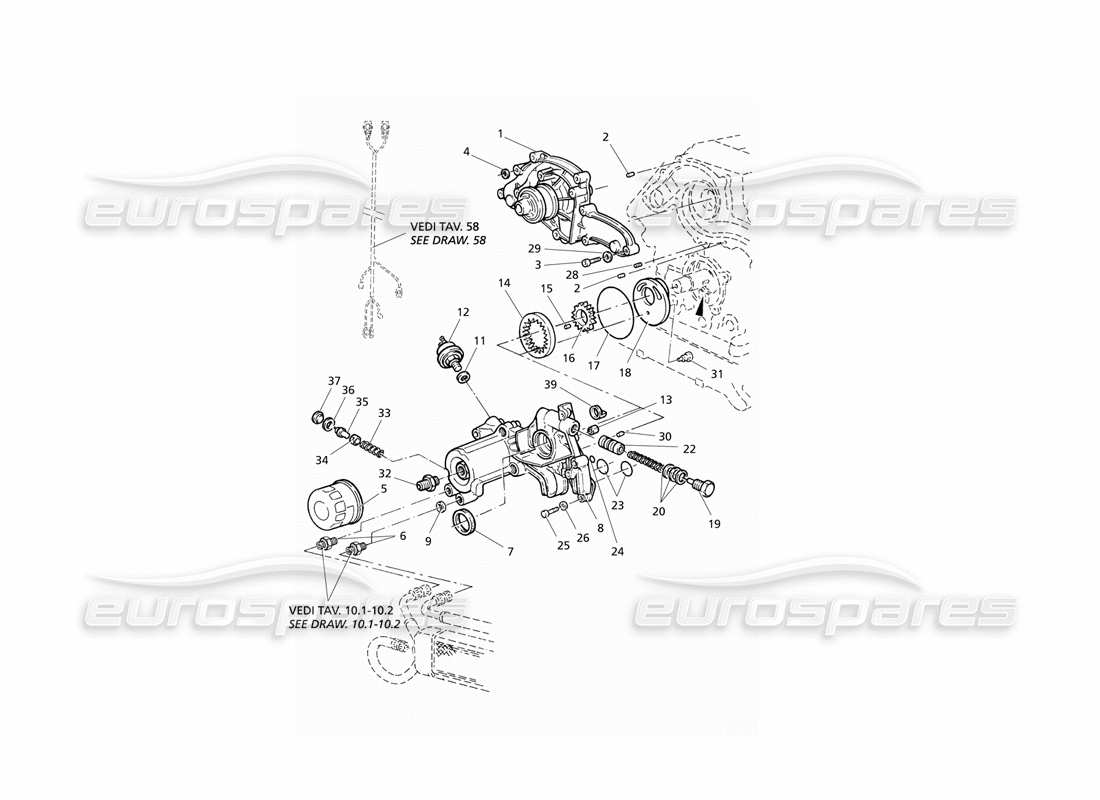

Maserati QTP V6 Evoluzione Oil Pump and Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 470045900
WATER PUMP + GASKET
from £309.75
from £309.75
This part replaces part number 314020012
# 002
MPN: 314020329
CENTERING ROLLER
from £2.00
from £2.00
# 003
MPN: 14305521
SCREW
from £0.47
from £0.47
# 004
MPN: 12604279
RETAINING WASHER
from £0.47
from £0.47
# 005
MPN: 470040900
OIL FILTER
from £42.50
from £42.50
# 007
MPN: 311020368
SEAL RING
from £8.25
from £8.25
This part replaces part number 190400351
# 008
MPN: 588040100
OIL CONTROL UNIT
from £751.02
from £751.02
# 009
MPN: 97762
GASKET
from £4.32
from £4.32
# 011
MPN: 10280060
GASKET
from £0.47
from £0.47
# 012
MPN: 183452
PRESSION OIL SENSOR
from £164.55
from £164.55
This part replaces part number 585043300
# 013
MPN: 311820309
DOWEL 12X12 DIAM
from £17.28
from £17.28
# 014
MPN: 479040500
DRIVEN GEAR (12 MM THICK)
from £49.53
from £49.53
# 015
MPN: 97054
ROLLER
from £0.72
from £0.72
# 016
MPN: 479040400
DRIVING GEAR (12 MM THICK)
from £28.19
from £28.19
# 017
MPN: 14465881
SEAL RING
minimum order quantity = 2
from £4.80
from £4.80
# 018
MPN: 571982100
OIL PUMP COVER
from £75.19
from £75.19
This part replaces part number 311820321
# 019
MPN: 452045001
PLUG
from £8.54
from £8.54
This part replaces part number 452044901
# 020
MPN: 311820317
GASKET
from £0.72
from £0.72
# 021
MPN: 452048601
SPRING
from £1.82
from £1.82
# 022
MPN: 311820319
OIL PRESSURE ADJUSTING VALVE
from £12.62
from £12.62
# 023
MPN: 14454181
SEAL RING
minimum order quantity = 4
from £1.21
from £1.21
# 024
MPN: 14452891
SEAL RING
# 025
MPN: 14306521
SCREW
Supersession
Supersession
# 026
MPN: 12604470
RETAINING WASHER
from £0.88
from £0.88
# 028
MPN: 470011300
DOWEL
from £1.13
from £1.13
# 029
MPN: 10297760
COPPER GASKET
from £0.47
from £0.47
# 030
MPN: 311820315
CENTERING ROLLER, OIL PUMP (L=10 MM)
from £1.21
from £1.21
# 031
MPN: 501047800
BALL ON PUMP COVER
from £34.80
from £34.80
# 032

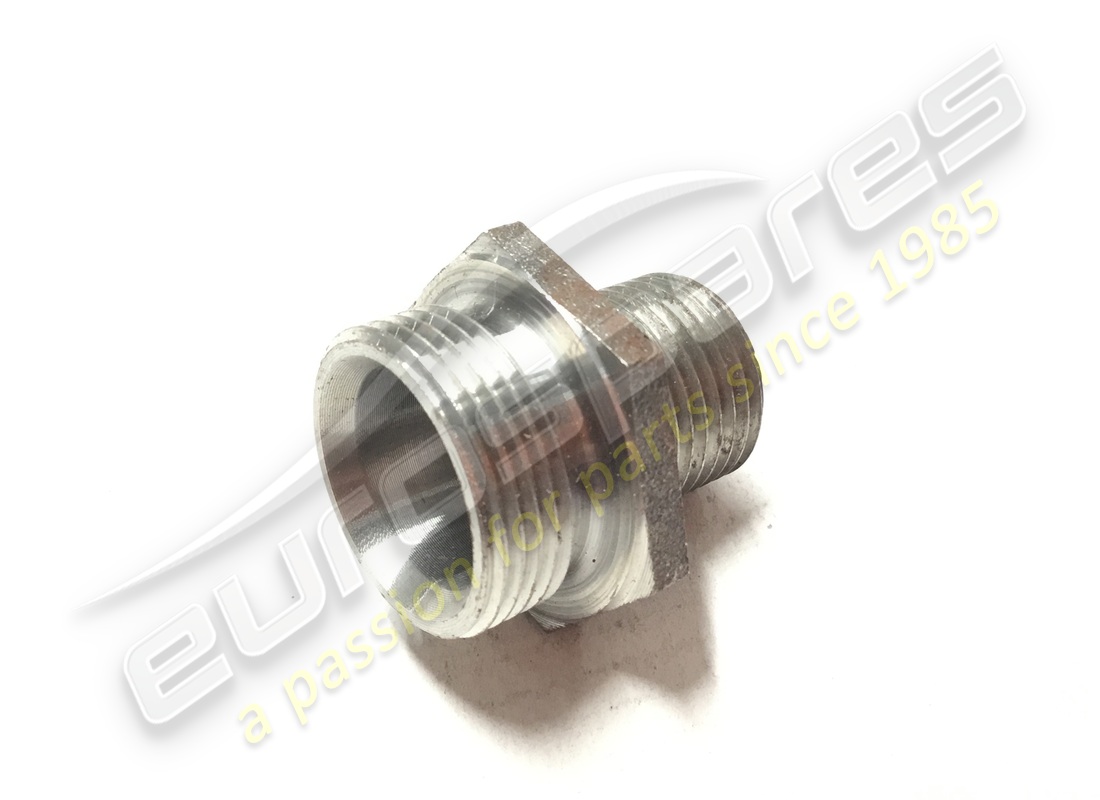

MPN: 452041301
NIPPLE
from £17.83
from £17.83
# 033
MPN: 571044600
SPRING
from £1.46
from £1.46
# 034
MPN: 571044200
BULB VALVE
from £6.35
from £6.35
# 035
MPN: 571044100
BULB
from £14.08
from £14.08
# 036
MPN: 571044500
WASHER (0.30 MM THICK)
from £2.00
from £2.00
# 037
MPN: 571044400
PLUG
from £8.96
from £8.96
# 039
MPN: 97730
RETAINING WASHER
from £4.23
from £4.23
