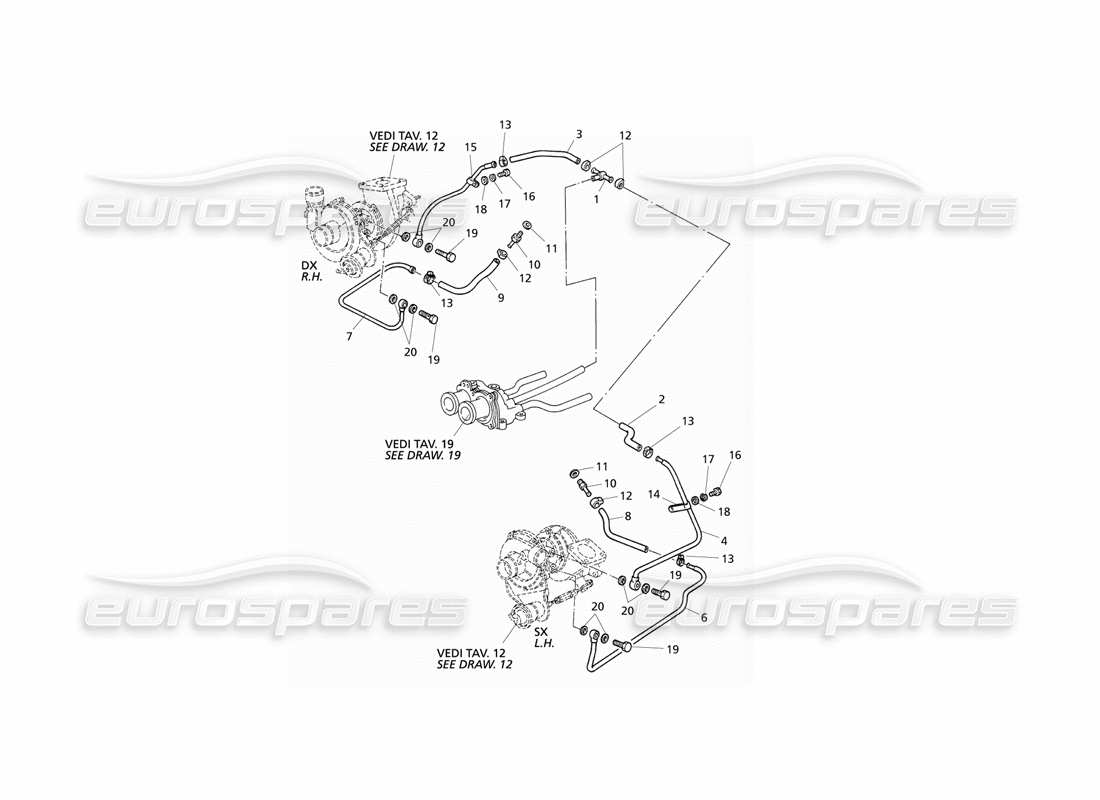

012.1 - turbo cooling pipes

Maserati QTP V6 Evoluzione Turbo Cooling Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 312020407
                                        THREE WAY UNION
                                        from £67.31
                                        from £67.31
                                        # 002
                                        MPN: 470369200
                                        LH RETURN SLEEVE
                                        from £20.01
                                        from £20.01
                                        This part replaces part number 312020423 - and 1 more. Click to view details
                                        # 003
                                        MPN: 452369201
                                        RH RETURN SLEEVE
                                        from £9.36
                                        from £9.36
                                        # 005
                                        MPN: 473360900
                                        RH RETURN TUBE
                                        from £9.90
                                        from £9.90

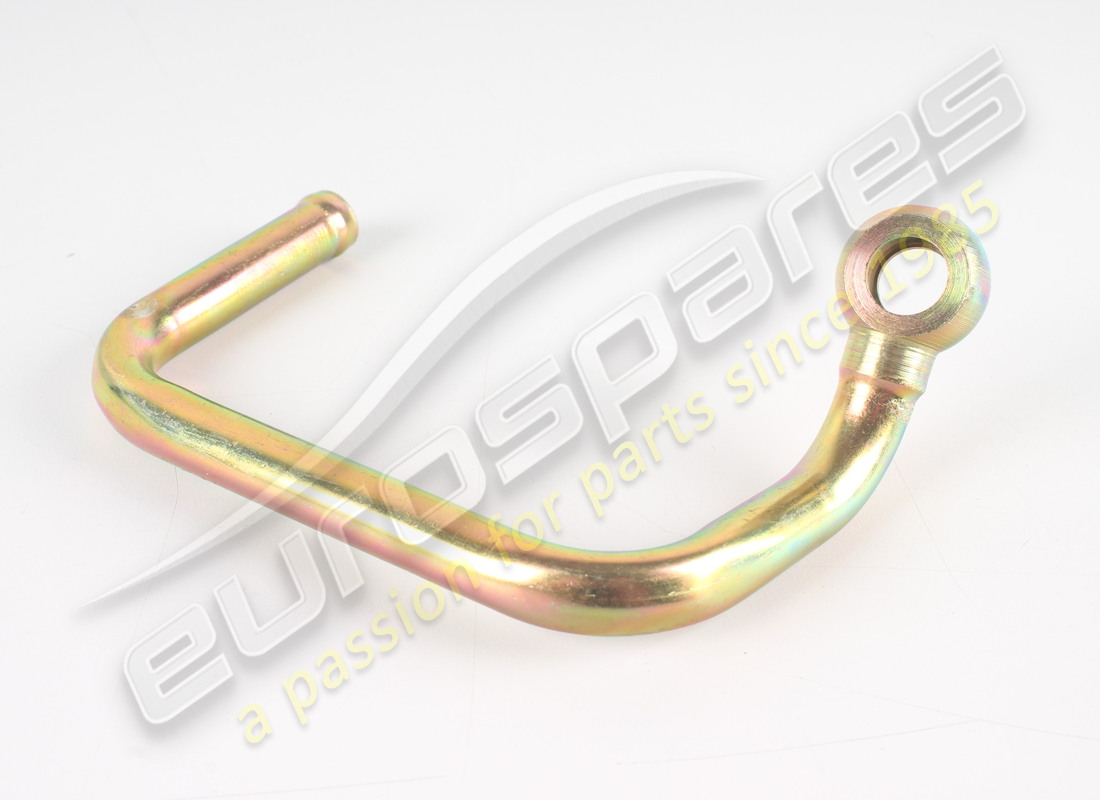

                                        # 006
                                        MPN: 470360600
                                        LH DELIVERY TUBE
                                        from £4.20
                                        from £4.20
                                        # 007
                                        MPN: 470360800
                                        RH DELIVERY TUBE
                                        from £5.11
                                        from £5.11
                                        This part replaces part number 312020123 - and 3 more. Click to view details
                                        # 008
                                        MPN: 452369701
                                        LH DELIVERY SLEEVE
                                        from £13.32
                                        from £13.32
                                        # 009
                                        MPN: 452369601
                                        RH DELIVERY SLEEVE
                                        from £36.42
                                        from £36.42
                                        # 010
                                        MPN: 452366901
                                        UNION
                                        from £10.72
                                        from £10.72
                                        # 011
                                        MPN: 10280060
                                        GASKET
                                        from £0.47
                                        from £0.47
                                        # 012
                                        MPN: 312020404
                                        CLAMP Ø 14 22
                                        from £4.26
                                        from £4.26
                                        # 013
                                        MPN: 10187090
                                        CLAMP Ø 18
                                        from £2.37
                                        from £2.37
                                        # 014
                                        MPN: 312020432
                                        LH SHAPED CLAMP
                                        from £1.97
                                        from £1.97
                                        # 015
                                        MPN: 312020433
                                        RH SHAPED CLAMP
                                        from £1.77
                                        from £1.77
                                        # 016
                                        MPN: 14305121
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 017
                                        MPN: 12604279
                                        RETAINING WASHER
                                        from £0.47
                                        from £0.47
                                        # 018
                                        MPN: 14496421
                                        FLAT WASHER
                                        Supersession
                                        Supersession
                                        This part replaces part number 84154
                                        # 019
                                        MPN: 452369801
                                        UNION SCREW
                                        from £9.25
                                        from £9.25
                                        # 020
                                        MPN: 312020430
                                        GASKET
                                        (minimum order quantity = 10)
                                        from £0.74
                                        from £0.74
