maserati qtp v6 evoluzione boost control system parts diagram

012.3 - Boost Control System

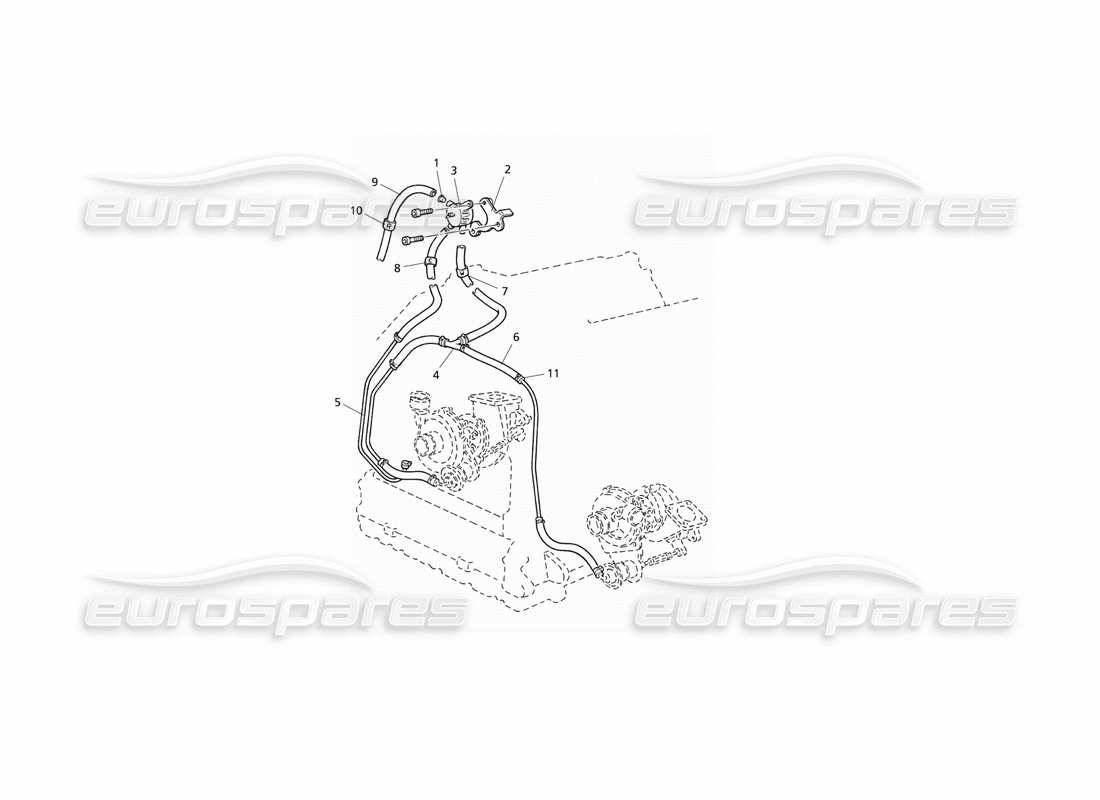

Maserati QTP V6 Evoluzione Boost Control System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 312020375
                    REDUCER Ø 3,4 MM
                    - Valid for M.T. version
                    # 001
                    MPN: 473084040
                    REDUCER Ø 3 MM
                    - Valid for A.T. version
                    from £1.00
                    from £1.00
                    # 002
                    MPN: 571083101
                    SOLENOID SUPPORT
                    from £4.17
                    from £4.17
                    # 003
                    MPN: 452089801
                    SOLENOID VALVE
                    from £76.28
                    from £76.28
                    # 004
                    MPN: 312020399
                    THREE WAY UNION
                    from £1.01
                    from £1.01
                    # 005
                    MPN: 495948900
                    RH TURBO CONNECTION PIPE, ASSY
                    from £56.57
                    from £56.57
                    # 006
                    MPN: 495948800
                    LH AND RH TURBO WASTEGATE, ASSY
                    from £45.52
                    from £45.52
                    # 007
                    MPN: 312020397
                    IDENTIFICATION CLAMP (W)
                    from £0.69
                    from £0.69
                    # 008
                    MPN: 312020396
                    IDENTIFICATION CLAMP (C)
                    from £0.69
                    from £0.69
                    # 009
                    MPN: 95745
                    SLEEVE
                    - Order minimum amount of 10 m or multiples
                    Supersession
                    Supersession
                    This part replaces part number 312020402
                    # 010
                    MPN: 312020395
                    IDENTIFICATION CLAMP (R)
                    from £0.77
                    from £0.77
