013.1 - Intake Manifold and Inijection System

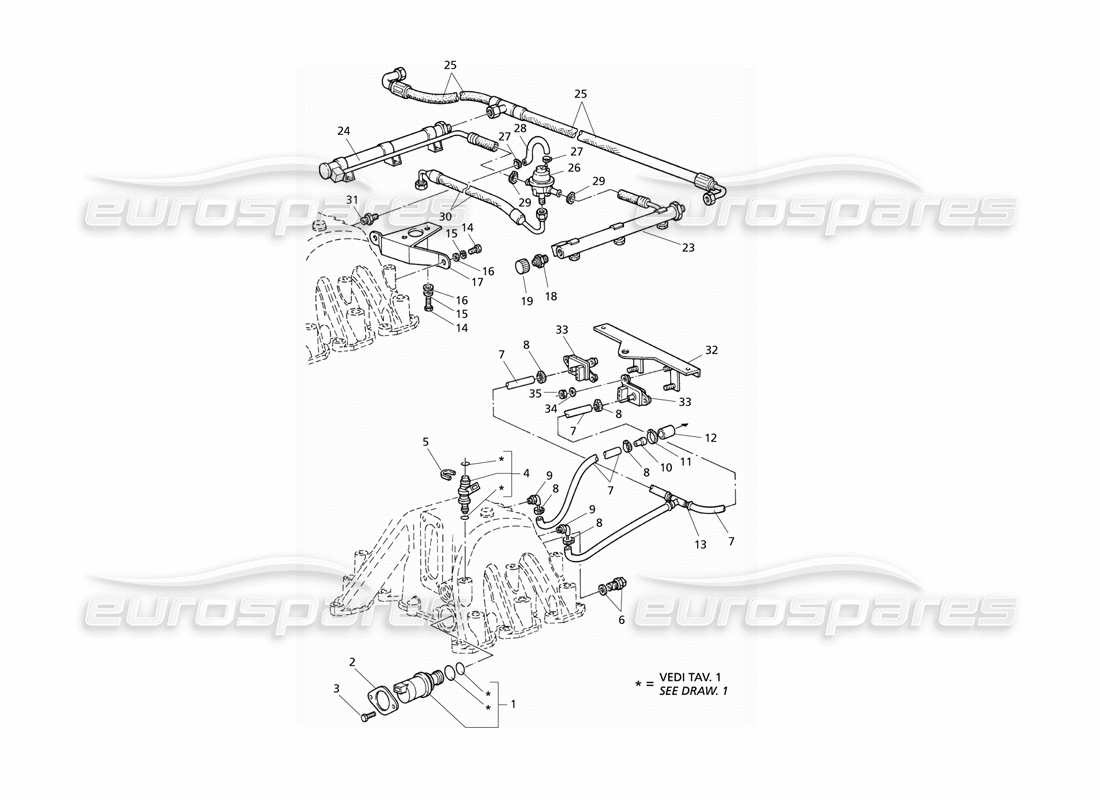

Maserati QTP V6 Evoluzione Intake Manifold and Inijection System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 472063940
V.A.E. SOLENOID VALVE (GREEN)
from £232.52
from £232.52
# 001
MPN: 571063900
V.A.E. SOLENOID VALVE (GREY)
from £146.41
from £146.41
# 002
MPN: 475062200
FLANGE
from £4.63
from £4.63
# 003
MPN: 311053394
SCREW
Supersession
Supersession
# 004
MPN: 470063003
INJECTOR
from £95.90
from £95.90
# 005
MPN: 470063400
INJECTOR TEN. SPRING
from £1.81
from £1.81
# 006
MPN: 470079700
AIR TEMP. SENSOR
from £67.14
from £67.14
# 007
MPN: 300100803
SLEEVE
- Order minimum amount of 1 m or multiples
from £54.96
from £54.96
This part replaces part number 318720329
# 008
MPN: 312050310
CLAMP
from £1.08
from £1.08
# 009
MPN: 585064500
UNION
from £63.34
from £63.34
This part replaces part number 578064500
# 010
MPN: 312230461
UNION
from £0.99
from £0.99
# 011
MPN: 96115
CLAMP
from £1.08
from £1.08
# 012
MPN: 97982
SLEEVE
- Order minimum amount of 1 m or multiples
# 013
MPN: 312030448
THREE WAY UNION
from £0.56
from £0.56
# 014
MPN: 14305121
ALLEN SCREW
from £0.47
from £0.47
# 015
MPN: 12604279
RETAINING WASHER
from £0.53
from £0.53
# 016
MPN: 14496421
FLAT WASHER
Supersession
Supersession
This part replaces part number 84154
# 017
MPN: 588084800
BRACKET
from £7.19
from £7.19
# 018
MPN: 588984900
BREATHER VALVE
from £37.75
from £37.75
# 019
MPN: 495062600
CAP
from £42.96
from £42.96
# 023
MPN: 588060100
LH MANIFOLD
from £75.68
from £75.68
# 024
MPN: 588060000
RH MANIFOLD
from £77.65
from £77.65
# 025
MPN: 573064204
PETROL DELIVERY TUBE
from £157.84
from £157.84
This part replaces part number 573064203
# 026
MPN: 477073601
PRESSURE REGULATOR
from £510.72
from £510.72
This part replaces part number 349202140
# 027
MPN: 312050310
CLAMP
from £1.08
from £1.08
# 028
MPN: 300100803
SLEEVE
- Order minimum amount of 1 m or multiples
from £54.96
from £54.96
This part replaces part number 318720329
# 029
MPN: 10186890
CLAMP
from £1.18
from £1.18
This part replaces part number 559221343
# 030
MPN: 588066900
FUEL RETURN TUBE
from £110.77
from £110.77
# 031
MPN: 585412100
UNION
from £2.19
from £2.19
This part replaces part number 95517
# 032
MPN: 373230103
A.P. SENSOR SUPPORT
from £5.53
from £5.53
# 033
MPN: 571079600
PRESSURE SENSOR
from £102.83
from £102.83
# 034
MPN: 14496400
WASHER
from £0.85
from £0.85
# 035
MPN: 12575421
STOP NUT
Supersession
Supersession
This part replaces part number 12575411
