016 - IGNITION SYSTEM

Maserati QTP V6 Evoluzione Ignition System Parts Diagram

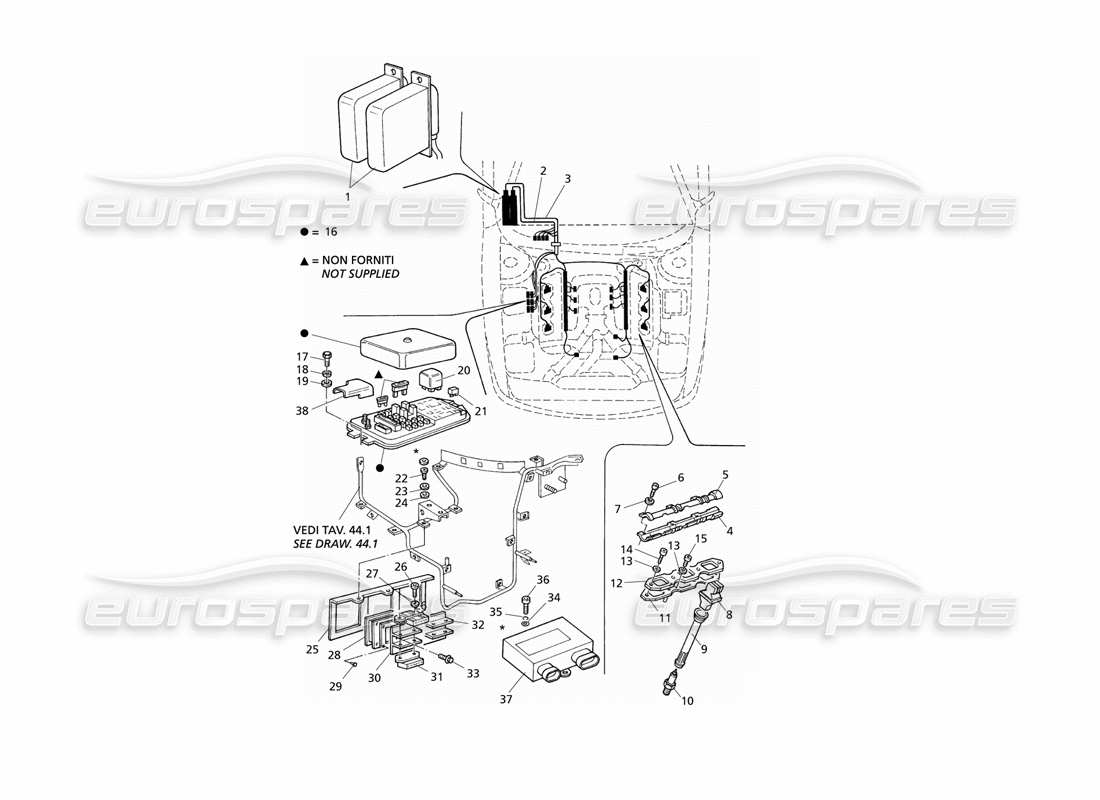

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 373782100
                                                                            CONTROL UNIT
                                                                            - Valid for M.T. version
                                                                            from £1,663.95
                                                                            from £1,663.95
                                                                            This part replaces part number 373780100
                                                                            # 001
                                                                            MPN: 373783100
                                                                            CONTROL UNIT
                                                                            - Valid for A.T. version
                                                                            from £727.68
                                                                            from £727.68
                                                                            This part replaces part number 373781100 - and 1 more. Click to view details
                                                                            # 002
                                                                            MPN: 373780106
                                                                            RH INJECTION WIRING
                                                                            from £397.32
                                                                            from £397.32
                                                                            # 003
                                                                            MPN: 373780105
                                                                            LH INJECTION WIRING
                                                                            from £397.32
                                                                            from £397.32
                                                                            # 004
                                                                            MPN: 313753319
                                                                            HALF SHELL RH UPPER/LH LOWER
                                                                            from £1.98
                                                                            from £1.98
                                                                            # 005
                                                                            MPN: 313753318
                                                                            HALF SHELL RH LOWER/LH UPPER
                                                                            from £1.98
                                                                            from £1.98
                                                                            # 006
                                                                            MPN: 14304621
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 007
                                                                            MPN: 14496400
                                                                            WASHER
                                                                            from £0.87
                                                                            from £0.87
                                                                            # 008
                                                                            MPN: 571084200
                                                                            IGNITION COIL
                                                                            from £134.00
                                                                            from £134.00
                                                                            This part replaces part number 571084201
                                                                            # 009
                                                                            MPN: 571085101
                                                                            EXTENSION
                                                                            from £69.95
                                                                            from £69.95
                                                                            # 010
                                                                            MPN: 313253225
                                                                            SPARK PLUG
                                                                            from £6.40
                                                                            from £6.40
                                                                            This part replaces part number 97143
                                                                            # 011
                                                                            MPN: 571982001
                                                                            BOTTOM COILS SUPPORT
                                                                            from £15.40
                                                                            from £15.40
                                                                            # 012
                                                                            MPN: 571087901
                                                                            TOP COILS SUPPORT
                                                                            from £3.74
                                                                            from £3.74
                                                                            # 013
                                                                            MPN: 12604279
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 014
                                                                            MPN: 14304621
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 015
                                                                            MPN: 14304821
                                                                            ALLEN SCREW
                                                                            from £0.53
                                                                            from £0.53

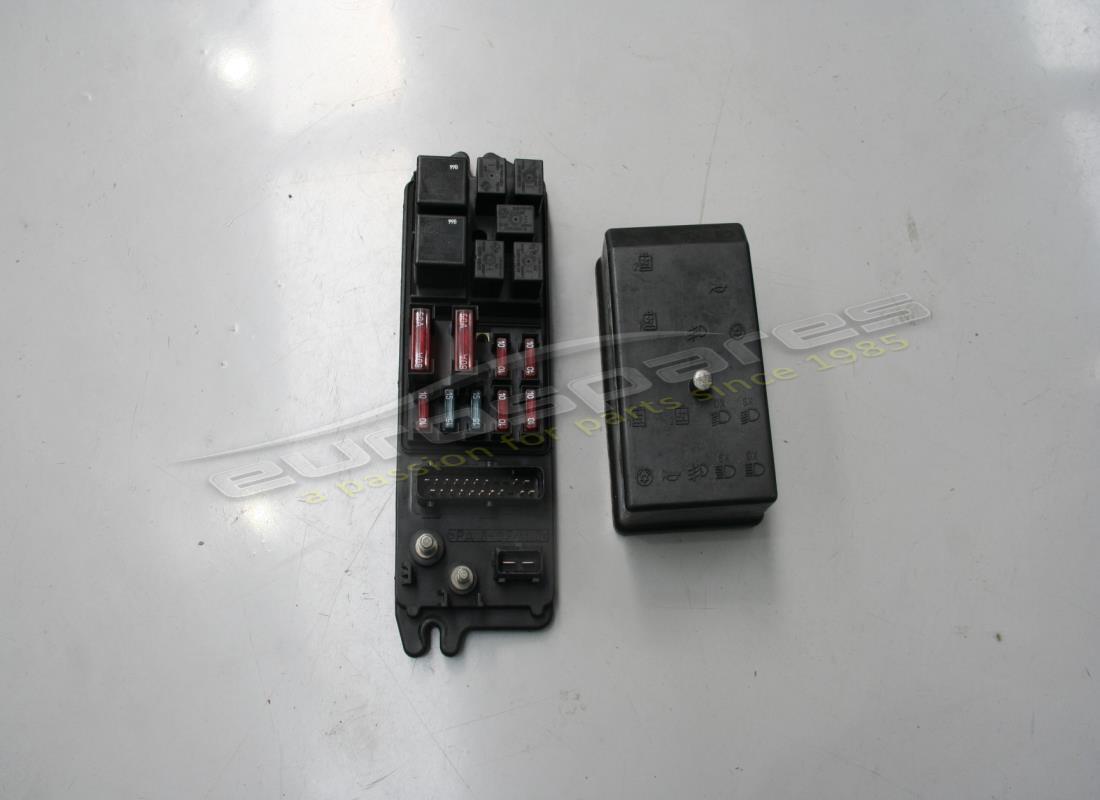

                                                                            # 016
                                                                            MPN: 373330178
                                                                            CONTROL UNIT
                                                                            from £301.94
                                                                            from £301.94
                                                                            # 017
                                                                            MPN: 10902521
                                                                            SCREW
                                                                            from £0.71
                                                                            from £0.71
                                                                            # 018
                                                                            MPN: 12604279
                                                                            SPRING WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 019
                                                                            MPN: 14498801
                                                                            FLAT WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 020
                                                                            MPN: 373330188
                                                                            50A RELAY
                                                                            Supersession
                                                                            Supersession
                                                                            # 021
                                                                            MPN: 373330139
                                                                            20A MICRORELAY
                                                                            from £4.02
                                                                            from £4.02
                                                                            # 022
                                                                            MPN: 10902221
                                                                            SCREW
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 023
                                                                            MPN: 12604279
                                                                            SPRING WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 024
                                                                            MPN: 14498801
                                                                            FLAT WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 025
                                                                            MPN: 363201119
                                                                            HEAT SINK SUPPORT
                                                                            from £4.77
                                                                            from £4.77
                                                                            # 026
                                                                            MPN: 167590420
                                                                            SCREW
                                                                            from £1.59
                                                                            from £1.59
                                                                            # 027
                                                                            MPN: 12601079
                                                                            SPRING WASHER
                                                                            from £0.87
                                                                            from £0.87
                                                                            # 028
                                                                            MPN: 393250302
                                                                            HEAT SINK
                                                                            from £13.00
                                                                            from £13.00
                                                                            This part replaces part number 393250106
                                                                            # 029
                                                                            MPN: 164353090
                                                                            RIVET
                                                                            # 030
                                                                            MPN: 393250303
                                                                            POWER MODULE SUPPORT
                                                                            from £5.99
                                                                            from £5.99
                                                                            # 032
                                                                            MPN: 363201316
                                                                            CENTRAL SUPPORT
                                                                            from £15.46
                                                                            from £15.46
                                                                            # 033
                                                                            MPN: 119148220
                                                                            SCREW
                                                                            from £1.11
                                                                            from £1.11
                                                                            # 034
                                                                            MPN: 14498801
                                                                            FLAT WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 035
                                                                            MPN: 12604279
                                                                            SPRING WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 036
                                                                            MPN: 14305121
                                                                            ALLEN SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 037
                                                                            MPN: 373380177
                                                                            FAN RELAY CONTROL UNIT
                                                                            from £53.57
                                                                            from £53.57
                                                                            # 038
                                                                            MPN: 373330308
                                                                            GNDING POINTS COVER
                                                                            from £1.59
                                                                            from £1.59
