021.1 - Air Compressor and Bracket

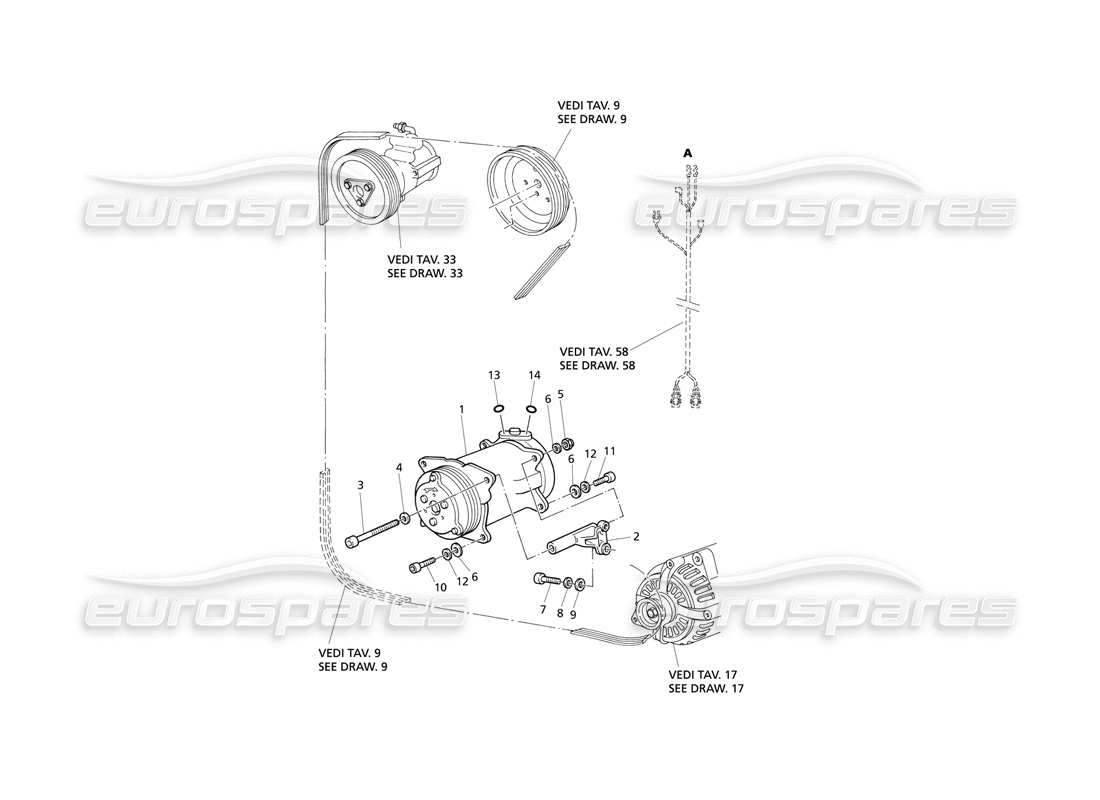

Maserati QTP V6 Evoluzione Air Compressor and Bracket Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

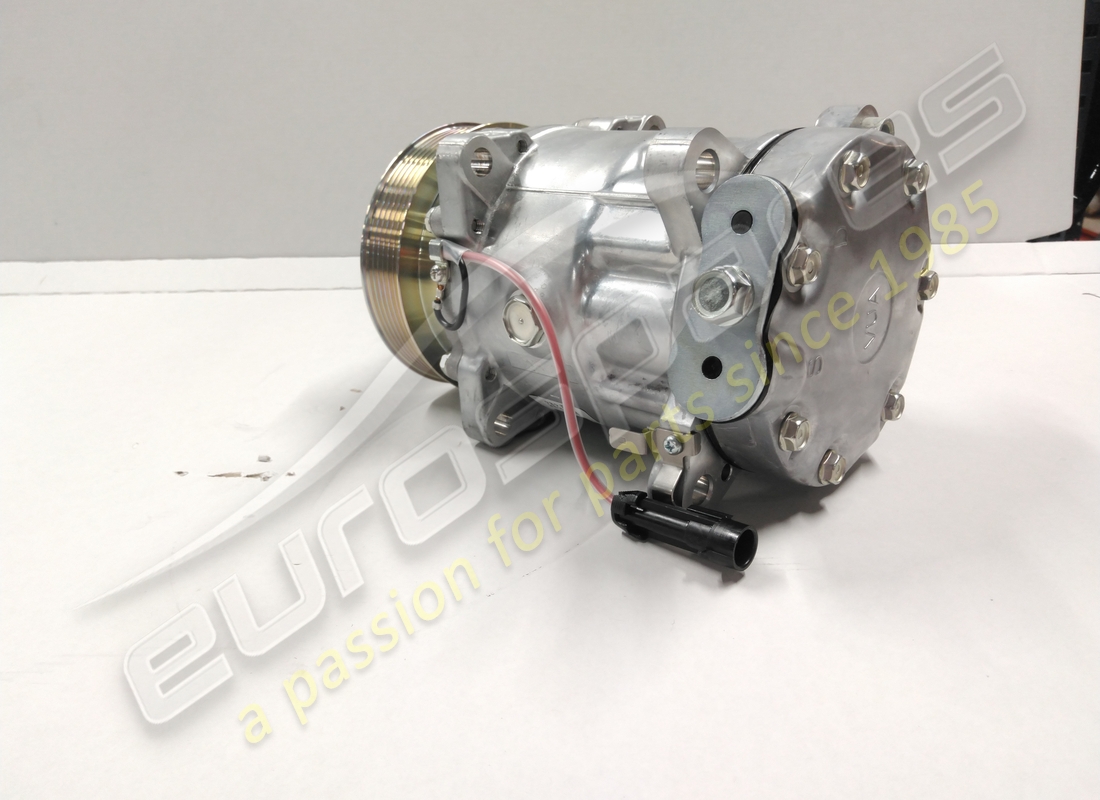

# 001
MPN: 578377502
COMPRESSOR
from £914.13
from £914.13
# 002
MPN: 578377600
SUPPORT
from £87.24
from £87.24
# 003
MPN: 97969
SCREW
from £6.65
from £6.65
# 004
MPN: 14496601
FLAT WASHER
Supersession
Supersession
# 005
MPN: 12577221
NUT
from £1.47
from £1.47
# 006
MPN: 452008901
FLAT WASHER
from £2.16
from £2.16
# 007
MPN: 311020320
ALLEN SCREW
from £1.31
from £1.31
# 008
MPN: 12604470
SPRING WASHER
from £0.93
from £0.93
# 009
MPN: 312225445
FLAT WASHER
from £0.77
from £0.77
# 010
MPN: 14420421
SCREW
from £1.55
from £1.55
# 011
MPN: 14420621
SCREW
from £1.49
from £1.49
# 012
MPN: 134700105
SPRING WASHER
from £1.08
from £1.08

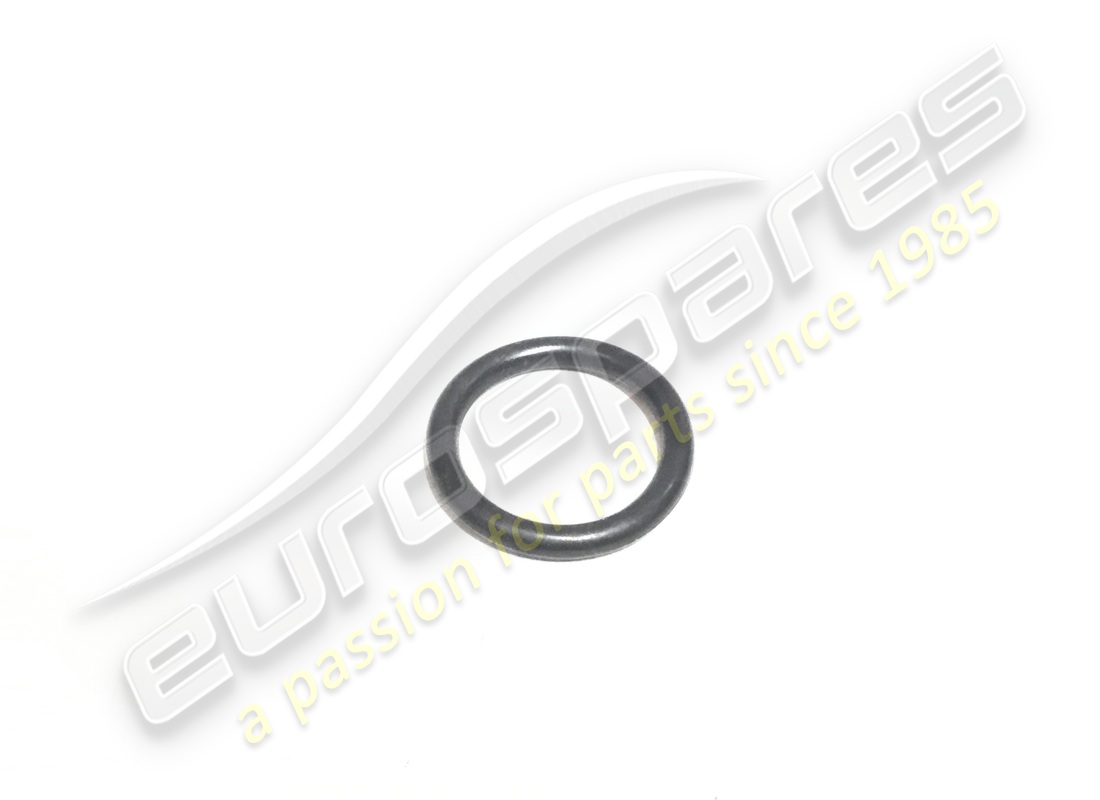

# 013
MPN: 190536
O RING Ø21
from £17.16
from £17.16

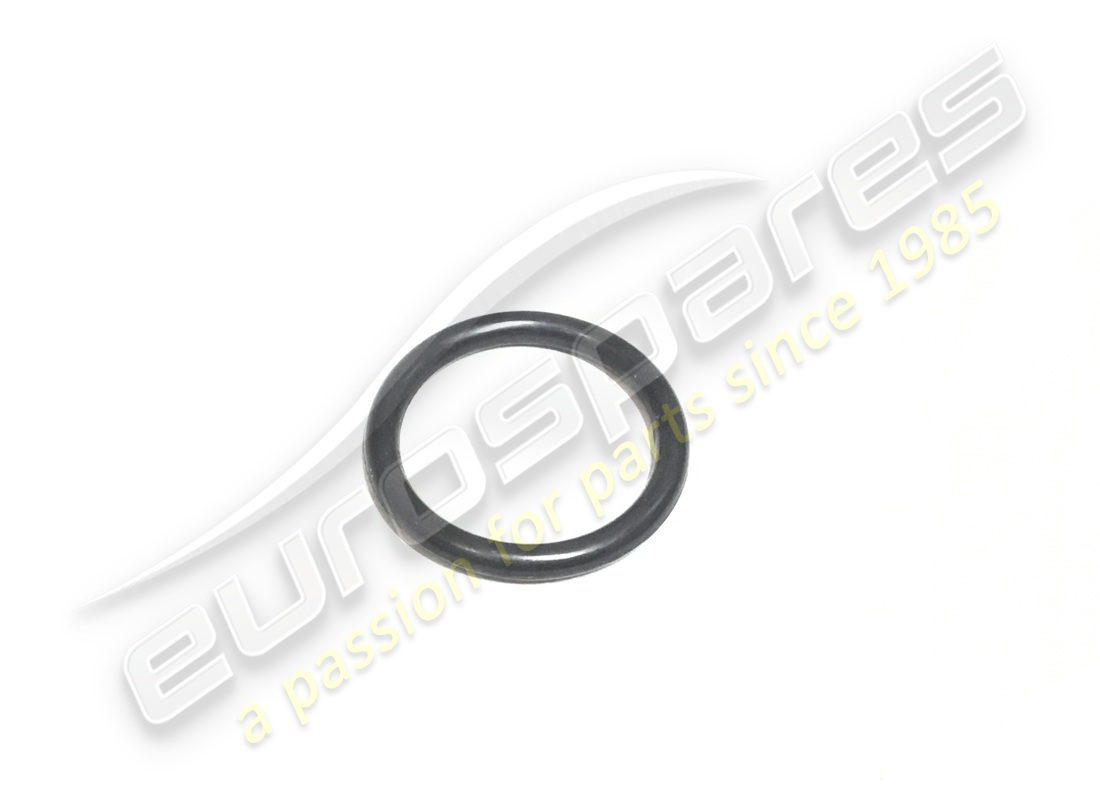

# 014
MPN: 190537
O RING Ø24
from £17.16
from £17.16
