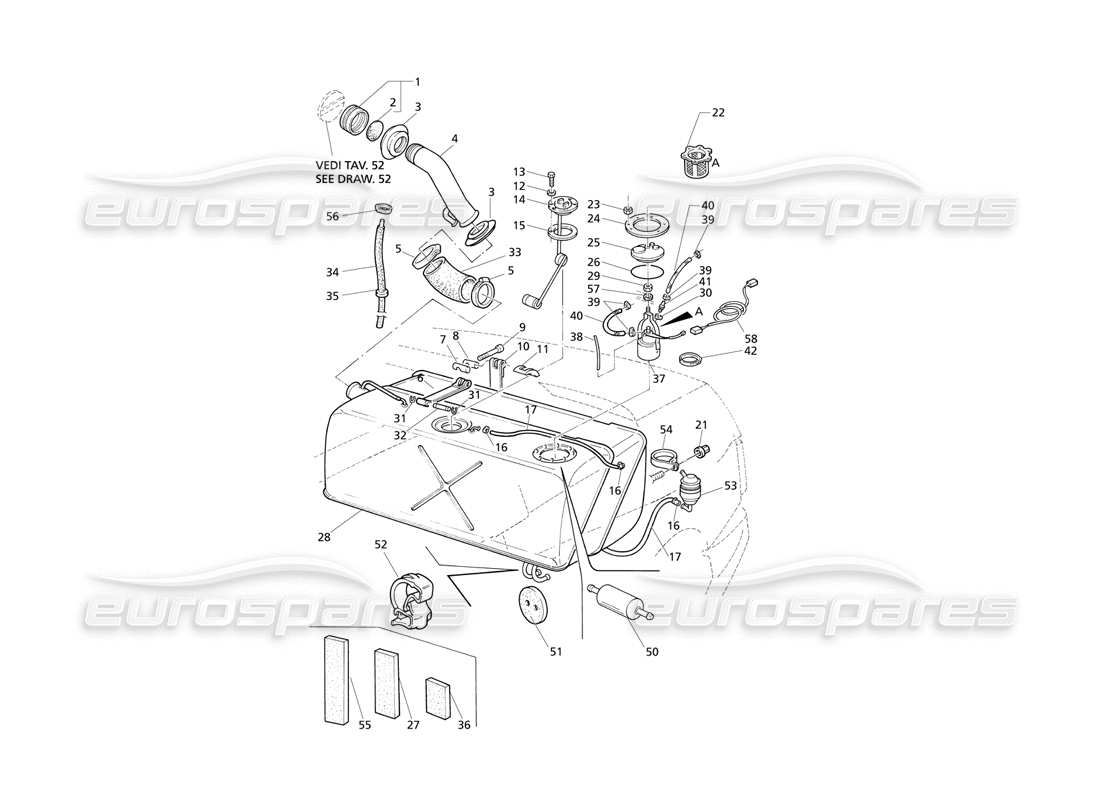

023 - FUEL TANK

Maserati QTP V6 Evoluzione Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 379290354

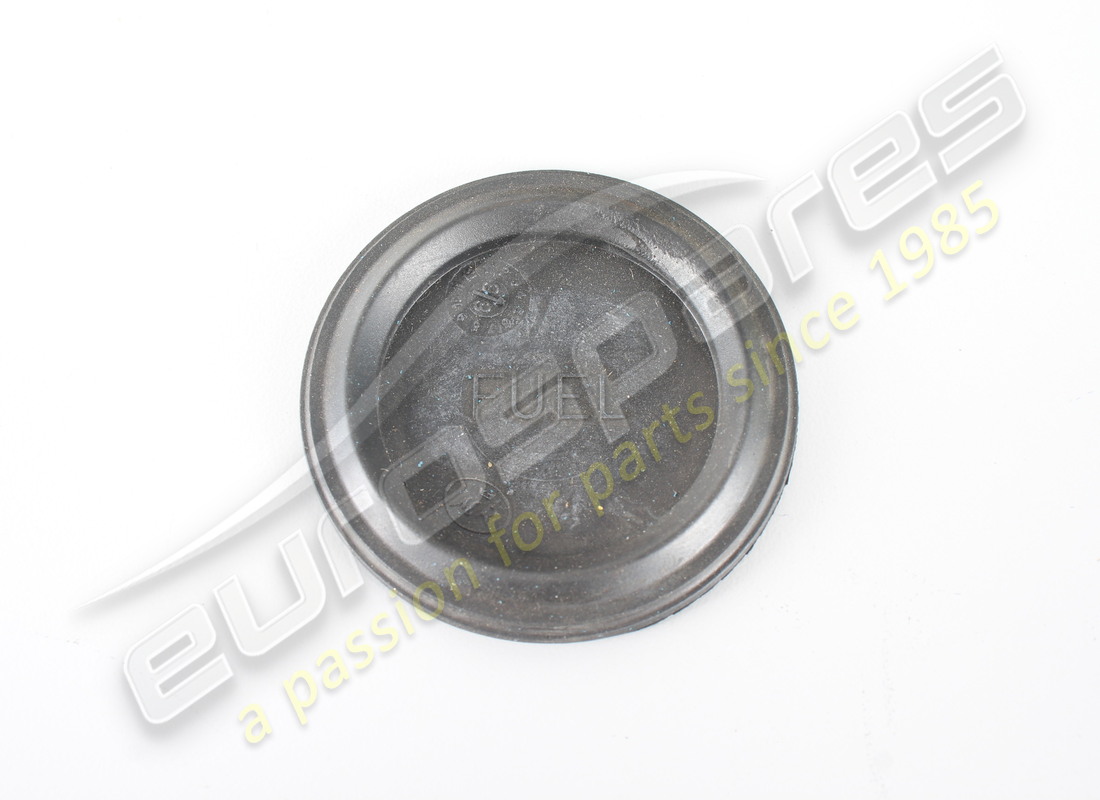

                                                                                              FUEL TANK CAP
                                                                                              from £48.58
                                                                                              from £48.58
                                                                                              # 002
                                                                                              MPN: 379290355
                                                                                              GASKET
                                                                                              from £22.88
                                                                                              from £22.88
                                                                                              # 003
                                                                                              MPN: 319250411
                                                                                              SEAL RING
                                                                                              from £3.94
                                                                                              from £3.94
                                                                                              This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                              # 004
                                                                                              MPN: 379290117
                                                                                              FILLER NECK
                                                                                              from £78.75
                                                                                              from £78.75
                                                                                              # 005
                                                                                              MPN: 374090386

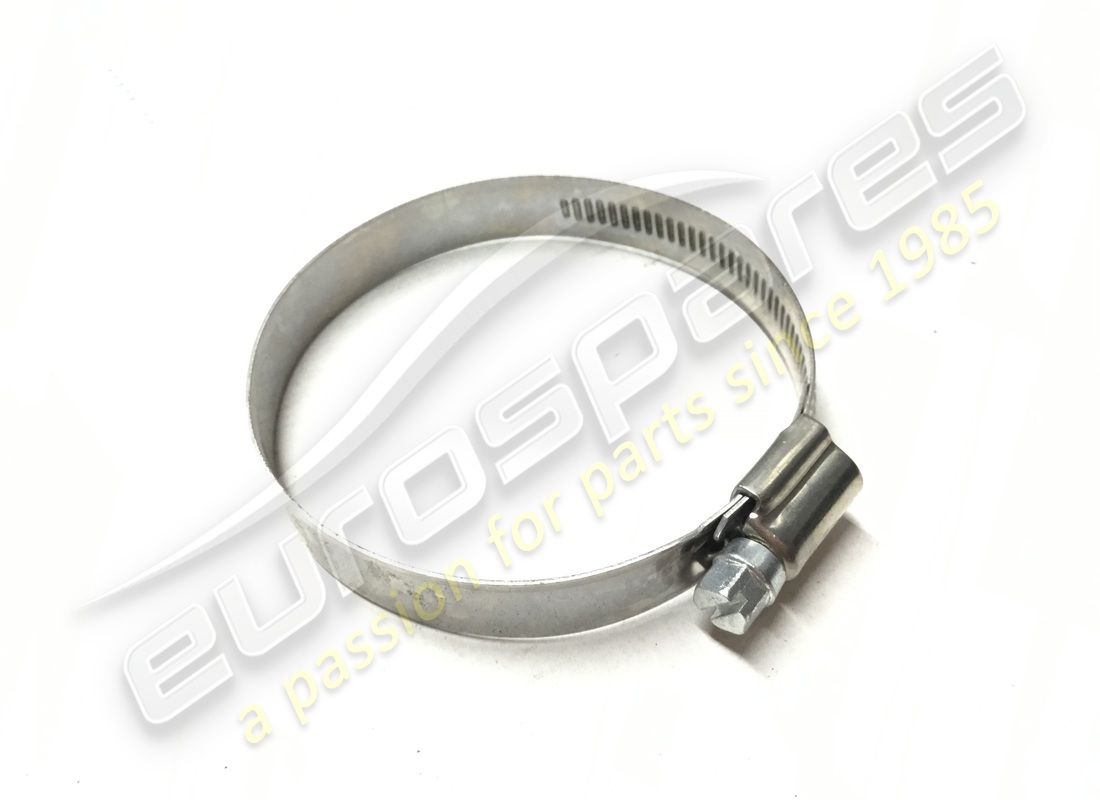

                                                                                              CLAMP
                                                                                              from £1.61
                                                                                              from £1.61
                                                                                              # 006
                                                                                              MPN: 379230384
                                                                                              TANK UPPER FASTENING STRIP
                                                                                              from £8.63
                                                                                              from £8.63
                                                                                              # 007
                                                                                              MPN: 53921332
                                                                                              STRIP PIN
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              # 008
                                                                                              MPN: 53921331
                                                                                              STRIP PIN
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 009
                                                                                              MPN: 53921333
                                                                                              SCREW
                                                                                              from £1.99
                                                                                              from £1.99
                                                                                              # 010
                                                                                              MPN: 379230385
                                                                                              TANK LOWER FASTENING STRIP
                                                                                              from £8.63
                                                                                              from £8.63
                                                                                              # 011
                                                                                              MPN: 319220337
                                                                                              STRIP RETAINING BLOCK
                                                                                              from £1.92
                                                                                              from £1.92
                                                                                              # 012
                                                                                              MPN: 136220043
                                                                                              WASHER
                                                                                              # 013
                                                                                              MPN: 53361308
                                                                                              SCREW
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 014
                                                                                              MPN: 373630111
                                                                                              FUEL GAUGE
                                                                                              from £65.53
                                                                                              from £65.53
                                                                                              # 015
                                                                                              MPN: 33331300
                                                                                              GASKET
                                                                                              from £1.92
                                                                                              from £1.92
                                                                                              # 016
                                                                                              MPN: 30921110
                                                                                              CLAMP
                                                                                              # 017
                                                                                              MPN: 318720336
                                                                                              SLEEVE
                                                                                              - Section in metres order minimum amount of 2 m
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 319220391
                                                                                              # 021
                                                                                              MPN: 14084217
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 022
                                                                                              MPN: 393750312
                                                                                              IN TANK PETROL FILTER
                                                                                              from £3.94
                                                                                              from £3.94
                                                                                              # 023
                                                                                              MPN: 13831811
                                                                                              NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 024
                                                                                              MPN: 399250446
                                                                                              FLANGE
                                                                                              from £13.81
                                                                                              from £13.81
                                                                                              # 025
                                                                                              MPN: 393750130
                                                                                              PETROL PUMP COVER
                                                                                              from £5.47
                                                                                              from £5.47
                                                                                              # 026
                                                                                              MPN: 393750309
                                                                                              GASKET
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 027
                                                                                              MPN: 379200399
                                                                                              MEDIUM FELT PAD
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              This part replaces part number 319220399
                                                                                              # 028
                                                                                              MPN: 379230006
                                                                                              FUEL TANK
                                                                                              from £1,618.73
                                                                                              from £1,618.73
                                                                                              # 029
                                                                                              MPN: 14084217
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 030
                                                                                              MPN: 559221337
                                                                                              CLAMP
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 031
                                                                                              MPN: 11087770
                                                                                              SEEGER RING
                                                                                              from £0.69
                                                                                              from £0.69
                                                                                              # 032
                                                                                              MPN: 30921336
                                                                                              PIN
                                                                                              from £3.63
                                                                                              from £3.63
                                                                                              # 033
                                                                                              MPN: 339232382
                                                                                              SLEEVE
                                                                                              from £65.47
                                                                                              from £65.47
                                                                                              # 034
                                                                                              MPN: 30871325
                                                                                              DRAINAGE TUBE
                                                                                              from £1.27
                                                                                              from £1.27
                                                                                              # 035
                                                                                              MPN: 319220361
                                                                                              FAIRLEAD
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              # 036
                                                                                              MPN: 379200398
                                                                                              SHORT FELT PAD
                                                                                              from £2.31
                                                                                              from £2.31
                                                                                              This part replaces part number 319220398
                                                                                              # 037
                                                                                              MPN: 393750135
                                                                                              IN TANK FUEL PUMP
                                                                                              from £295.00
                                                                                              from £295.00
                                                                                              This part replaces part number 393750134
                                                                                              # 038
                                                                                              MPN: 97470
                                                                                              RUBBER GASKET
                                                                                              from £43.68
                                                                                              from £43.68
                                                                                              This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                              # 039
                                                                                              MPN: 559221338
                                                                                              CLAMP
                                                                                              from £0.69
                                                                                              from £0.69
                                                                                              # 040
                                                                                              MPN: 398750368
                                                                                              SLEEVE
                                                                                              - Section in metres order minimum amount of 2 m
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 041
                                                                                              MPN: 399250432
                                                                                              UNION
                                                                                              from £1.26
                                                                                              from £1.26
                                                                                              # 042
                                                                                              MPN: 186403060
                                                                                              CLAMP
                                                                                              from £1.08
                                                                                              from £1.08

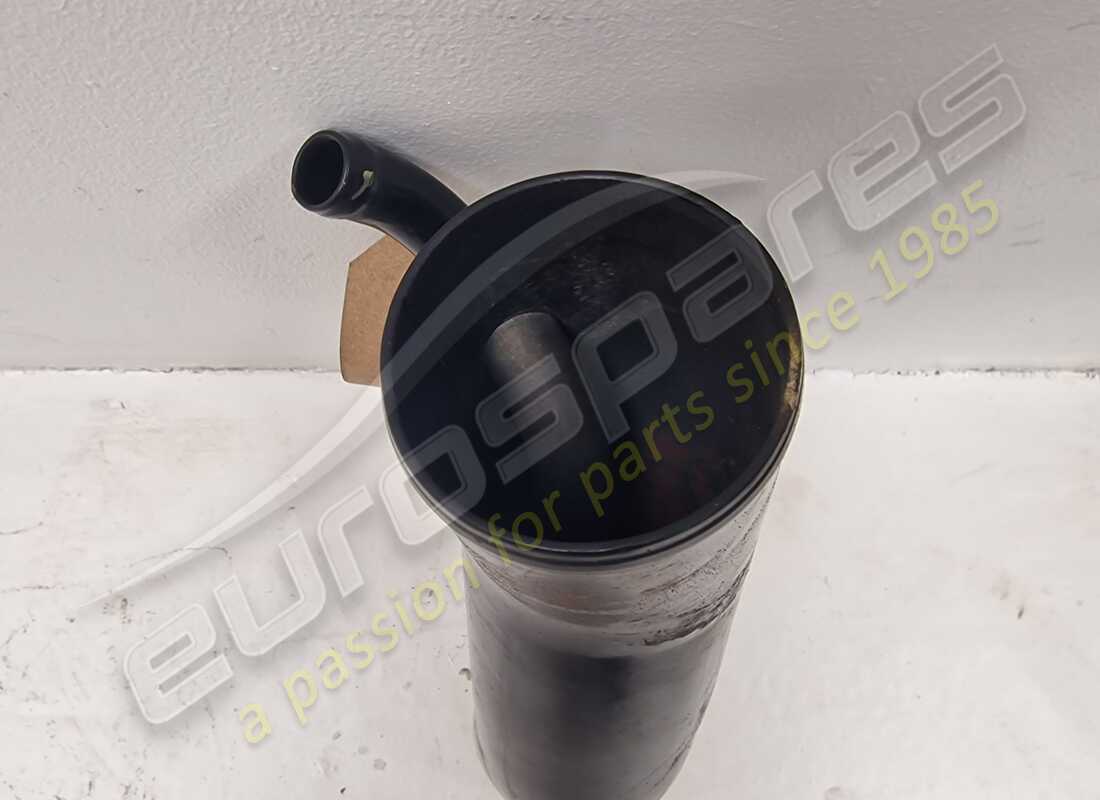

                                                                                              # 050
                                                                                              MPN: 379200141
                                                                                              IN TANK FUEL FILTER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 319220141
                                                                                              # 051
                                                                                              MPN: 399250440
                                                                                              ANTI VIBRATION PAD
                                                                                              from £4.63
                                                                                              from £4.63
                                                                                              # 052
                                                                                              MPN: 379290721
                                                                                              CLIP
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              # 053
                                                                                              MPN: 379200102
                                                                                              CHECK VALVE FOR VEHICLE TURNOVER
                                                                                              from £16.80
                                                                                              from £16.80
                                                                                              This part replaces part number 319220102 - and 1 more. Click to view details
                                                                                              # 054
                                                                                              MPN: 379200410
                                                                                              CLAMP
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 055
                                                                                              MPN: 379200397
                                                                                              LONG FELT PAD
                                                                                              from £3.08
                                                                                              from £3.08
                                                                                              # 056
                                                                                              MPN: 377491311
                                                                                              CLAMP
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 058
                                                                                              MPN: 393750128
                                                                                              IN TANK PUMP WIRING
                                                                                              from £4.42
                                                                                              from £4.42
