033.1 - Power Steering Pump and Oil Radiator

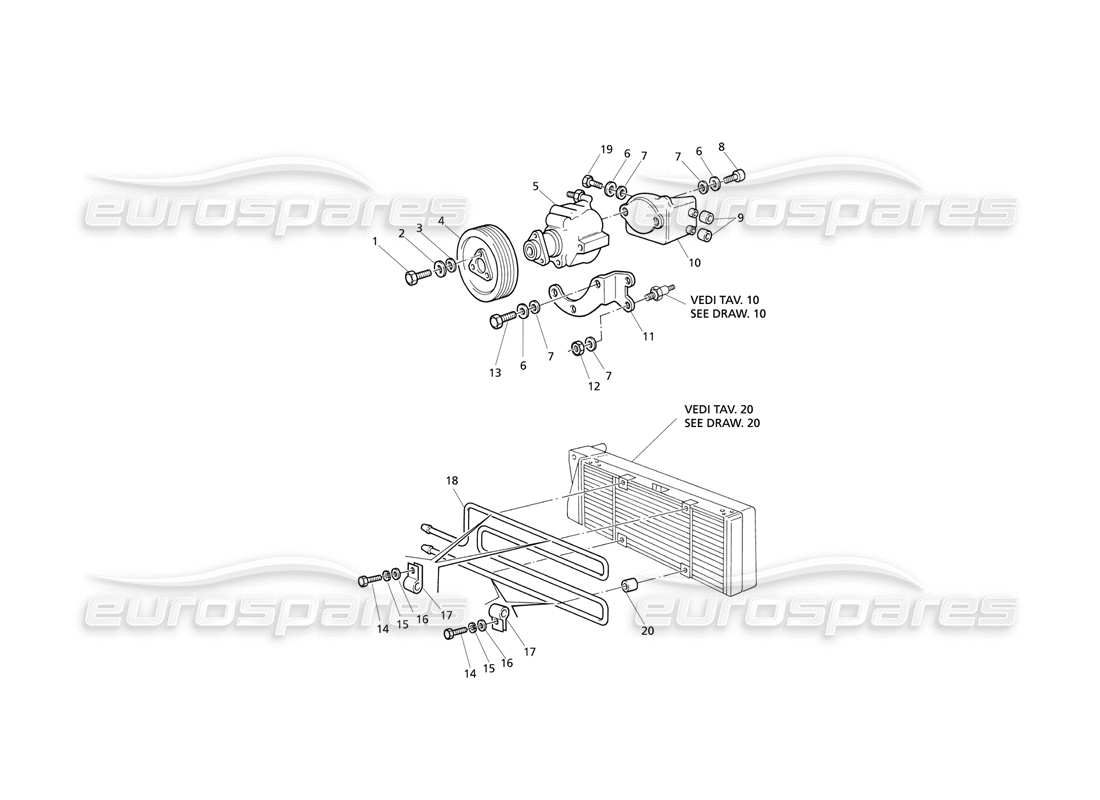

Maserati QTP V6 Evoluzione Power Steering Pump and Oil Radiator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 16043421
T.E. SCREW
from £2.58
from £2.58
This part replaces part number 16043411
# 002
MPN: 12604470
SPRING WASHER
from £0.88
from £0.88
# 003
MPN: 312225445
FLAT WASHER
from £0.77
from £0.77
# 004
MPN: 578480302
PULLEY
from £55.94
from £55.94
# 005
MPN: 578480102
PAS PUMP
POWER STEERING
from £99.75
from £99.75
# 006
MPN: 12604470
SPRING WASHER
from £0.87
from £0.87
# 007
MPN: 312225445
FLAT WASHER
from £0.77
from £0.77
# 008
MPN: 14306421
T.E. SCREW
Supersession
Supersession
# 009
MPN: 311820309
BUSH
from £16.43
from £16.43
# 010
MPN: 578480201
PUMP SUPPORT
from £12.96
from £12.96
# 011
MPN: 578484001
BRACKET
from £20.43
from £20.43
# 012
MPN: 16104111
STOP NUT
from £1.07
from £1.07
# 013
MPN: 16043221
T.E. SCREW
from £0.54
from £0.54
# 014
MPN: 112805016
T.E. SCREW
# 015
MPN: 138410050
SPRING WASHER
# 016
MPN: 136110055
FLAT WASHER
from £0.77
from £0.77
# 017
MPN: 377492352
CLAMP
from £1.52
from £1.52
This part replaces part number 377491352
# 018
MPN: 387800618
RADIATOR
from £34.30
from £34.30
# 019
MPN: 14306721
T.C. SCREW
from £0.47
from £0.47
# 020
MPN: 397850624
SPACER
from £2.37
from £2.37
