![maserati qtp v6 evoluzione clutch pedal and pump pedal support parts diagram](/img/CxEAAETdFtv3g8ESLGXIGYigqJYhGoUGmc7HufTzIioajxJewsaWAQM%3D/maserati-qtp-v6-evoluzione-part-diagram-041.webp)

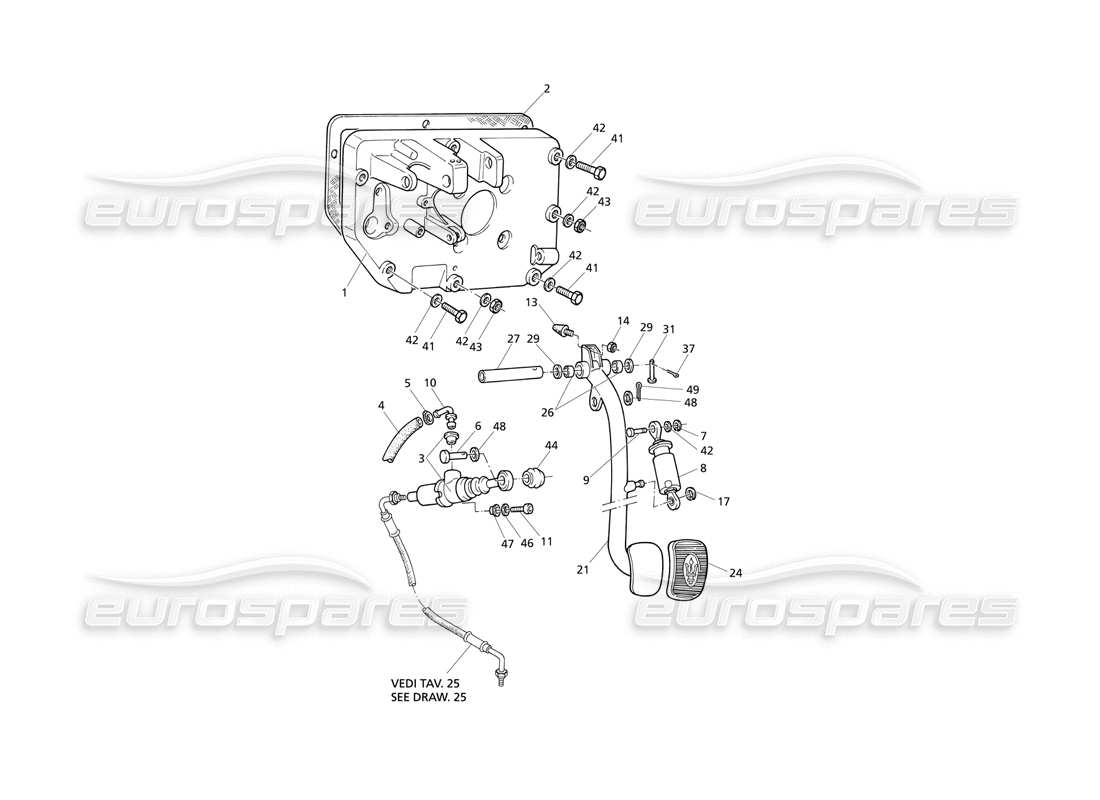

041 - Clutch Pedal and Pump Pedal Support
Maserati QTP V6 Evoluzione Clutch Pedal and Pump Pedal Support Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 378480304
SUPPORT FOR PEDAL ASSY
- Valid for M.T. version
from £2,721.65
from £2,721.65
# 001
MPN: 378481304
SUPPORT FOR PEDAL ASSY
- Valid for A.T. version
from £340.15
from £340.15
# 002
MPN: 378400348
GASKET
from £9.74
from £9.74
# 003
MPN: 378200101
PUMP
- Valid for M.T. version
from £225.00
from £225.00
# 004
MPN: 19026489
TUBE
- Valid for M.T. version
from £5.96
from £5.96
# 005
MPN: 559221338
CLAMP
- Valid for M.T. version
from £0.70
from £0.70
# 006
MPN: 378400358
PIN
- Valid for M.T. version
from £14.89
from £14.89
# 007
MPN: 11087970
SEEGER RING
from £0.70
from £0.70
# 008
MPN: 378400854
CLUTCH PEDAL SERVO CONTROL
- Valid for M.T. version
from £41.54
from £41.54
# 009
MPN: 378419377
PIN
- Valid for M.T. version
from £11.38
from £11.38
# 010
MPN: 378200340
UNION
- Valid for M.T. version
from £5.32
from £5.32
# 011
MPN: 14433121
ALLEN SCREW
from £1.22
from £1.22
# 013
MPN: 364700180
LIMIT STOP
from £2.85
from £2.85
# 014
MPN: 15896221
NUT
from £0.71
from £0.71
# 014
MPN: 15896221
NUT
from £0.71
from £0.71
# 015
MPN: 378405120
IDROSTOP SUPPORT
from £11.07
from £11.07
# 016
MPN: 373301180
IDROSTOP
from £5.14
from £5.14
This part replaces part number 323850107
# 017
MPN: 11088070
SEEGER RING
from £0.70
from £0.70
# 017
MPN: 150800090
SEEGER RING
from £0.47
from £0.47
# 018
MPN: 318420346
TEFLON WASHER
from £1.09
from £1.09
# 019
MPN: 12604279
SPRING WASHER
from £0.47
from £0.47
# 020
MPN: 14498801
FLAT WASHER
from £0.47
from £0.47
# 021
MPN: 378480122
CLUTCH PEDAL
- Valid for M.T. version
from £147.36
from £147.36
# 022
MPN: 378480104
BRAKE PEDAL
- Valid for M.T. version
from £147.36
from £147.36
# 023
MPN: 378480113
SPEED PEDAL
from £18.32
from £18.32
This part replaces part number 378433113
# 024
MPN: 378430300
BRAKE AND CLUTCH PEDAL COVER
- Valid for M.T. version
from £70.79
from £70.79
This part replaces part number 191496
# 024
MPN: 378430300
BRAKE AND CLUTCH PEDAL COVER
- Valid for M.T. version
from £70.79
from £70.79
This part replaces part number 191496
# 025
MPN: 318420301
SPEED PEDAL COVER
from £1.53
from £1.53
# 026
MPN: 318420320
BUSH
from £9.74
from £9.74
# 026
MPN: 318420320
BUSH
from £9.74
from £9.74
# 027
MPN: 378430329
PIN
from £46.44
from £46.44
# 027
MPN: 378430329
PIN
from £46.44
from £46.44
# 029
MPN: 368402321
SPACER WASHER
from £1.09
from £1.09
# 029
MPN: 368402321
SPACER WASHER
from £1.09
from £1.09
# 030
MPN: 364700180
LIMIT STOP
from £2.85
from £2.85
# 031
MPN: 378480377
PIN
from £50.50
from £50.50
# 031
MPN: 378480377
PIN
from £50.50
from £50.50
# 032
MPN: 378400341
PIN
from £15.58
from £15.58
# 033
MPN: 318420334
BUSH
from £1.56
from £1.56
# 034
MPN: 10903221
SCREW
from £1.09
from £1.09
# 035
MPN: 378400368
PIN
from £81.83
from £81.83
# 036
MPN: 368402308
SPRING
from £2.99
from £2.99
# 037
MPN: 58841309
SAFETY CLIP
from £1.96
from £1.96
This part replaces part number 670000498 - and 2 more. Click to view details
# 037
MPN: 58841309
SAFETY CLIP
from £1.96
from £1.96
This part replaces part number 670000498 - and 2 more. Click to view details
# 039
MPN: 378481104
BRAKE PEDAL
- Valid for A.T. version
from £769.03
from £769.03
# 040
MPN: 318432300
PEDAL COVER
- Valid for A.T. version
from £2.43
from £2.43
# 041
MPN: 16044121
SCREW
from £0.71
from £0.71
# 042
MPN: 14496501
WASHER
from £0.86
from £0.86
# 043
MPN: 16104421
NUT
from £0.81
from £0.81
# 044
MPN: 9532
BUSHING SECUR. CLUTCH PUMP
- Valid for M.T. version
from £2.34
from £2.34
# 045
MPN: 14305121
SCREW
from £0.47
from £0.47
# 046
MPN: 12604279
SPRING WASHER
from £0.47
from £0.47
# 046
MPN: 135910064
FLAT WASHER
# 047
MPN: 378419378
BUSH
- Valid for M.T. version
from £4.67
from £4.67
# 048
MPN: 97955
FLAT WASHER
from £1.32
from £1.32
# 049
MPN: 33065
SPLIT PIN
from £0.70
from £0.70
