042 - ABS Hydraulic Brake Lines

Maserati QTP V6 Evoluzione ABS Hydraulic Brake Lines Parts Diagram

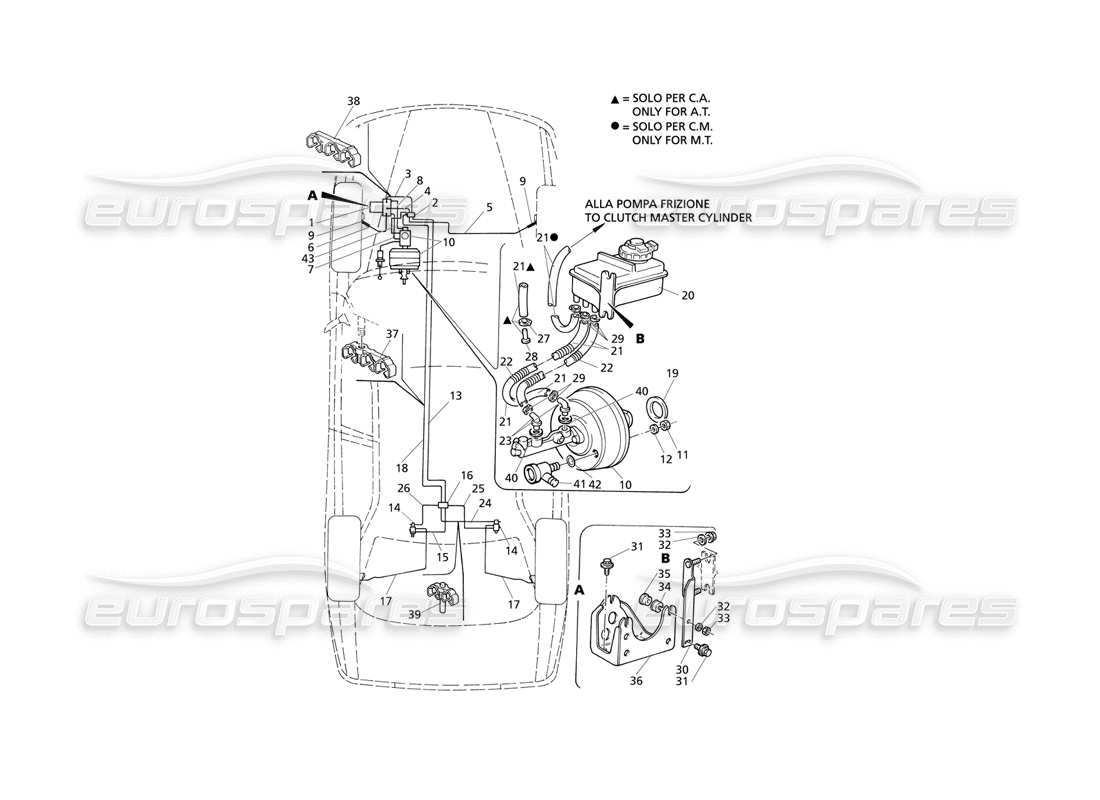

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 373830316

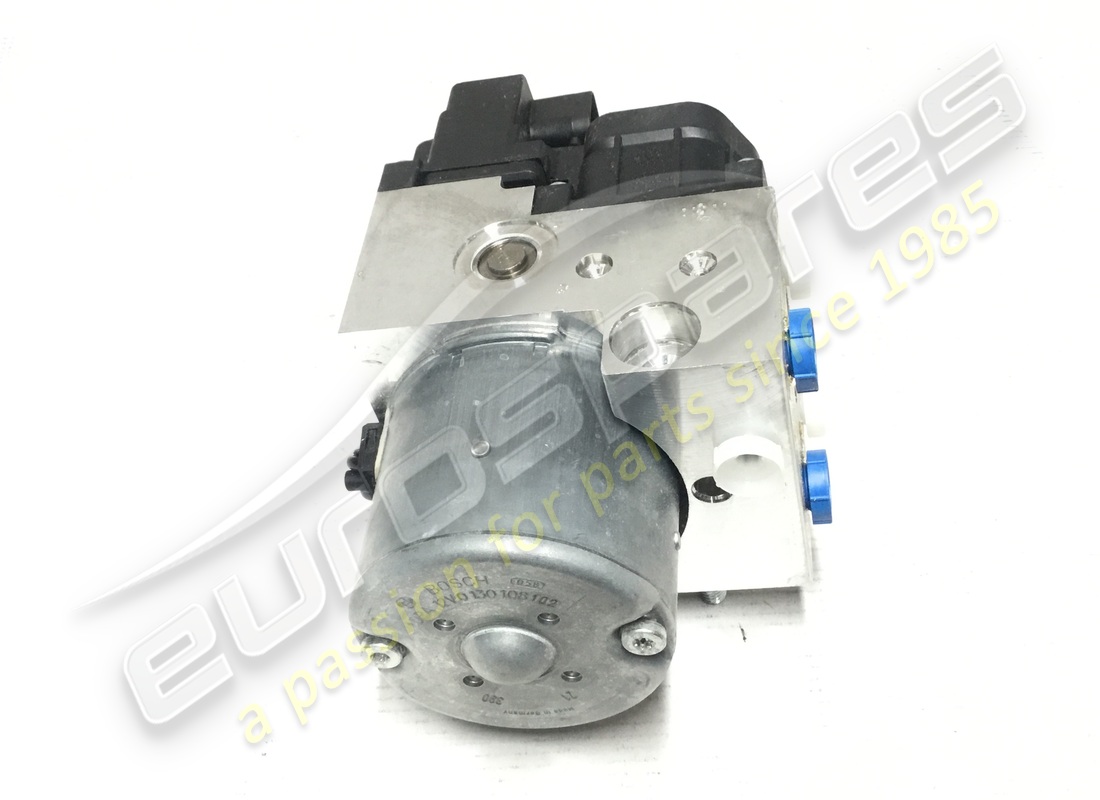

                                                                              A.B.S. UNIT
                                                                              from £2,696.16
                                                                              from £2,696.16
                                                                              This part replaces part number 373830315 which we have in stock
                                                                              # 002
                                                                              MPN: 377401325
                                                                              TUBE BRANCHING BLOCK
                                                                              from £35.66
                                                                              from £35.66
                                                                              # 003
                                                                              MPN: 377401149
                                                                              RETURN TUBE FROM BLOCK
                                                                              from £12.26
                                                                              from £12.26
                                                                              # 004
                                                                              MPN: 377401144
                                                                              DELIVERY TUBE TO BLOCK
                                                                              from £11.76
                                                                              from £11.76
                                                                              # 005
                                                                              MPN: 367402146
                                                                              FRONT RH BRAKE CONNECTING TUBE
                                                                              from £18.11
                                                                              from £18.11
                                                                              # 006
                                                                              MPN: 377401143
                                                                              FRONT LH BRAKE CONNECTING TUBE
                                                                              from £14.73
                                                                              from £14.73
                                                                              This part replaces part number 377430143
                                                                              # 007
                                                                              MPN: 377401140
                                                                              FRONT BRAKE UNIT PUMP CONNECTING TUBE
                                                                              from £15.71
                                                                              from £15.71
                                                                              # 008
                                                                              MPN: 377401142
                                                                              REAR BRAKE UNIT PUMP CONNECTING TUBE
                                                                              from £15.23
                                                                              from £15.23
                                                                              # 009
                                                                              MPN: 367402129
                                                                              FRONT BRAKE HOSE
                                                                              from £10.01
                                                                              from £10.01
                                                                              # 010
                                                                              MPN: 377430112
                                                                              BRAKE BOOSTER WITH MASTER CYLINDER
                                                                              from £396.92
                                                                              from £396.92
                                                                              This part replaces part number 377400112 which we have in stock - and 2 more. Click to view details
                                                                              # 011
                                                                              MPN: 16100821
                                                                              NUT
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 012
                                                                              MPN: 12604470
                                                                              WASHER
                                                                              from £0.88
                                                                              from £0.88
                                                                              # 013
                                                                              MPN: 377400161
                                                                              DELIVERY TUBE TO REAR BRAKES
                                                                              from £29.04
                                                                              from £29.04
                                                                              This part replaces part number 377400159
                                                                              # 014
                                                                              MPN: 367402336
                                                                              BRAKE PROPORTIONING VALVE
                                                                              from £106.88
                                                                              from £106.88
                                                                              # 015
                                                                              MPN: 377400157
                                                                              LH MANIFOLD BLOCK CONNECTING TUBE
                                                                              from £10.78
                                                                              from £10.78
                                                                              # 016
                                                                              MPN: 377400325
                                                                              TUBE BRANCHING BLOCK
                                                                              from £38.85
                                                                              from £38.85
                                                                              # 017
                                                                              MPN: 377400155
                                                                              REAR BRAKE HOSE
                                                                              from £28.19
                                                                              from £28.19
                                                                              # 018
                                                                              MPN: 377400162
                                                                              RETUR TUBE TO BLOCK
                                                                              from £29.04
                                                                              from £29.04
                                                                              # 019
                                                                              MPN: 367402309
                                                                              RING
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 020
                                                                              MPN: 377430104
                                                                              BRAKE FLUID RESERVOIR
                                                                              Supersession
                                                                              Supersession
                                                                              # 021
                                                                              MPN: 19026489
                                                                              TUBE
                                                                              - Section In meters
                                                                              from £5.91
                                                                              from £5.91
                                                                              # 022
                                                                              MPN: 377430314
                                                                              PROTECTIVE SPRING
                                                                              from £1.41
                                                                              from £1.41
                                                                              # 023
                                                                              MPN: 377430319
                                                                              UNION ON MASTER CYLINDER
                                                                              from £13.13
                                                                              from £13.13
                                                                              # 024
                                                                              MPN: 377400154
                                                                              RH MANIFOLD BLOCK CONNECTING TUBE
                                                                              from £14.44
                                                                              from £14.44
                                                                              # 025
                                                                              MPN: 377400158
                                                                              RH MANIFOLD BLOCK CONNECTING TUBE
                                                                              from £12.75
                                                                              from £12.75
                                                                              # 026
                                                                              MPN: 377400153
                                                                              LH MANIFOLD BLOCK CONNECTING TUBE
                                                                              from £11.13
                                                                              from £11.13
                                                                              # 027
                                                                              MPN: 314022359
                                                                              CLAMP
                                                                              from £0.69
                                                                              from £0.69
                                                                              # 028

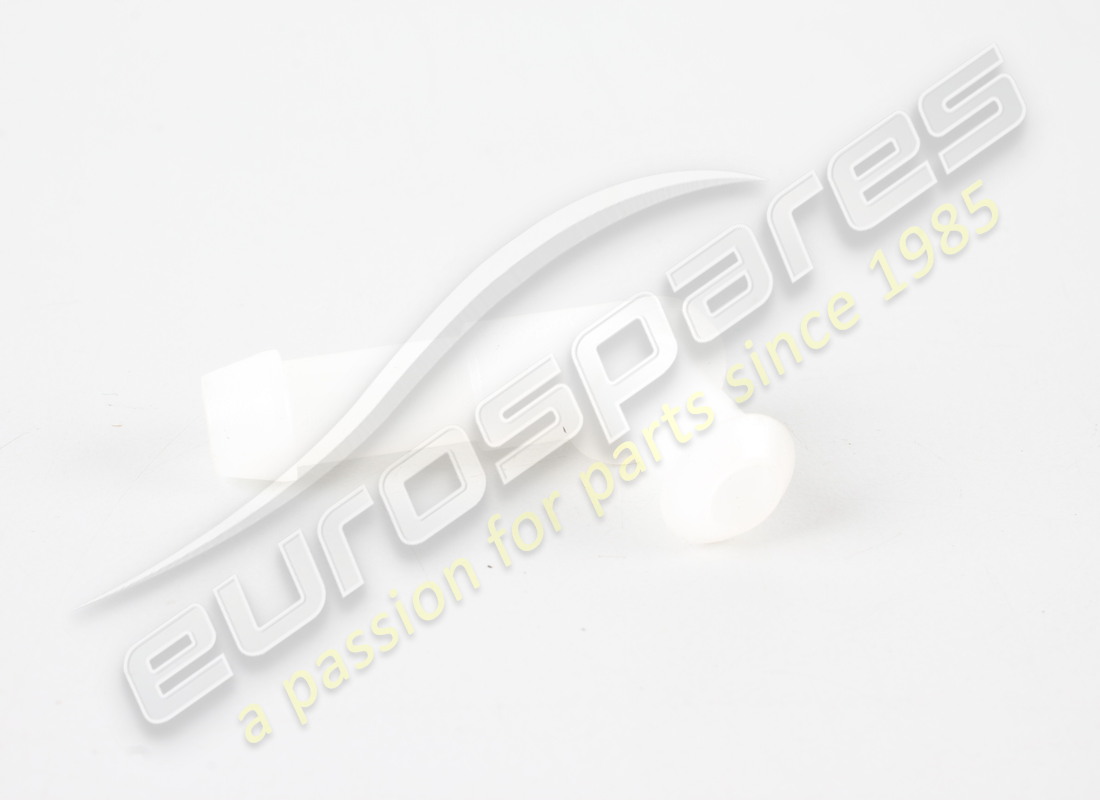

                                                                              MPN: 479362500
                                                                              PLUG
                                                                              - Valid for A.T. version
                                                                              from £2.32
                                                                              from £2.32
                                                                              # 029
                                                                              MPN: 314022359
                                                                              CLAMP
                                                                              from £0.69
                                                                              from £0.69
                                                                              # 030
                                                                              MPN: 377430157
                                                                              BRAKE FLUID TANK SUPPORT BRACKET
                                                                              from £0.77
                                                                              from £0.77
                                                                              # 031
                                                                              MPN: 11730624
                                                                              SCREW
                                                                              from £0.52
                                                                              from £0.52
                                                                              # 032
                                                                              MPN: 10523401
                                                                              WASHER
                                                                              from £0.51
                                                                              from £0.51
                                                                              # 033
                                                                              MPN: 12575421
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 12575411
                                                                              # 034
                                                                              MPN: 363802316
                                                                              CUP
                                                                              # 035
                                                                              MPN: 363802317
                                                                              RUBBER BUFFER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 036
                                                                              MPN: 373830116
                                                                              A.B.S. SUPPORT
                                                                              from £29.29
                                                                              from £29.29
                                                                              # 037
                                                                              MPN: 377400332
                                                                              CLAMP
                                                                              - As necessary
                                                                              from £0.69
                                                                              from £0.69
                                                                              # 038
                                                                              MPN: 377419334
                                                                              CLAMP
                                                                              - As necessary
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 039
                                                                              MPN: 83012
                                                                              CLAMP
                                                                              - As necessary
                                                                              from £0.69
                                                                              from £0.69
                                                                              # 040
                                                                              MPN: 377400301
                                                                              RING
                                                                              from £1.89
                                                                              from £1.89
                                                                              # 041
                                                                              MPN: 387405170
                                                                              VALVE
                                                                              from £2.25
                                                                              from £2.25
                                                                              # 042
                                                                              MPN: 387400304
                                                                              GASKET
                                                                              from £2.32
                                                                              from £2.32
                                                                              # 043
                                                                              MPN: 377401150
                                                                              BLOCK PUMP CONNECTING TUBE
                                                                              from £11.34
                                                                              from £11.34
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
