maserati qtp v6 evoluzione body shell: rear outer structure parts diagram

045.1 - Body Shell: Rear Outer Structure

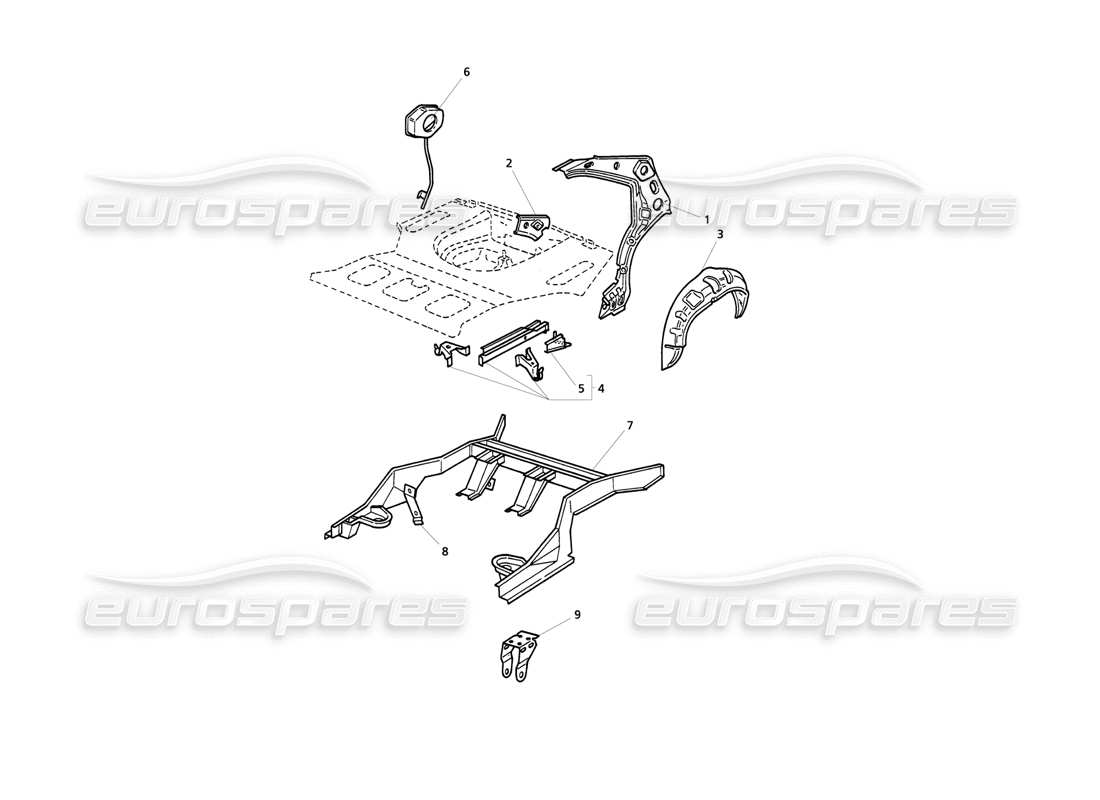

Maserati QTP V6 Evoluzione Body Shell: Rear Outer Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 372500403
                    LH PILLAR OUTER FRAME
                    from £91.23
                    from £91.23
                    # 001
                    MPN: 372500404
                    RH PILLAR OUTER FRAME
                    from £91.23
                    from £91.23
                    # 002
                    MPN: 372500201
                    LH REINFORCEMENT
                    from £17.26
                    from £17.26
                    # 002
                    MPN: 372500202
                    RH REINFORCEMENT
                    from £17.26
                    from £17.26
                    # 003
                    MPN: 372500405
                    LH OUTER WHEELARCH
                    from £64.80
                    from £64.80
                    # 003
                    MPN: 372500406
                    RH OUTER WHEELARCH
                    from £64.80
                    from £64.80
                    # 004
                    MPN: 371300257
                    REAR LH SIDE MEMBER
                    from £56.29
                    from £56.29
                    # 004
                    MPN: 371300258
                    REAR RH SIDE MEMBER
                    from £71.65
                    from £71.65
                    # 005
                    MPN: 371500237
                    REAR TOW HOOK
                    from £0.70
                    from £0.70
                    # 006
                    MPN: 372500142
                    PETROL FILLER COMPARTMENT
                    from £14.41
                    from £14.41
                    # 007
                    MPN: 371300202
                    rear chassis
                    from £314.67
                    from £314.67
                    # 008
                    MPN: 331320543
                    REAR LH SIDE MEMBER SIDE REINFORCEMENT
                    from £1.48
                    from £1.48
                    # 008
                    MPN: 331320544
                    REAR RH SIDE MEMBER SIDE REINFORCEMENT
                    from £3.17
                    from £3.17
                    # 009
                    MPN: 371300289
                    LH LOAD PROPORTIONING VALVE BRACKET
                    from £8.65
                    from £8.65
                    # 009
                    MPN: 371300290
                    RH LOAD PROPORTIONING VALVE BRACKET
                    from £8.65
                    from £8.65
