046.2 - Engine Bay: Carters

Maserati QTP V6 Evoluzione Engine Bay: Carters Parts Diagram

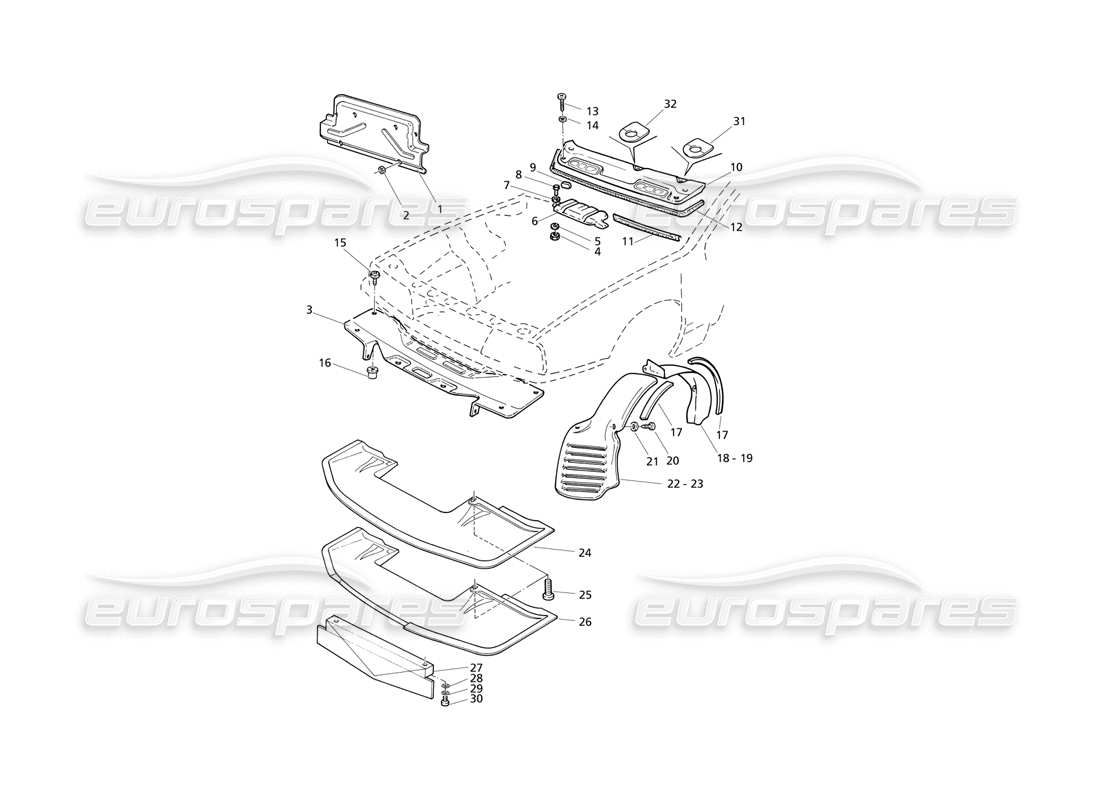

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 373330349
                                                  ABSOLUTE PRESS. SENSORS COMPARTMENT COVER
                                                  from £6.29
                                                  from £6.29
                                                  # 002
                                                  MPN: 14084111
                                                  FLANGED NUT
                                                  from £0.47
                                                  from £0.47
                                                  # 003
                                                  MPN: 374130323
                                                  ENGINE BAY UPPER CASE
                                                  from £161.85
                                                  from £161.85
                                                  # 004
                                                  MPN: 319220324
                                                  NUT SCREW
                                                  from £0.63
                                                  from £0.63
                                                  This part replaces part number 82457087
                                                  # 005
                                                  MPN: 312520511
                                                  GASKET
                                                  from £1.70
                                                  from £1.70
                                                  # 006
                                                  MPN: 312520510
                                                  WATER SHIELD
                                                  from £2.83
                                                  from £2.83
                                                  # 007
                                                  MPN: 169020005
                                                  WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 008
                                                  MPN: 15958807
                                                  SCREW
                                                  from £1.08
                                                  from £1.08
                                                  This part replaces part number 15958701
                                                  # 009
                                                  MPN: 53211300
                                                  PLUG
                                                  Supersession
                                                  Supersession
                                                  # 010
                                                  MPN: 372580504
                                                  ACCESSORY COMPARTMENT COVERY
                                                  from £135.71
                                                  from £135.71
                                                  # 011
                                                  MPN: 314320357
                                                  GASKET
                                                  from £6.42
                                                  from £6.42
                                                  This part replaces part number 318720301
                                                  # 012
                                                  MPN: 374380424
                                                  GASKET
                                                  - Order minimum amount of 1 m or multiples
                                                  from £16.31
                                                  from £16.31
                                                  This part replaces part number 318720355
                                                  # 013
                                                  MPN: 119142160
                                                  SCREW
                                                  from £0.90
                                                  from £0.90
                                                  # 014
                                                  MPN: 135000043
                                                  FLAT WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 015
                                                  MPN: 161600510
                                                  SELF THREADING SCREW
                                                  from £4.88
                                                  from £4.88
                                                  # 016
                                                  MPN: 378300387
                                                  NUT SCREW
                                                  from £2.32
                                                  from £2.32
                                                  # 017
                                                  MPN: 374380424
                                                  GASKET
                                                  - Order minimum amount of 1 m or multiples
                                                  from £16.31
                                                  from £16.31
                                                  This part replaces part number 318720355
                                                  # 018
                                                  MPN: 372500505

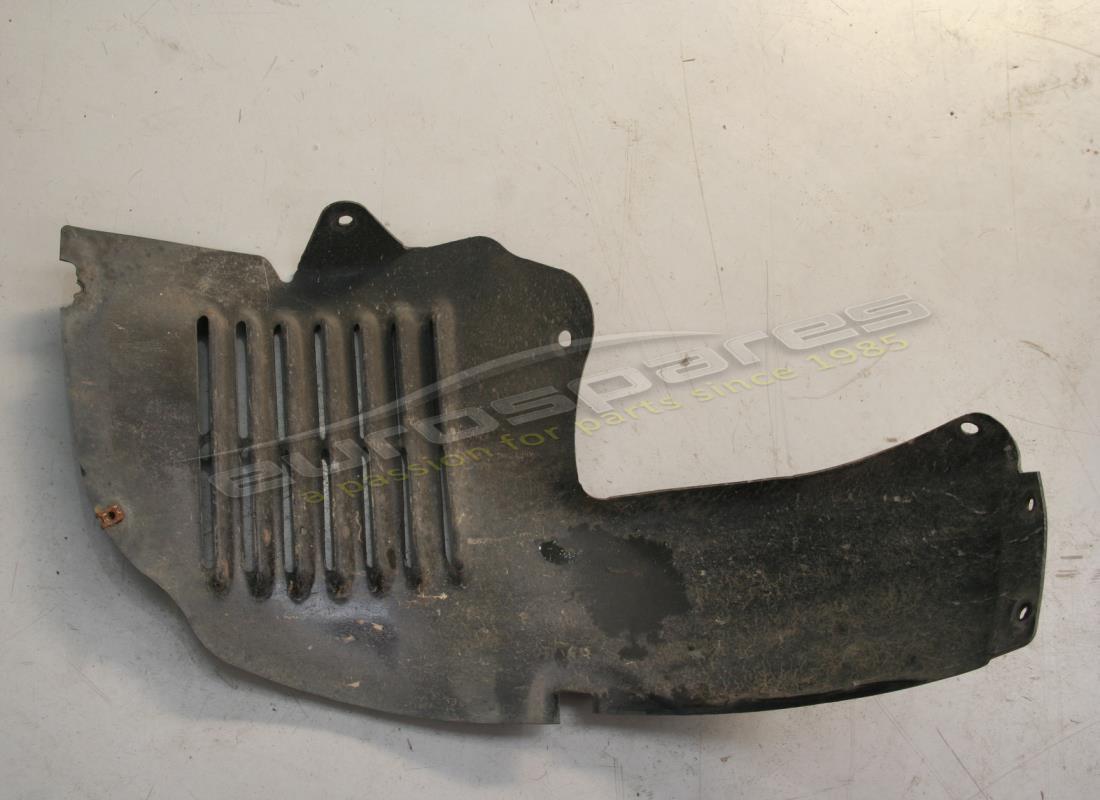

                                                  LH MUDGUARD
                                                  from £23.56
                                                  from £23.56
                                                  # 019
                                                  MPN: 372500506
                                                  RH MUDGUARD
                                                  from £23.56
                                                  from £23.56
                                                  # 020
                                                  MPN: 1477810
                                                  SCREW
                                                  Supersession
                                                  Supersession
                                                  # 021
                                                  MPN: 312552529
                                                  PVC WASHER
                                                  Supersession
                                                  Supersession
                                                  # 022
                                                  MPN: 372580525
                                                  LH MUDGUARD
                                                  from £213.07
                                                  from £213.07
                                                  This part replaces part number 372530525
                                                  # 023
                                                  MPN: 372580526
                                                  RH MUDGUARD
                                                  from £117.19
                                                  from £117.19
                                                  This part replaces part number 372530526 - and 1 more. Click to view details
                                                  # 024
                                                  MPN: 376190300
                                                  ENGINE GUARD LOWER CASE
                                                  - Valid for M.T. version
                                                  from £108.28
                                                  from £108.28
                                                  # 025
                                                  MPN: 327720338
                                                  SCREW
                                                  from £1.55
                                                  from £1.55
                                                  # 026
                                                  MPN: 376191300
                                                  ENGINE GUARD LOWER CASE
                                                  - Valid for A.T. version
                                                  from £234.81
                                                  from £234.81
                                                  # 027
                                                  MPN: 374091392
                                                  AIR DUCT
                                                  - Valid for A.T. version
                                                  from £90.40
                                                  from £90.40
                                                  # 028
                                                  MPN: 136110055
                                                  WASHER
                                                  - Valid for A.T. version
                                                  from £0.77
                                                  from £0.77
                                                  # 029
                                                  MPN: 138410050
                                                  WASHER
                                                  - Valid for A.T. version
                                                  # 030
                                                  MPN: 101205012
                                                  SCREW
                                                  - Valid for A.T. version
                                                  # 031
                                                  MPN: 373300352
                                                  TRIM
                                                  from £0.76
                                                  from £0.76
                                                  # 032
                                                  MPN: 373300351
                                                  TRIM
                                                  from £0.61
                                                  from £0.61
