maserati qtp v6 evoluzione front lights parts diagram

056 - Front Lights

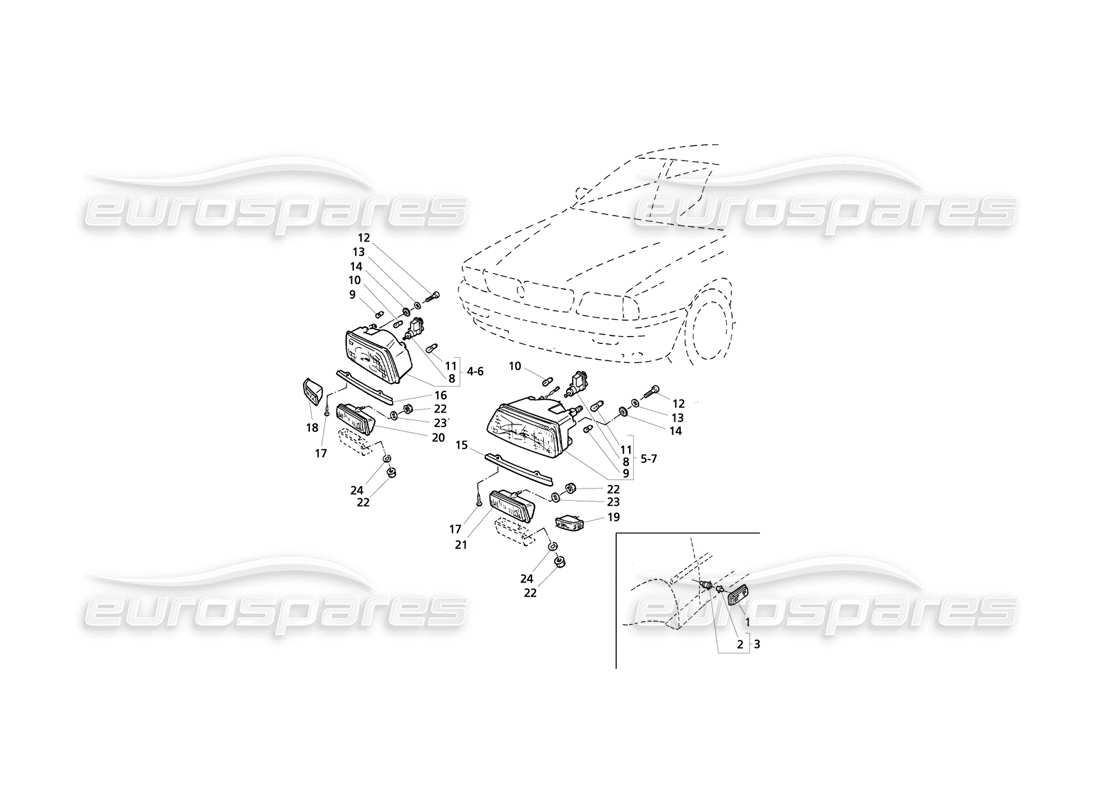

Maserati QTP V6 Evoluzione Front Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 373180127
                                    SIDE DIRECTION INDICATOR
                                    from £48.30
                                    from £48.30
                                    This part replaces part number 363100127
                                    # 002
                                    MPN: 87760005
                                    12V 5W BULB
                                    from £0.96
                                    from £0.96
                                    # 003
                                    MPN: 313152128
                                    BULB HOLDER ASSY
                                    from £1.08
                                    from £1.08
                                    # 004
                                    MPN: 373100100
                                    FRONT RH HEADLAMP ASSY
                                    - Except Japan
                                    from £820.57
                                    from £820.57
                                    # 005
                                    MPN: 373100101
                                    FRONT LH HEADLAMP ASSY
                                    - Except Japan
                                    from £820.57
                                    from £820.57
                                    # 006
                                    MPN: 373115100
                                    FRONT RH HEADLAMP ASSY
                                    - Only Japan
                                    from £244.46
                                    from £244.46
                                    # 007
                                    MPN: 373115101
                                    FRONT LH HEADLAMP ASSY
                                    - Only Japan
                                    from £245.96
                                    from £245.96
                                    # 008
                                    MPN: 373100109
                                    HEADLIGHT BEAM ALIGNMENT ACTUATOR
                                    from £8.44
                                    from £8.44
                                    # 009
                                    -
                                    DIPPED BEAM BULB
                                    # 010
                                    -
                                    MAIN BEAM BULB
                                    # 011
                                    -
                                    SIDE LIGHTS BULB
                                    # 012
                                    MPN: 14071911
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    # 013
                                    MPN: 135600050
                                    INDENTED WASHER
                                    from £1.16
                                    from £1.16
                                    # 014
                                    MPN: 136110055
                                    FLAT WASHER
                                    from £0.77
                                    from £0.77
                                    # 015
                                    MPN: 378300305
                                    LH FINISHER UNDER HEADLAMP
                                    from £4.79
                                    from £4.79
                                    # 016
                                    MPN: 378300306
                                    RH FINISHER UNDER HEADLAMP
                                    from £8.71
                                    from £8.71
                                    # 017
                                    MPN: 119935190
                                    SCREW
                                    from £1.08
                                    from £1.08
                                    # 018
                                    MPN: 373100130
                                    RH DIRECTION INDICATOR ASSY
                                    from £46.61
                                    from £46.61
                                    # 019
                                    MPN: 373100131
                                    LH DIRECTION INDICATOR ASSY
                                    from £291.20
                                    from £291.20
                                    # 020
                                    MPN: 373100114
                                    RH FOGLAMP ASSY
                                    from £44.31
                                    from £44.31
                                    # 021
                                    MPN: 373100115
                                    LH FOGLAMP ASSY
                                    from £24.37
                                    from £24.37
                                    # 022
                                    MPN: 14084111
                                    FLANGED NUT
                                    from £0.52
                                    from £0.52
                                    # 023
                                    MPN: 136110055
                                    WASHER
                                    from £0.77
                                    from £0.77
                                    # 024
                                    MPN: 14496301
                                    WASHER
                                    from £0.88
                                    from £0.88
                                    This part replaces part number 13506724
