062 - Dashboard: Leather Upholstery

Maserati QTP V6 Evoluzione Dashboard: Leather Upholstery Parts Diagram

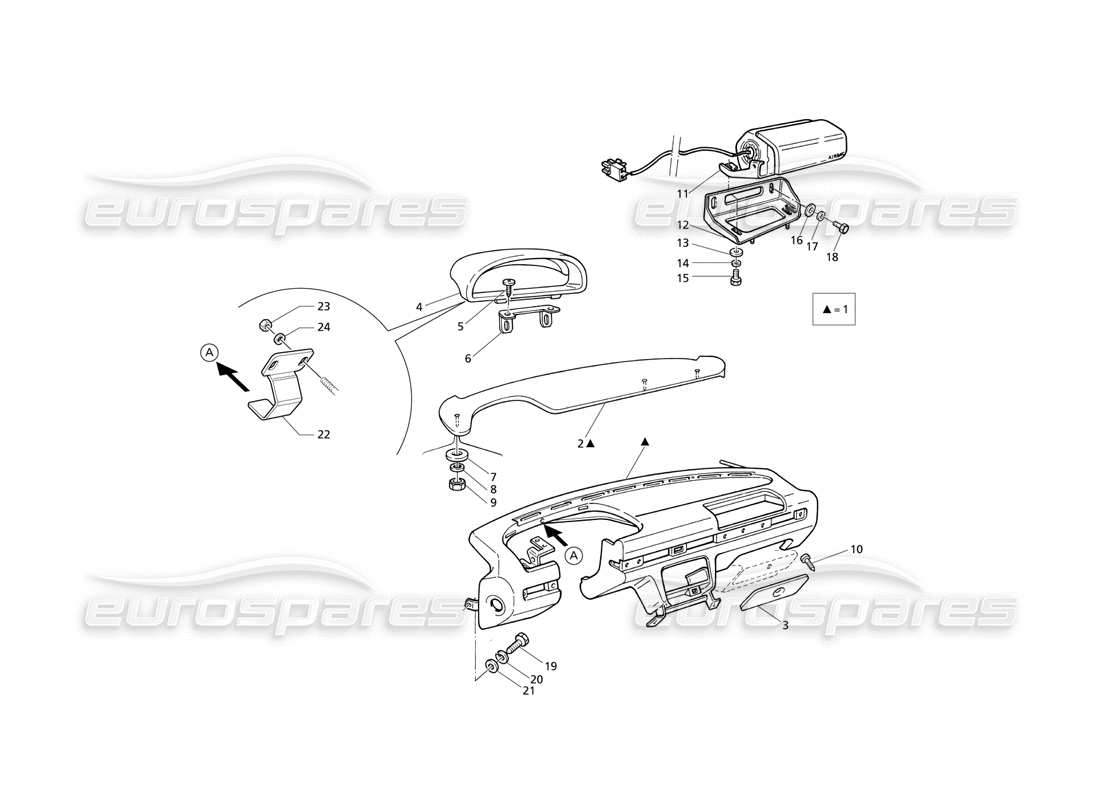

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 9819001..
                                        UPHOLSTERED DASHBOARD LH DRIVE
                                        - in the order, add the two digits of leather color or - alcantara code
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 9819003..
                                        DASHBOARD UPPER TRIMMING (LH DRIVE)
                                        - in the order, add the two digits of leather color or - alcantara code
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 9819008..
                                        GLOVE BOX TRIMMING
                                        - in the order, add the two digits of leather color or - alcantara code
                                        # 004
                                        MPN: 9819007..
                                        CLUSTER DOME
                                        - in the order, add the two digits of leather color or - alcantara code
                                        # 005
                                        MPN: 119935190
                                        SCREW
                                        from £1.10
                                        from £1.10
                                        # 006
                                        MPN: 372300171
                                        BRACKET
                                        from £2.87
                                        from £2.87
                                        # 007
                                        MPN: 314520406
                                        SHIM
                                        from £0.71
                                        from £0.71
                                        # 008
                                        MPN: 136110055
                                        WASHER
                                        from £0.79
                                        from £0.79
                                        # 009
                                        MPN: 14084011
                                        NUT
                                        from £0.52
                                        from £0.52
                                        # 010
                                        MPN: 119935095
                                        SCREW
                                        from £1.10
                                        from £1.10
                                        # 011
                                        MPN: 9819005..
                                        PASSENGER SIDE AIRBAG (LH DRIVE)
                                        - in the order, add the two digits of leather color or - alcantara code
                                        Supersession
                                        Supersession
                                        # 012
                                        MPN: 372308465
                                        PASSENGER AIRBAG SUPPORT LH DRIVE
                                        from £51.64
                                        from £51.64
                                        # 013
                                        MPN: 163020080
                                        FLAT WASHER
                                        from £1.10
                                        from £1.10
                                        # 014
                                        MPN: 12601270
                                        SPRING WASHER
                                        Supersession
                                        Supersession
                                        This part replaces part number 10571570
                                        # 015
                                        MPN: 10902121
                                        SCREW
                                        from £0.71
                                        from £0.71
                                        # 016
                                        MPN: 136110110
                                        FLAT WASHER
                                        from £2.22
                                        from £2.22
                                        # 017
                                        MPN: 10571779
                                        SPRING WASHER
                                        from £0.47
                                        from £0.47
                                        # 018
                                        MPN: 100708020
                                        SCREW
                                        from £0.71
                                        from £0.71
                                        # 019
                                        MPN: 96890
                                        SCREW
                                        from £2.24
                                        from £2.24
                                        # 020
                                        MPN: 10571779
                                        SPRING WASHER
                                        from £0.47
                                        from £0.47
                                        # 021
                                        MPN: 12645021
                                        SHIM
                                        from £1.66
                                        from £1.66
                                        # 022
                                        MPN: 372380170
                                        BRACKET
                                        from £2.37
                                        from £2.37
                                        # 023
                                        MPN: 10794011
                                        NUT
                                        from £0.26
                                        from £0.26
                                        This part replaces part number 10794040
                                        # 024
                                        MPN: 12642801
                                        WASHER
                                        from £0.47
                                        from £0.47
