064.2 - Inner Trims: Roof

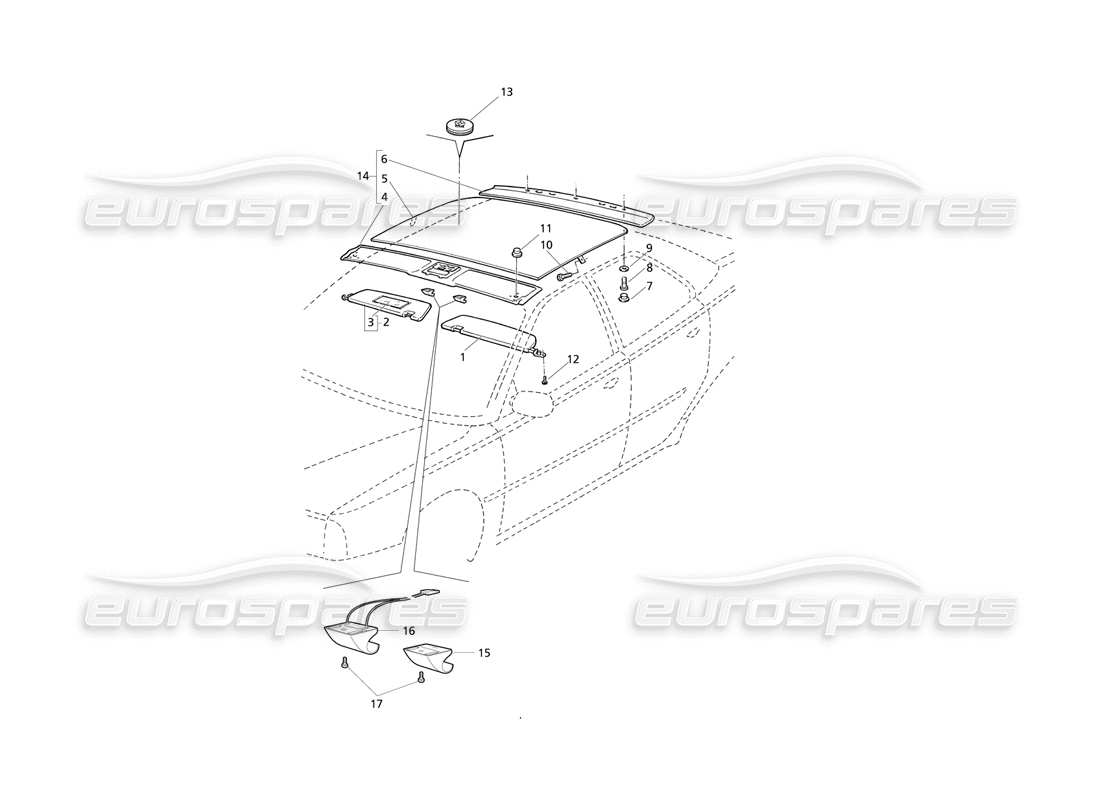

Maserati QTP V6 Evoluzione Inner Trims: Roof Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9819015..
LH SUN VISOR (ALCANT.) LH DRIVE
- in the order, add the two digits of leather color or - alcantara code
Supersession
Supersession
# 002
MPN: 9819016..
RH SUN VISOR (ALCANT.) LH DRIVE
- in the order, add the two digits of leather color or - alcantara code
Supersession
Supersession
# 003
MPN: 368101197
Vanity mirror
from £9.55
from £9.55
# 004
MPN: 9819019..
FRONT CROSS MEMBER
- in the order, add the two digits of leather color or - alcantara code
Supersession
Supersession
# 005
MPN: 9819020..
ROOF (ALCANT.)
- in the order, add the two digits of leather color or - alcantara code
Supersession
Supersession
# 006
MPN: 9819021..
REAR CROSS MEMBER
- in the order, add the two digits of leather color or - alcantara code
Supersession
Supersession
# 007
MPN: 378305349
CAP
from £0.69
from £0.69
# 008
MPN: 15670007
SCREW
from £0.85
from £0.85
# 009
MPN: 14496400
WASHER
from £0.85
from £0.85
# 010
MPN: 119148130
SCREW
from £0.85
from £0.85
# 011
MPN: 318320341
NUT SCREW
- As necessary
from £0.69
from £0.69
This part replaces part number 14229280
# 012
MPN: 15958007
SCREW
- As necessary
from £1.65
from £1.65
# 013
MPN: 378301733
CEILING TRIM SECURING ELEMENT
from £0.69
from £0.69
# 014
MPN: 9819014..
CEILING ASSY
- in the order, add the two digits of leather color or - alcantara code
from £309.75
from £309.75
# 015
MPN: 368100301
DRIVER'S SIDE SUNSHADE HOOK
from £19.01
from £19.01
# 016
MPN: 368100302
PASSENGER SIDE SUNSHADE HOOK
from £19.86
from £19.86
# 017
MPN: 15670007
SELF THREADING SCREW
from £0.85
from £0.85
