071 - Automatic Air Conditioner Assy

Maserati QTP V6 Evoluzione Automatic Air Conditioner Assy Parts Diagram

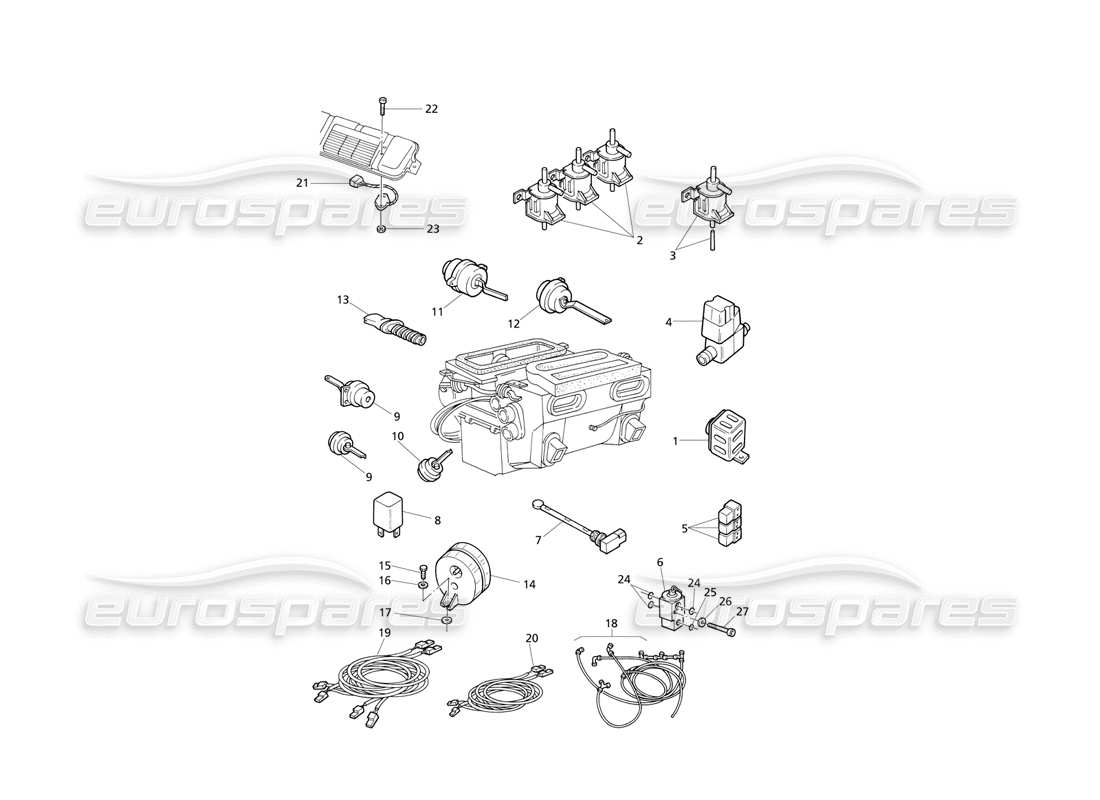

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315520143
RESISTANCE
from £17.57
from £17.57
# 002
MPN: 315520207
SOLENOID VALVE
from £42.17
from £42.17
# 003
MPN: 375580207
SOLENOID VALVE W. REDUCTOR
from £0.47
from £0.47
# 004
MPN: 315522144
MOTORISED COCK
from £405.53
from £405.53
# 005
MPN: 30331137
RELAY
Supersession
Supersession
# 006
MPN: 375530166
BLOCK EXPANSION VALVE
from £343.34
from £343.34
# 007
MPN: 315520206
MIXED AIR TEMPERATURE SENSOR
from £19.24
from £19.24
# 008
MPN: 46409709
RELAY
from £12.81
from £12.81
# 009
MPN: 315520159
ACTUATOR
from £13.10
from £13.10
# 010
MPN: 315520158
ACTUATOR
from £9.40
from £9.40
# 011
MPN: 315520160
ACTUATOR
from £3.92
from £3.92
# 012
MPN: 315520162
ACTUATOR
from £4.66
from £4.66
# 013
MPN: 315520017
DRAIN PIPE
from £1.80
from £1.80
# 014
MPN: 330328400
VACUUM CILYNDER
from £9.36
from £9.36
# 015
MPN: 15958807
BOLT
from £1.10
from £1.10
This part replaces part number 15958701
# 016
MPN: 169020005
WASHER
from £1.10
from £1.10
# 017
MPN: 312520511
GASKET
from £1.72
from £1.72
# 018
MPN: 315520208
PNEUMATIC SYSTEM
from £10.43
from £10.43
# 019
MPN: 375580209
WIRING
from £3.68
from £3.68
# 020
MPN: 375580210
harness
from £108.29
from £108.29
# 021
MPN: 315520196
EXTERNAL AIR TEMPERATURE SENSOR
from £14.00
from £14.00
# 022
MPN: 112804020
SCREW
# 023
MPN: 14084011
NUT
from £0.54
from £0.54
# 024
MPN: 375500458
GROMMET
from £5.41
from £5.41
# 025
MPN: 375500457
GROMMET
from £3.69
from £3.69
# 026
MPN: 12604279
WASHER
from £0.47
from £0.47
# 027
MPN: 14304821
SCREW
from £0.53
from £0.53
