maserati qtp v8 (1998) gaskets and oil seals for block overhaul parts diagram

002 - gaskets and oil seals for block overhaul

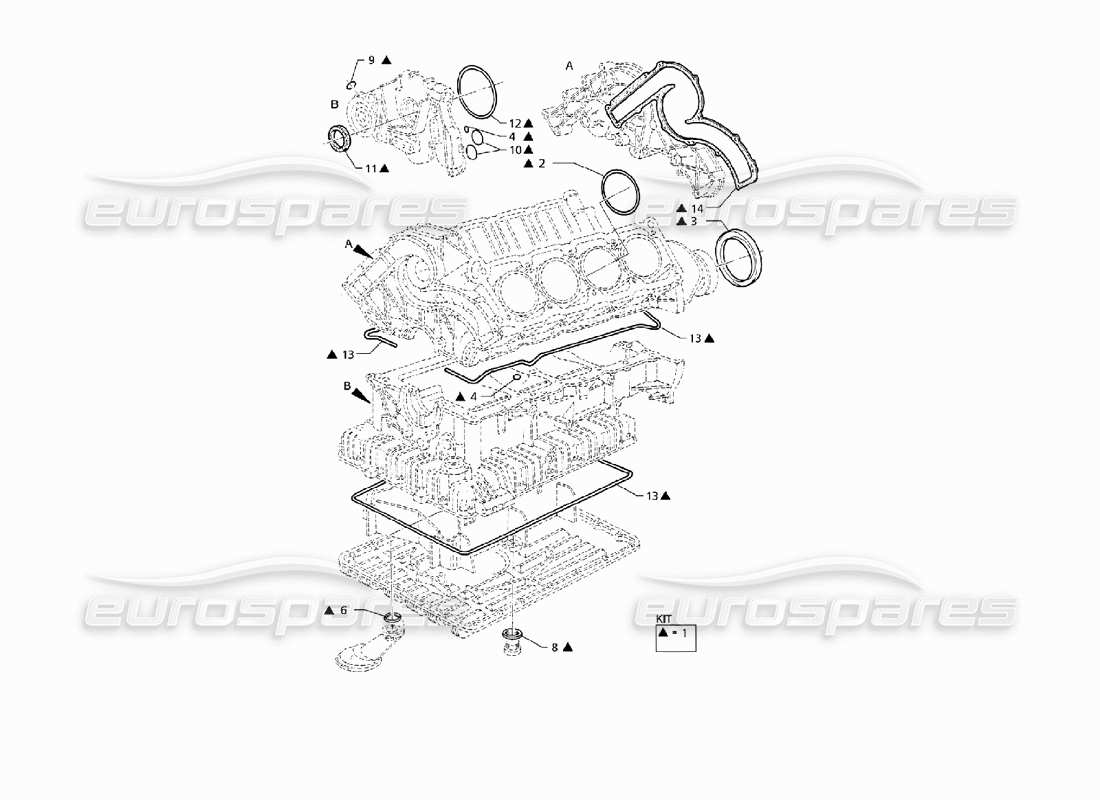

Maserati QTP V8 (1998) Gaskets and Oil Seals for Block Overhaul Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 390450008
                          BOTTOM END GASKET SET
                          from £233.80
                          from £233.80
                          # 002
                          MPN: 390650422
                          CYLINDER CAMS RUBBER GASKET
                          from £5.10
                          from £5.10
                          # 003
                          MPN: 585412800
                          SEALING RING
                          from £27.43
                          from £27.43
                          This part replaces part number 311420104
                          # 004
                          MPN: 14452981
                          SEALING RING
                          from £0.77
                          from £0.77
                          # 008
                          MPN: 10262260
                          GASKET
                          from £2.85
                          from £2.85
                          This part replaces part number 310420304
                          # 009
                          MPN: 319220424
                          COPPER WASHER
                          from £1.70
                          from £1.70
                          # 010
                          MPN: 14454181
                          SEALING RING
                          from £1.16
                          from £1.16
                          # 011
                          MPN: 311020368
                          SEALING RING
                          from £8.25
                          from £8.25
                          This part replaces part number 190400351
                          # 012
                          MPN: 14465881
                          SEAL RING
                          from £4.64
                          from £4.64
                          # 013
                          MPN: 97470
                          RUBBER GASKET
                          from £43.68
                          from £43.68
                          This part replaces part number 311053321 - and 1 more. Click to view details
                          # 014
                          MPN: 479046200
                          WATER PUMP GASKET
                          from £16.69
                          from £16.69
