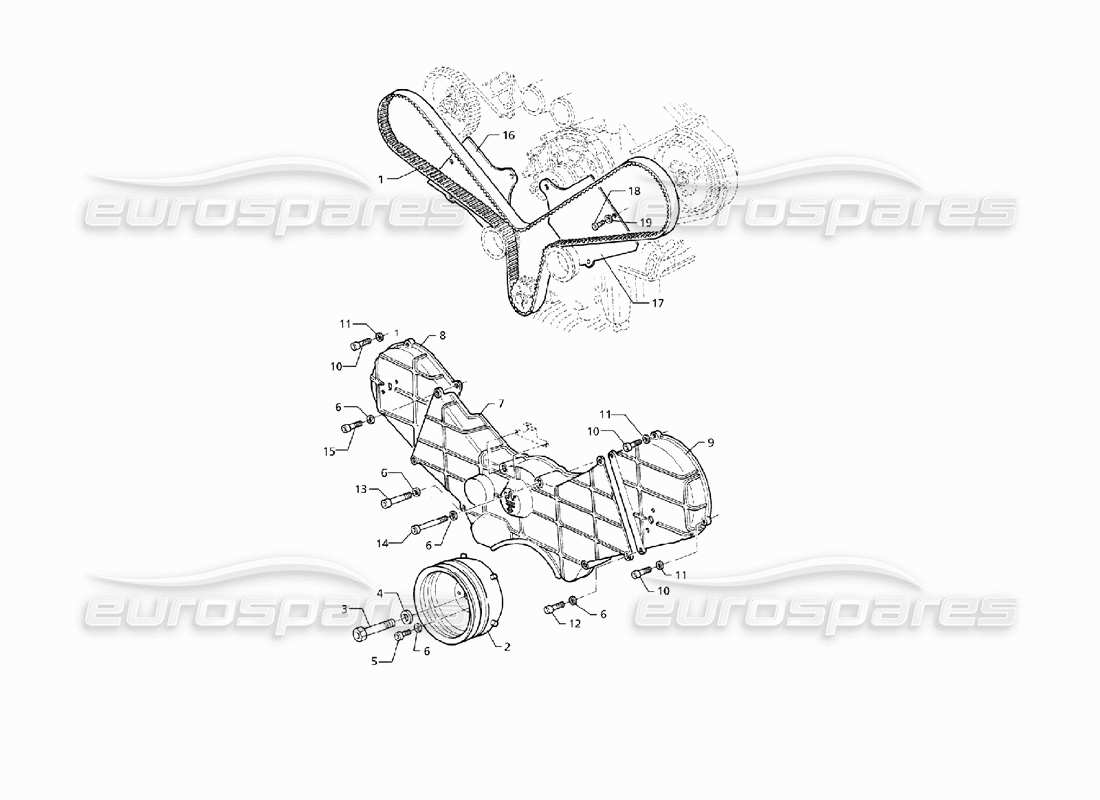

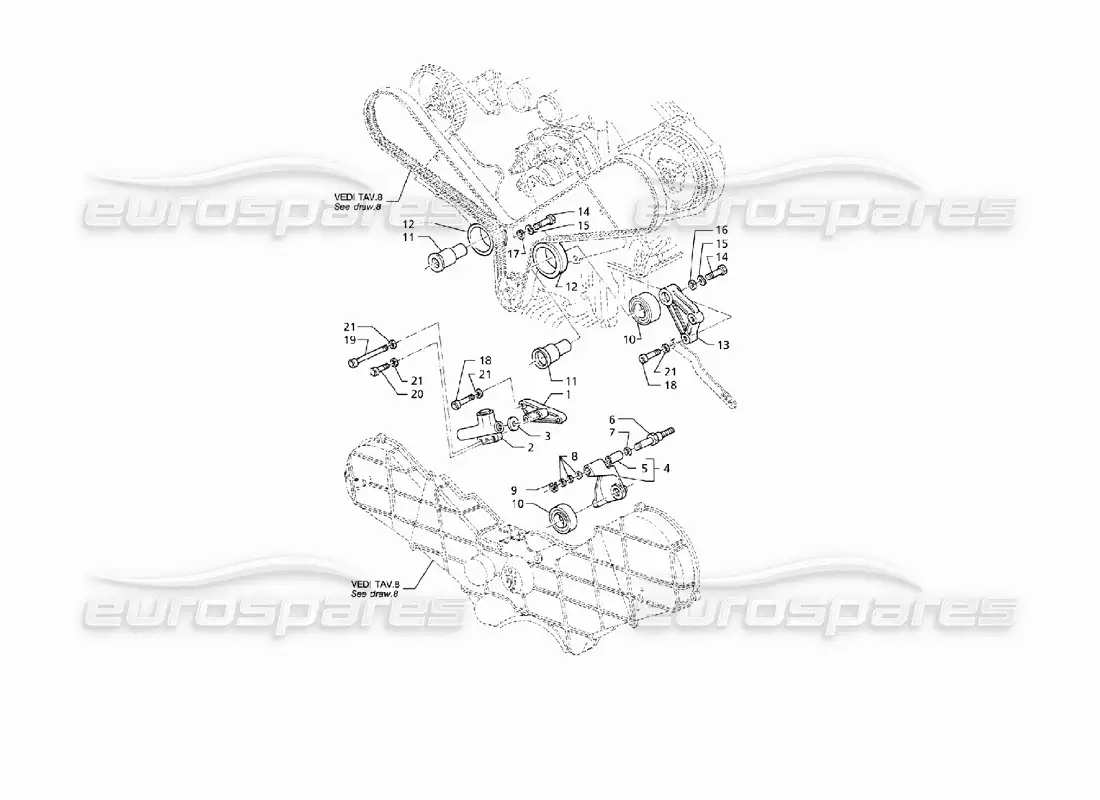

Maserati QTP V8 (1998) Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

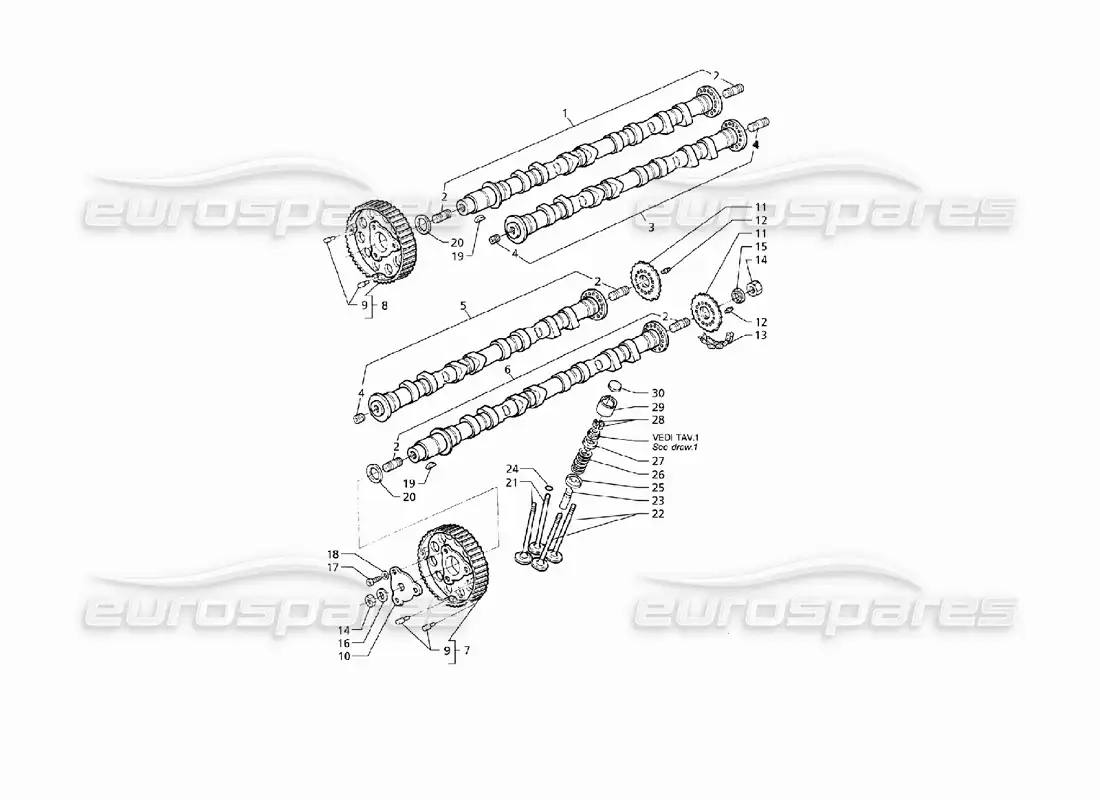

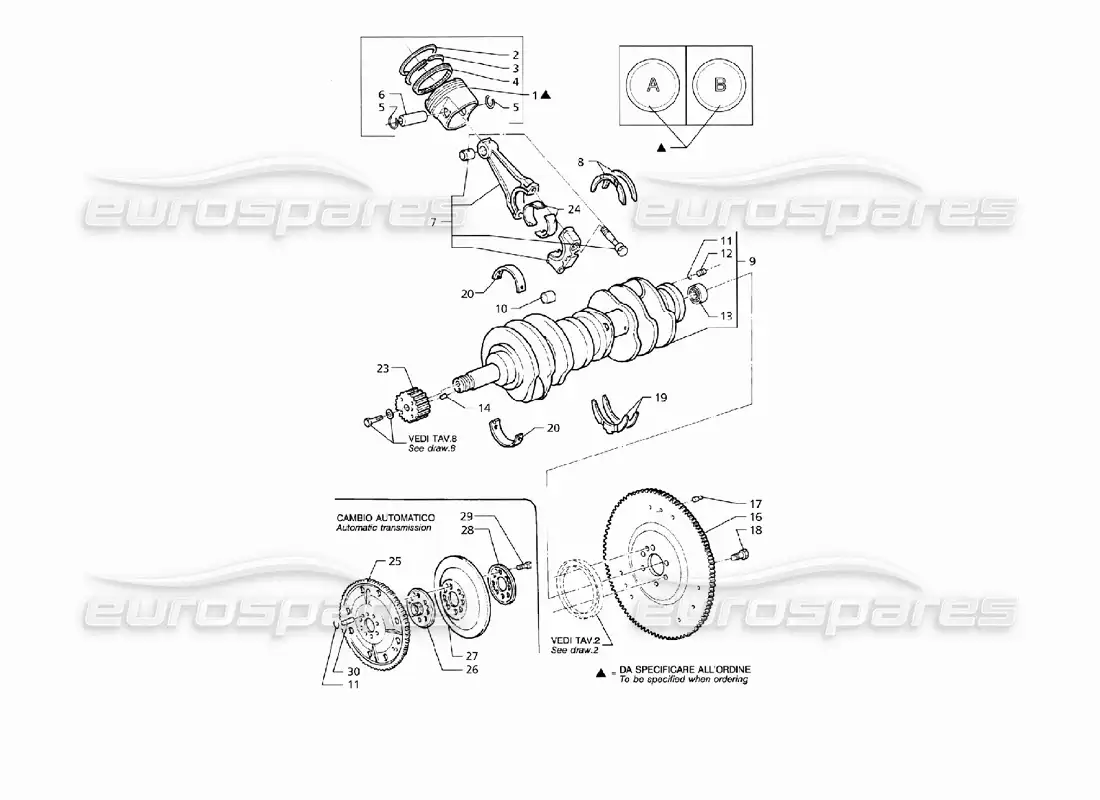

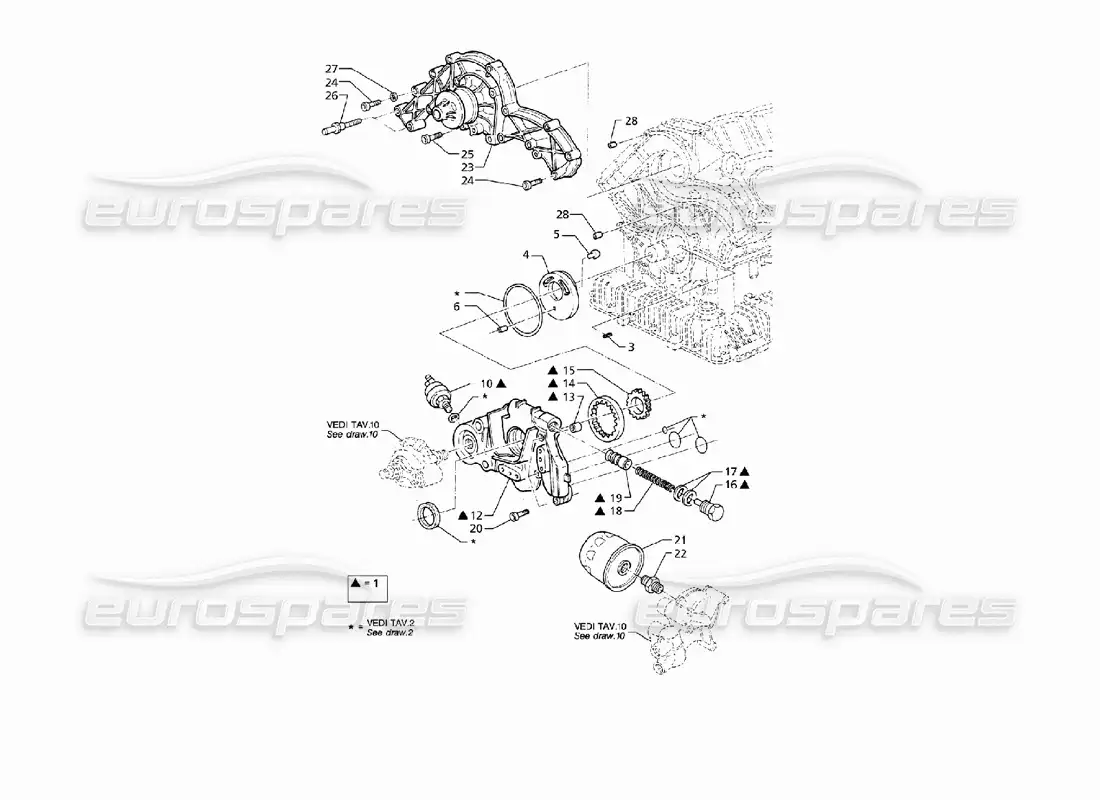

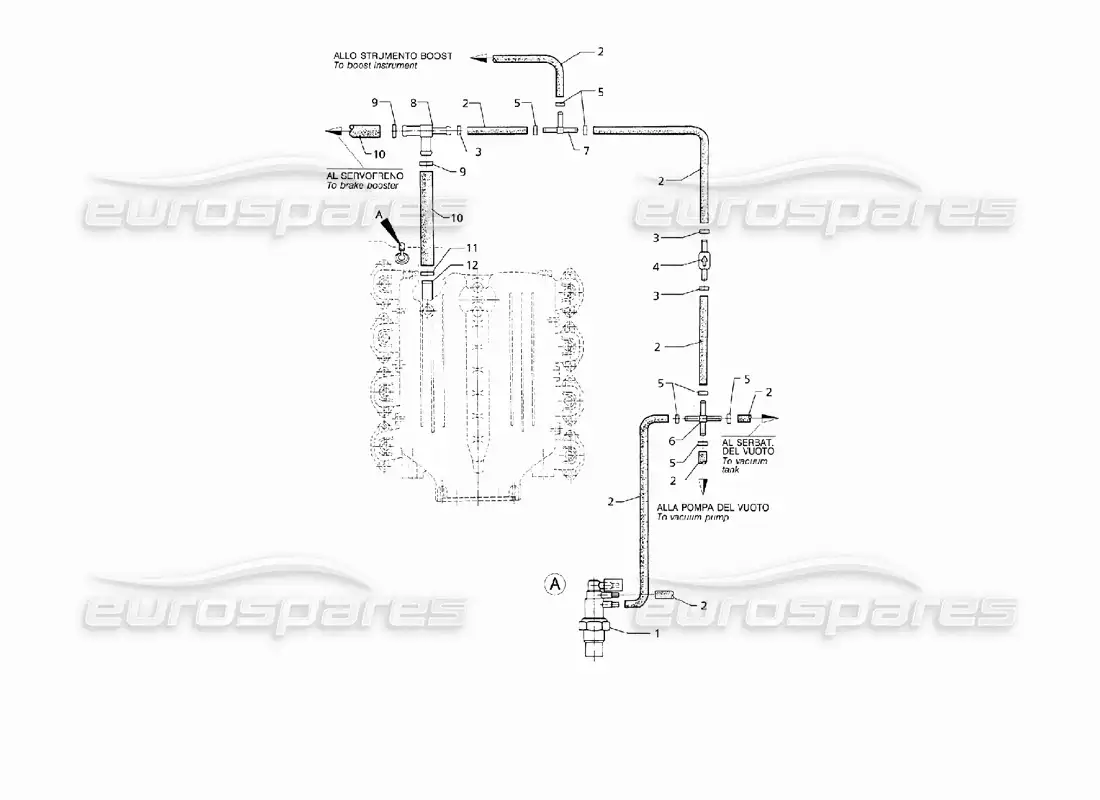

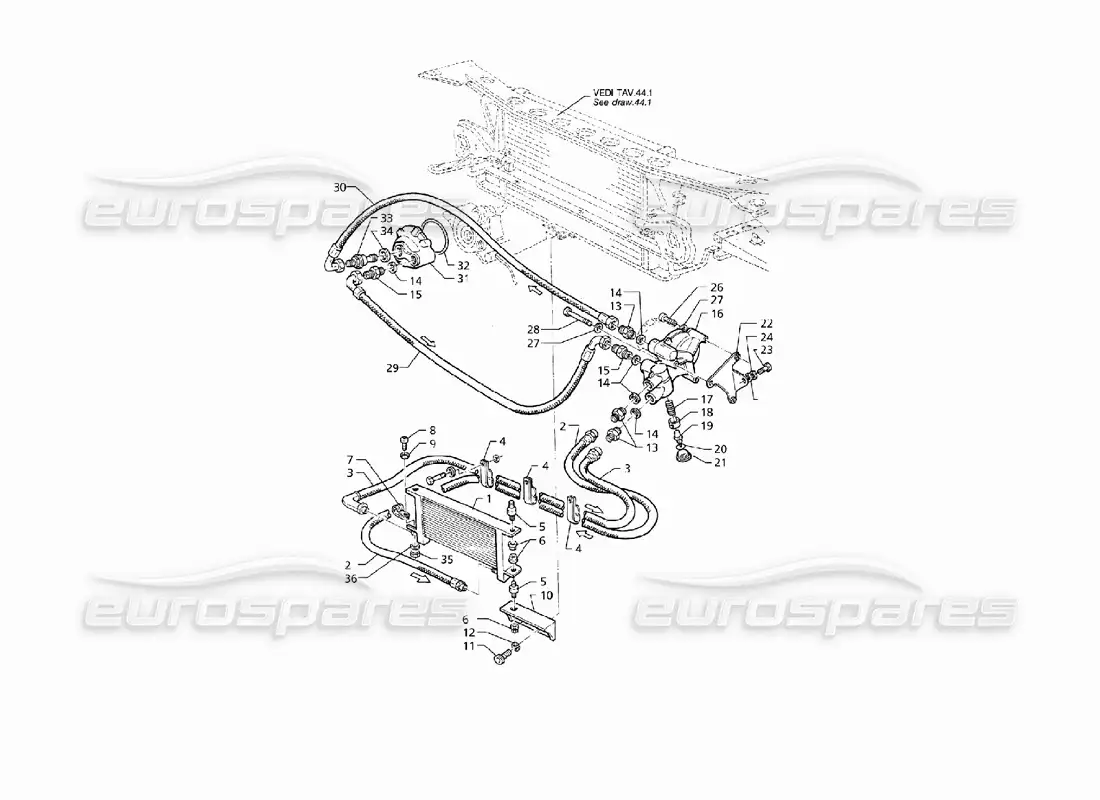

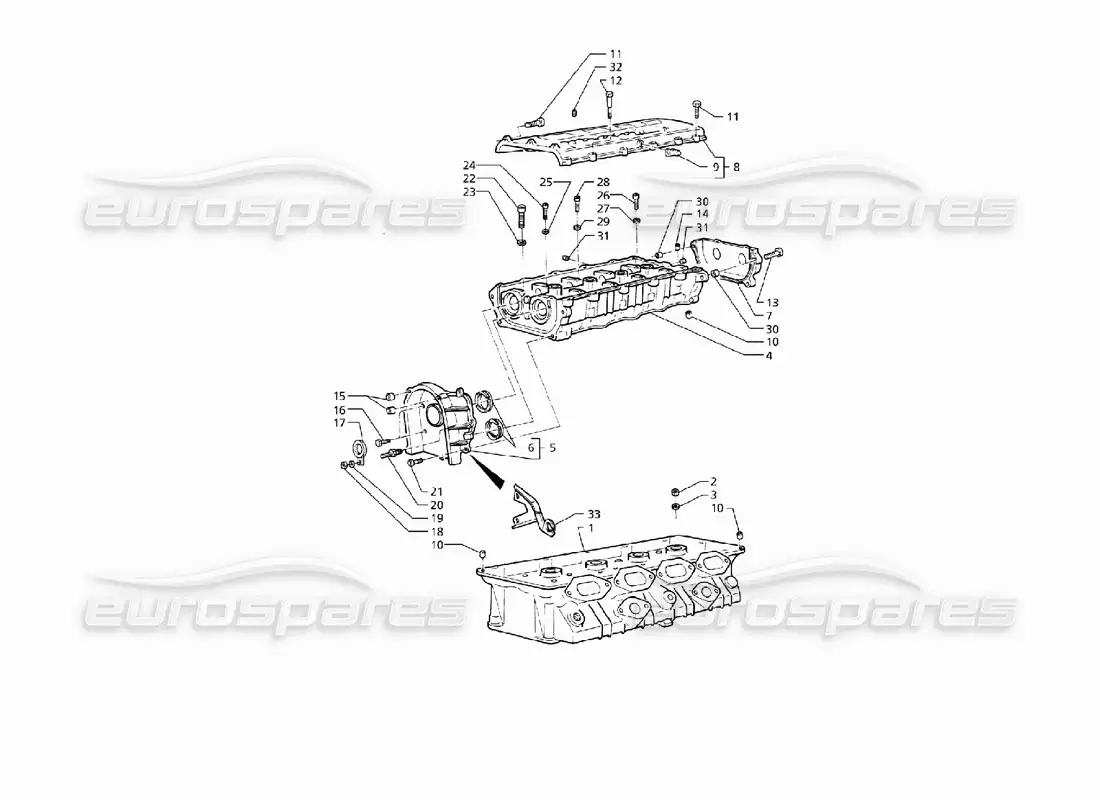

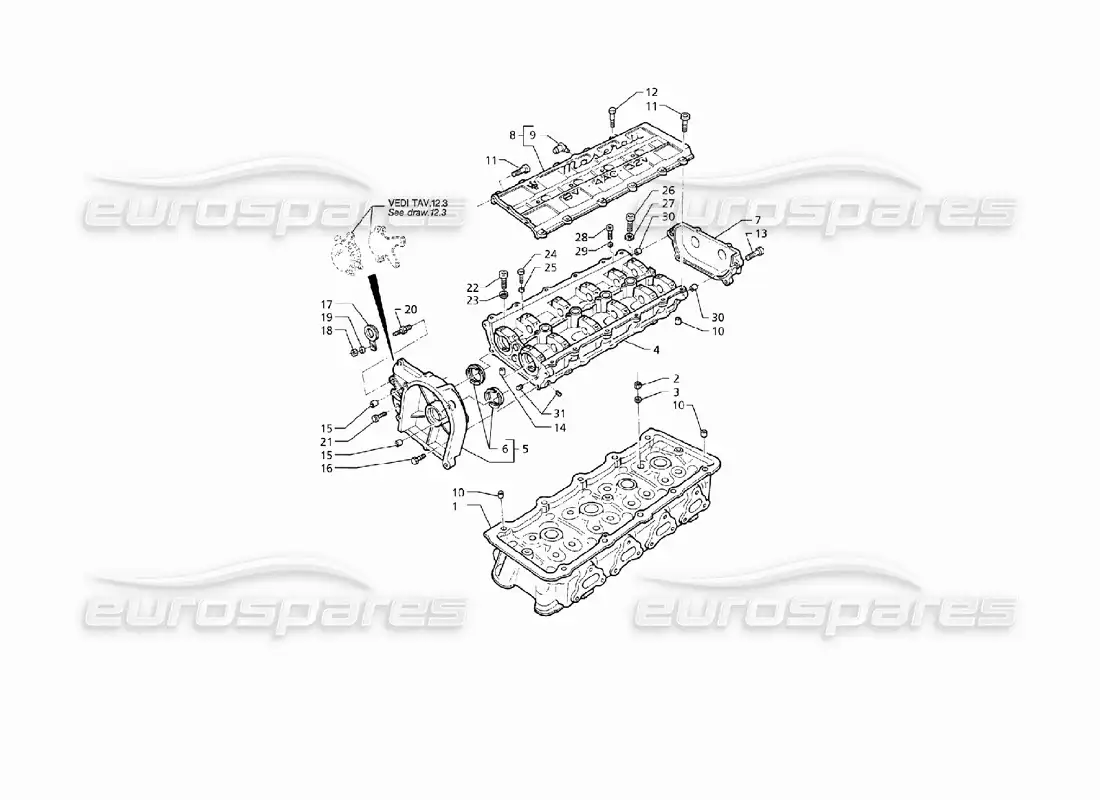

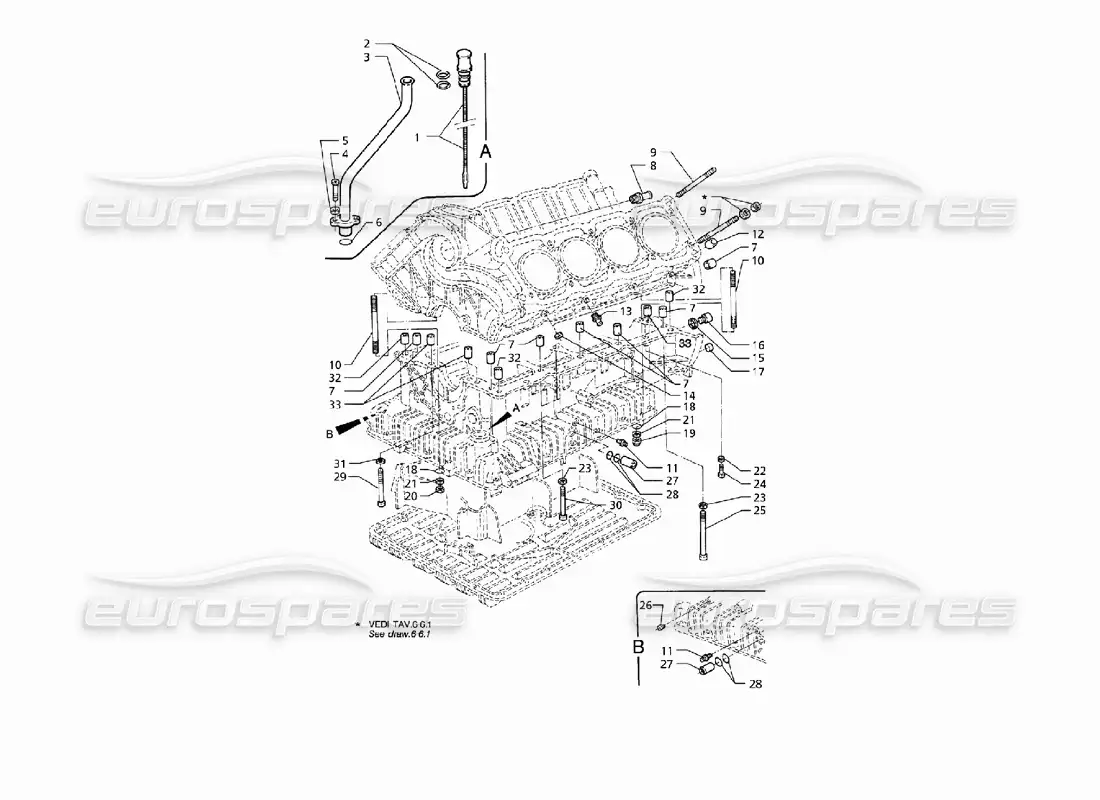

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
Part in stock
Available in a part set
Part supersession in stock
Available in a part set to order (subject to availability)
Part available to order (subject to availability)
Available in a part kit
                                        Part number
                                        # 001
                                        MPN: 98025
                                        TIMING BELT
                                        from £33.60
                                        from £33.60
                                        This part replaces part number 391050341
                                        # 002
                                        MPN: 479024104
                                        # 006
                                        MPN: 312220411
                                        from £0.47
                                        from £0.47
                                        # 007
                                        MPN: 391650300
                                        BELT CENTRE COVER
                                        # 008
                                        MPN: 479002601
                                        BELT RH COVER
                                        from £16.63
                                        from £16.63
                                        # 009
                                        MPN: 479007300
                                        BELT LH COVER
                                        from £16.48
                                        from £16.48
                                        # 010
                                        MPN: 108006025
                                        ALLEN SCREW L=25 MM
                                        # 011
                                        MPN: 95564
                                        from £1.31
                                        from £1.31
                                        # 012
                                        MPN: 81258
                                        ALLEN SCREW L=40 MM
                                        # 013
                                        MPN: 95988
                                        ALLEN SCREW L=50 MM
                                        # 014
                                        MPN: 14304821
                                        ALLEN SCREW L=55 MM
                                        from £0.53
                                        from £0.53
                                        # 015
                                        MPN: 95775
                                        ALLEN SCREW L=35 MM
                                        # 018
                                        MPN: 108006014
                                        ALLEN SCREW L=14 MM
                                        # 019
                                        MPN: 311620303
                                        from £1.07
                                        from £1.07
