010 - Engine Oil Cooling

Maserati QTP V8 (1998) Engine Oil Cooling Parts Diagram

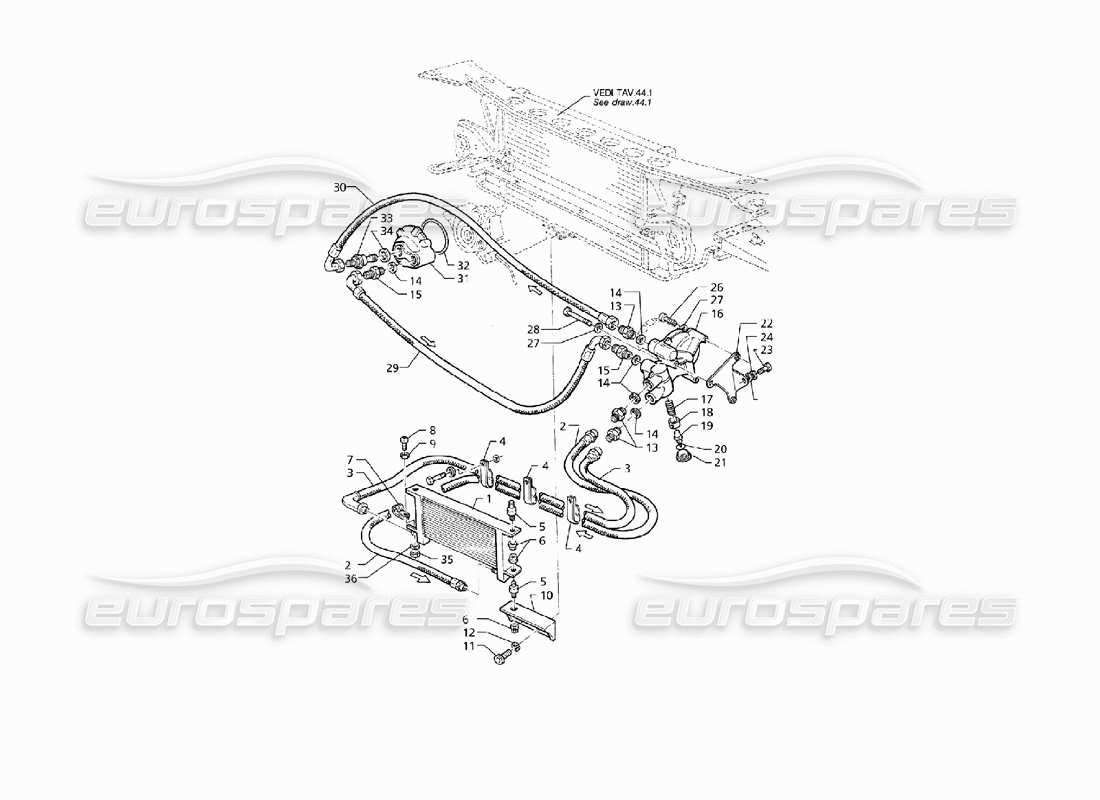

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 372831108
                                                                          ENGINE OIL RADIATOR
                                                                          from £300.80
                                                                          from £300.80
                                                                          # 002
                                                                          MPN: 372831104
                                                                          OIL DELIVERY TO RADIATOR TUBE
                                                                          from £196.47
                                                                          from £196.47
                                                                          # 003
                                                                          MPN: 372831105
                                                                          OIL RETURN FROM RADIATOR TUBE
                                                                          from £188.94
                                                                          from £188.94
                                                                          # 004
                                                                          MPN: 97598
                                                                          DOUBLE CLAMP
                                                                          from £7.73
                                                                          from £7.73
                                                                          # 005
                                                                          MPN: 319220139
                                                                          VIBRATION-PROOF SUPPORT
                                                                          from £3.07
                                                                          from £3.07
                                                                          # 009
                                                                          MPN: 163020060
                                                                          WASHER
                                                                          from £2.55
                                                                          from £2.55
                                                                          # 010
                                                                          MPN: 371330395
                                                                          BRACKET
                                                                          from £4.64
                                                                          from £4.64
                                                                          # 013
                                                                          MPN: 372830306
                                                                          UNION
                                                                          from £7.48
                                                                          from £7.48
                                                                          # 014
                                                                          MPN: 97762
                                                                          GASKET
                                                                          from £4.17
                                                                          from £4.17
                                                                          # 015
                                                                          MPN: 362802306
                                                                          UNION
                                                                          from £10.97
                                                                          from £10.97
                                                                          # 016
                                                                          MPN: 479041200
                                                                          FILTER HOLDER
                                                                          from £53.24
                                                                          from £53.24
                                                                          # 017
                                                                          MPN: 571044600
                                                                          SPRING
                                                                          from £1.41
                                                                          from £1.41
                                                                          # 018
                                                                          MPN: 571044200
                                                                          VALVE
                                                                          from £6.13
                                                                          from £6.13
                                                                          # 019
                                                                          MPN: 571044100
                                                                          BULB
                                                                          from £13.60
                                                                          from £13.60
                                                                          # 020
                                                                          MPN: 571044500
                                                                          GASKET
                                                                          from £1.93
                                                                          from £1.93
                                                                          # 021
                                                                          MPN: 571044400
                                                                          SCREW PLUG
                                                                          from £8.65
                                                                          from £8.65
                                                                          # 022
                                                                          MPN: 371331239
                                                                          PLATE SEC. FILTER HOLDER
                                                                          from £5.56
                                                                          from £5.56
                                                                          This part replaces part number 391350239
                                                                          # 028
                                                                          MPN: 97005
                                                                          ALLEN SCREW
                                                                          # 029
                                                                          MPN: 392850110
                                                                          OIL DELIVERY TO FILTER HOLDER TUBE
                                                                          from £141.75
                                                                          from £141.75
                                                                          # 030
                                                                          MPN: 372831114
                                                                          OIL RETURN FROM FILTER HOLDER TUBE
                                                                          from £50.52
                                                                          from £50.52
                                                                          # 031
                                                                          MPN: 479047500
                                                                          OIL PUMP COVER
                                                                          from £29.14
                                                                          from £29.14

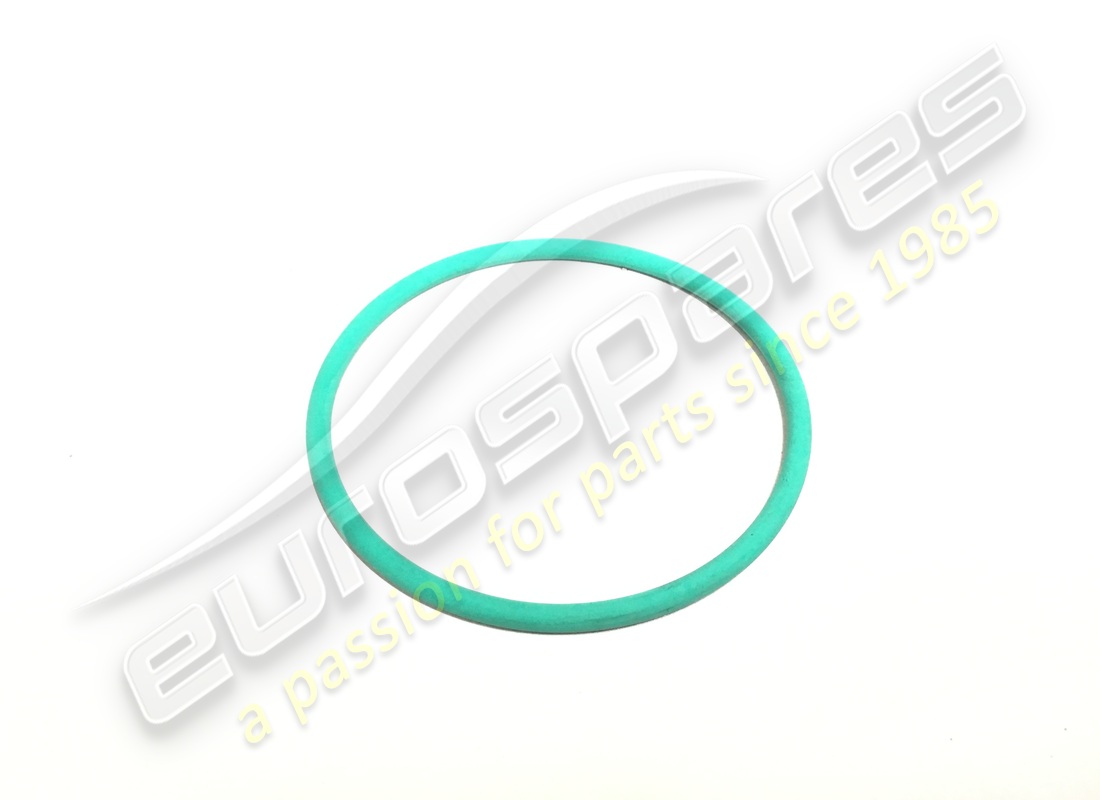

                                                                          # 032
                                                                          MPN: 14464981
                                                                          RUBBER GASKET
                                                                          from £3.64
                                                                          from £3.64
                                                                          # 033
                                                                          MPN: 479041301
                                                                          UNION
                                                                          from £51.00
                                                                          from £51.00
                                                                          # 036
                                                                          MPN: 169020406
                                                                          WASHER
                                                                          from £0.78
                                                                          from £0.78
