012.2 - turboblowers lubrication

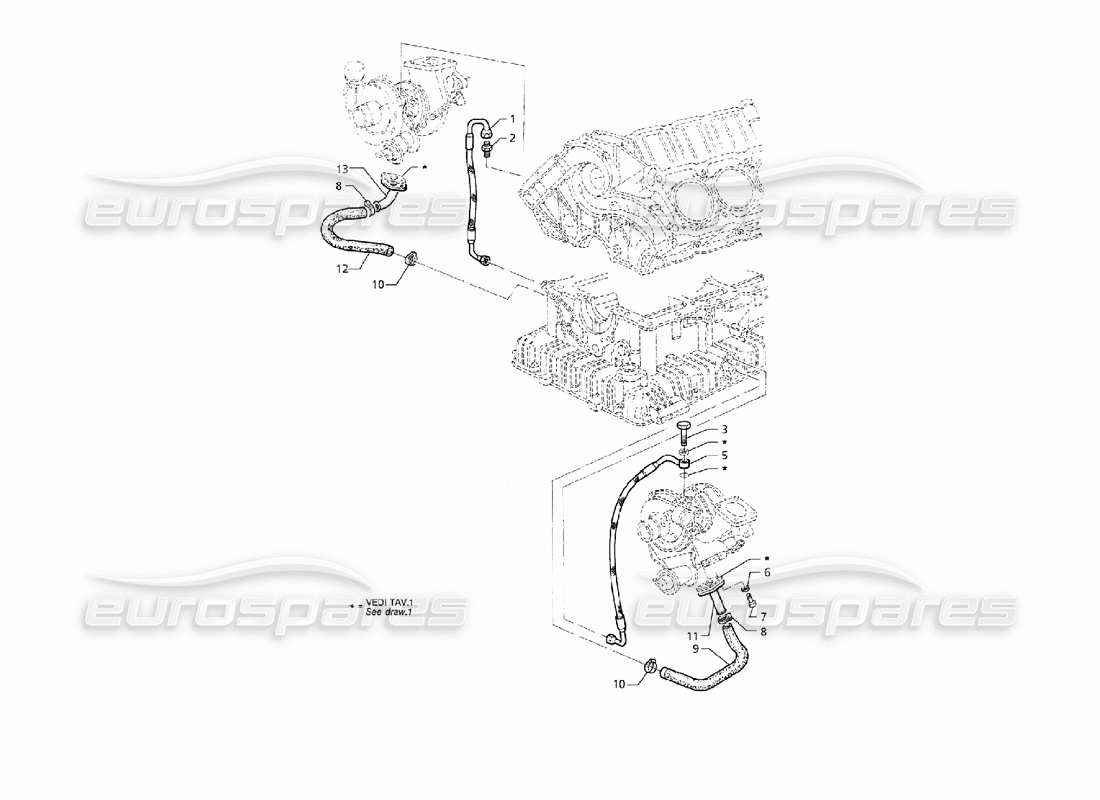

Maserati QTP V8 (1998) Turboblowers Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 392050022
                          RH OIL-TO-TURBO DELIVERY PIPE
                          # 002
                          MPN: 479369900
                          UNION
                          from £3.93
                          from £3.93
                          # 003
                          MPN: 578363700
                          UNION SCREW
                          from £13.08
                          from £13.08
                          # 005
                          MPN: 578949100
                          LH OIL-TO-TURBO DELIVERY PIPE
                          from £93.79
                          from £93.79
                          # 008
                          MPN: 312020410
                          CLAMP
                          from £2.10
                          from £2.10
                          # 009
                          MPN: 452364402
                          LH TURBO OIL DRAINAGE SLEEVE
                          from £67.69
                          from £67.69
                          This part replaces part number 312020105
                          # 010
                          MPN: 77520
                          CLAMP
                          from £2.31
                          from £2.31
                          # 011
                          MPN: 342000115
                          LH TURBO OIL OUTLET CONNECTOR
                          # 012
                          MPN: 342000406
                          RH TURBO OIL DRAINAGE SLEEVE
                          # 013
                          MPN: 578366800
                          RH TURBO OIL OUTLET CONNECTION
                          from £15.15
                          from £15.15
